EK-L Series Bench Scale

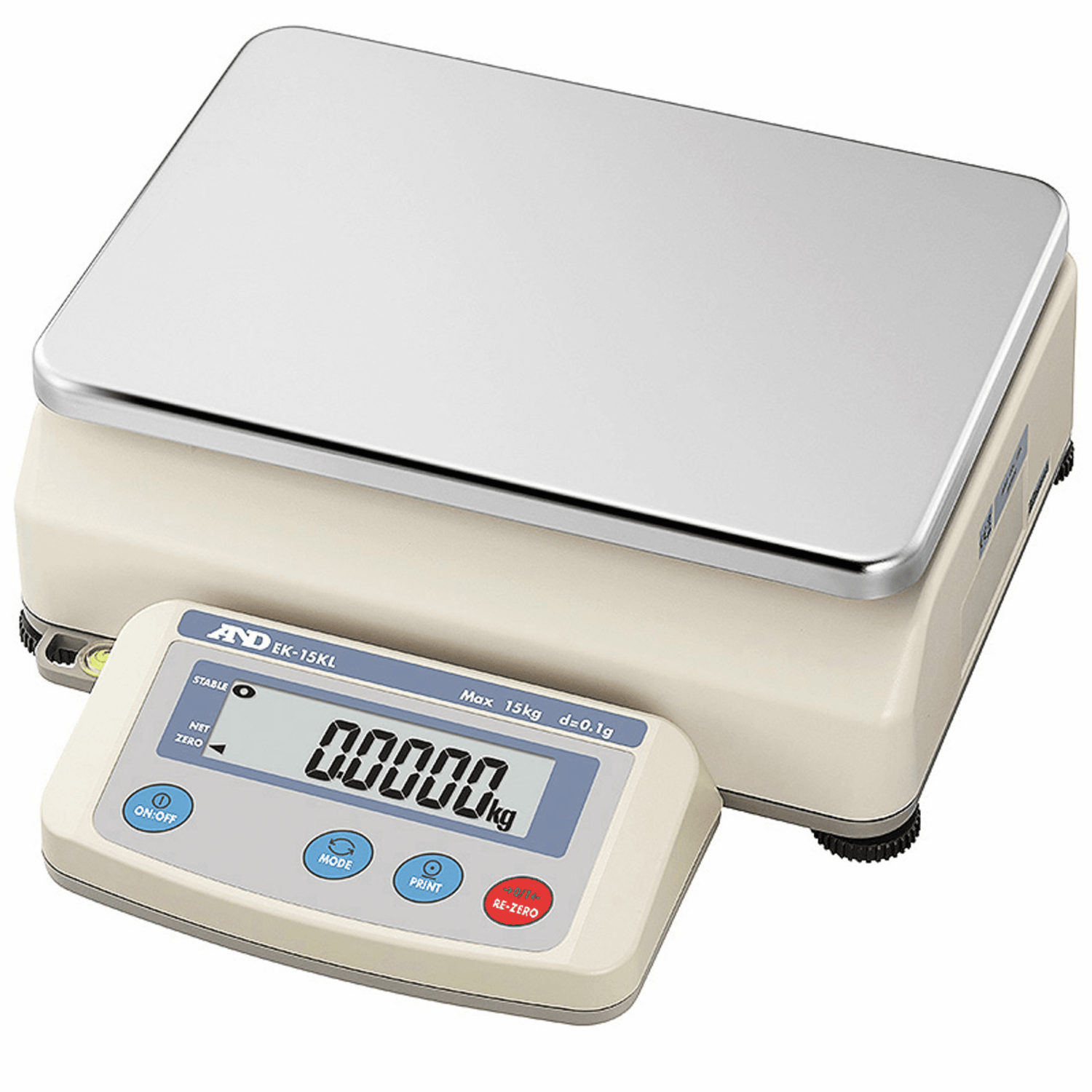

A&D EK-L Series Precision Bench Scale


Standard Features

  •  Large (300 × 210 mm) weighing pan for efficient measurements of bulky objects or quantities
  • Hygienic and scratch-resistant, stainless steel (SUS430) weighing pan cover
  •  Easy-to-read LCD display with clear, white backlight (22 mm character height)
  • Multiple weighing units: g, kg, oz, lb, ozt, in addition to pcs (counting mode) and % (percent mode)*2
  • Comparator, display hold, auto power OFF functions
  • Security ring for wire-locking the scale to prevent theft
  •  Data output to a PC, printer, etc., via RS-232C interface
  • Operation with either AC adapter or optional rechargeable battery



 Model  EK-15KL EK-30KL
Weighing capacity  15 kg  3kg        |        30kg
Minimum weighing value  0.1g 0.1g        |           1g
Repeatability (standard deviation)  0.3g 0.3g        |           1g
Linearity  ±0.6 g ±0.6 g     |          ±1 g


 Sensitivity drift  ±20 ppm/°C (10 to 30°C/50 to 86°F)

Counting mode

Min. unit weight*3

No. of samples



5, 10, 25, 50 or 100 pieces

Percent mode

Min. % display

Min. 100% weight




Operating temperature

10 to 40°C/50 to 104°F, 85% RH or less (no condensation)
Battery life (on a full charge) Approx. 100 hours (at 25°C with backlight off)
Weighing pan size  300 × 210 mm
Net weight  Approx. 4.2 kg       |        Approx. 4.9 kg
Calibration weight  15kg                        |                30kg
Standard accessories  AC adapter, Instruction manual
