GP Series Precision Balances
GP Series Precision Balances is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description

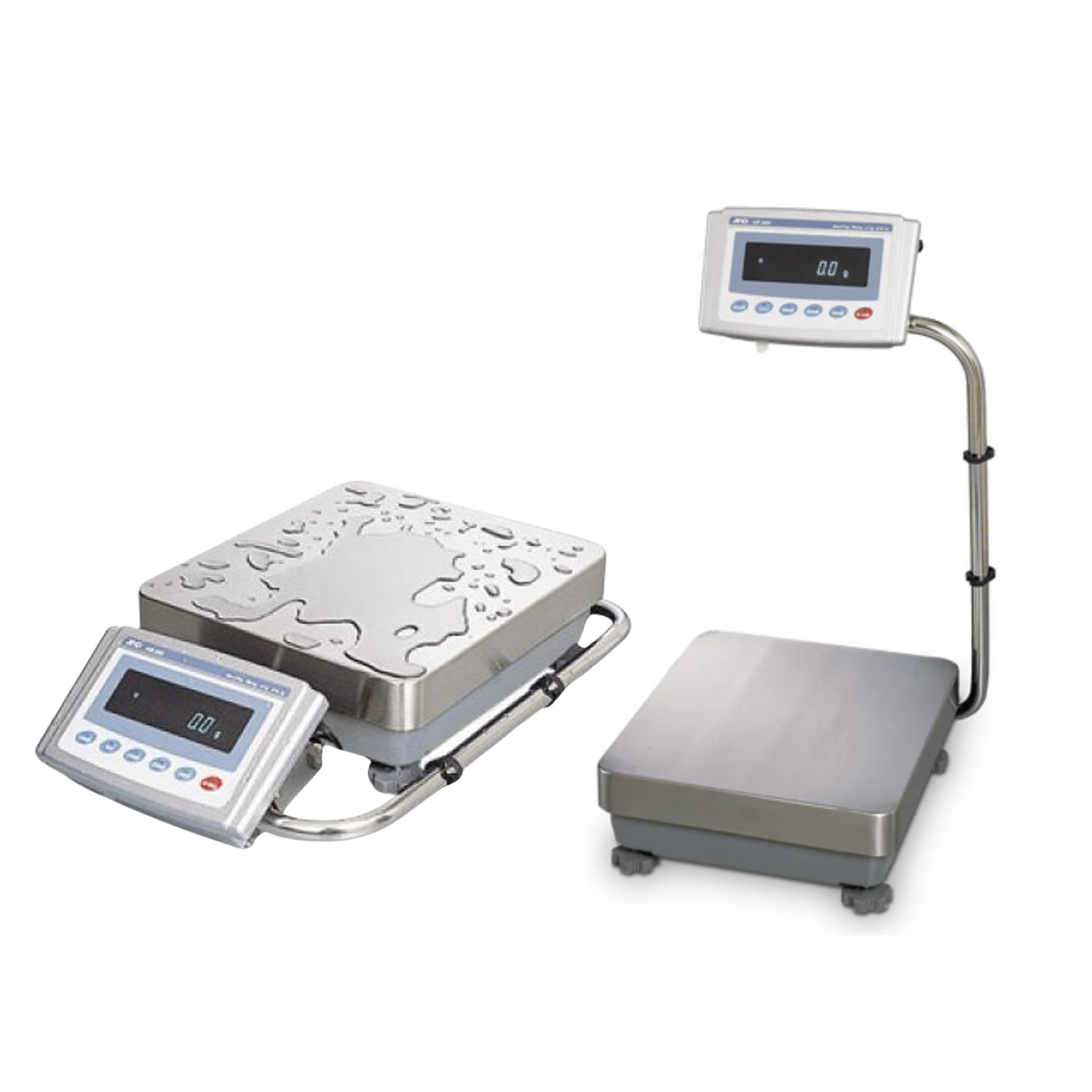

A&D GP Series Precision Balances
*Contact Our Sales Team To Receive A Quote On A A&D GP Series Precision Balance
Standard Features
- Double leveraged SHS weighing technology enhances performance accuracy up to 101kg capacity
- Versatile swing arm & detachable display make it ideal for benchtops & floor settings alike
- IP65 /NEMA4 compliant makes it resistant to dust and water
Specifications
| Models |
Weighing Capacity |
Resolution | Repeatability (Standard Deviation | Linearity |
| GP-12K | 12kg | 0.1g | 0.1g | ±0.2g |
| GP-20K | 21kg | 0.1g | 0.1g | ±0.2g |
|
GP-30K GP-30KS |
31kg |
0.1g | 0.1g | ±0.2g |
|
GP-32K GP-32KS |
31kg/6.1kg |
1g/0.1g (Smart Range) |
0.5g/0.1g | ±1g/±0.2g |
| GP-40K | 41kg | 0.5g | 0.5g | ±1g |
|
GP-60K GP-60KS |
61kg |
1g | 0.7g | ±1g |
|
GP-61K GP-61KS |
61kg |
0.1g | 0.2g | ±0.5g |
|
GP-100K GP-100KS |
101kg |
1g | 1g | ±2g |
|
GP-102K |
101kg/61kg |
10g/1g (Smart Range) |
5g/1g | ±10g/±2g |
| Stabilization Time | 1.5 seconds (TYP at FAST mode) |
| Accuracy just calibrated by internal mass | ±1.0g | ±1.5g | ±1.0g | ±1.5g | ±5g | ±3.0g | ±10g |
| Sensitivity Drift (10˚C-30˚C/50˚F-86˚F) | ±3ppm/˚C | ±5ppm/˚C | ±6ppm/˚C | ±10ppm/˚C |
| Operating Temperature | 5˚C to 40˚C (41˚F to 104˚F), 85% RH or less (No condensation) |
| Sensing Method | Super Hybrid Sensor (SHS) |
| Display Type | Vacuum Fluorescent Display (VFD) |
| Display Refresh Rates | 5 times/second or 10 times/second |
| Weighing Units and Modes | g, kg, lb, L OZ, OZ, ct, dwt, OZt, mom, TL, MS, tola, DS and % and counting PCS [ Weighing units g, ct, and dwt are not available on GP-102K] |
|
Counting Mode Minimum Unit Mass Number of Samples |
0.1g | 1g | 0.5g | 1g | 0.1g | 1g | 10g 10, 25, 50, or 100 pieces |
|
Percent Mode Min. 100% reference mass Min. 100% Display |
10g | 100g | 50g | 100g | 10g | 100g | 1000g 0.01%, 0.1%, 1% (automatically switches depending on the reference mass stored) |
| Standard Interface | RS-232C Serial Interface with Windows Communication Tools (WinCT) |
| Recommended External Calibrating Weight |
5kg | 10kg | 20kg | 20kg | 20kg | 20kg | 60kg 10kg | 20kg | 30kg | 30kg | 30kg | 30kg |80kg 40kg | 40kg | 100kg 50kg | 60kg | |
| Water & Dustproof Level | Complies with IP-65 (International Protect), covers the entire apparatus |
| Weighing Pan | Stainless steel weighing pan (Wash down type) 384mm x 344mm | 386mm x 346mm |
| Calibration | Motor-driven internal calibration mass with SHS |
| External Dimensions |
372(W)x615(D)x130(H)mm ( Note: GP-30KS is 344(W)x442(D)x130(H)mm)
373(W)x615(D)x130(H)mm ( Note: GP-100KS is 346(W)x443(D)x130(H)mm) |
| AC Adaptor | Please confirm that the adapter is correct for the local voltage and power receptacle. |
| Power Consumption | Approximately 14VA (supplied by AC adaptor) |
| Net Weight | Approximately 17kg | Approximately 18kg |
