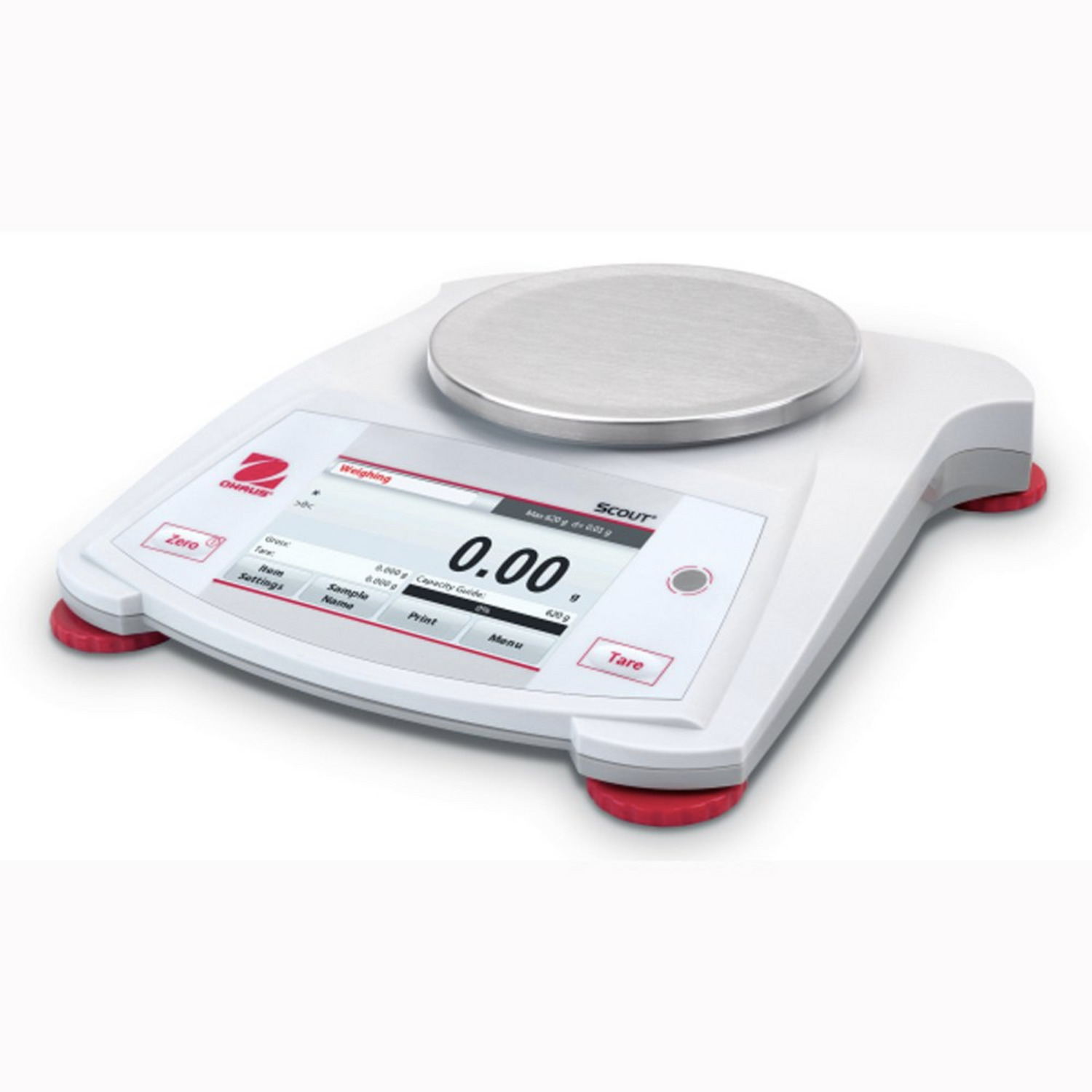

Ohaus Scout Portable Balance Series
High-Performance Portable Balances with Intuitive Touchscreens for High Accuracy and Productivity
Ideal for laboratory & industrial applications, the OHAUS Scout features an easy-to-navigate colour touchscreen display & a slim design which allows stackable storage. Geared for superior performance with fast stabilization time and high resolution weighing results, these portable balances set a new standard for a broad range of weighing applications. Features also include superior overload protection and expanded connectivity options.
*Enquire With Our Sales Team For A Quote On A Scout Portable Balance Scale
Standard Features
• Large intuitive colour touchscreen display allows for easy operation - guiding the user through every step of the weighing application.
• Advanced weighing technology allows for one-second stabilization time for increased productivity.
• Integrated overload protection system rated at ten times the capacity protects the balance in demanding environments.
Specifications
| Model | Capacity (g) | Readability (g) | Repeatability (Std.Dev.)(g) | Linearity(g) | Span Calibration Mass1 | Linearity Calibration Mass |
| STX123 | 120 | 0.001 | 0.002 | 0.003 | 100 g | 50, 100 g |
| STX223 | 220 | 0.001 | 0.002 | 0.003 | 200 g | 100, 200 g |
| STX222 | 220 | 0.01 | 0.01 | 0.01 | 200 g | 100, 200 g |
| STX422 | 420 | 0.01 | 0.01 | 0.01 | 200 g | 200, 400 g |
| STX622 | 620 | 0.01 | 0.01 | 0.02 | 300 g | 300, 600 g |
| STX1202 | 1200 | 0.01 | 0.02 | 0.03 | 1kg | 500 g, 1 kg |
| STX2202 | 2200 | 0.01 | 0.02 | 0.03 | 2kg | 1 kg, 2 kg |
| STX421 | 420 | 0.1 | 0.1 | 0.1 | 200 g | 200, 400 g |
| STX621 | 620 | 0.1 | 0.1 | 0.1 | 300 g | 300, 600 g |
| STX2201 | 2200 | 0.1 | 0.1 | 0.1 | 2kg | 1 kg, 2 kg |
| STX6201 | 6200 | 0.1 | 0.1 | 0.2 | 5kg | 3 kg, 6 kg |
| STX8200 | 8200 | 1 | 1 | 1 | 8kg | 4 kg, 8 kg |
| Stabilization Time (s) | 1.5 | 1.5 | 1 | 1 | 1 | 1.5 | 1.5 | 1.5 | 1 | 1 | 1 | 1 | 1 | |
| Construction | ABS housing & stainless steel pan |

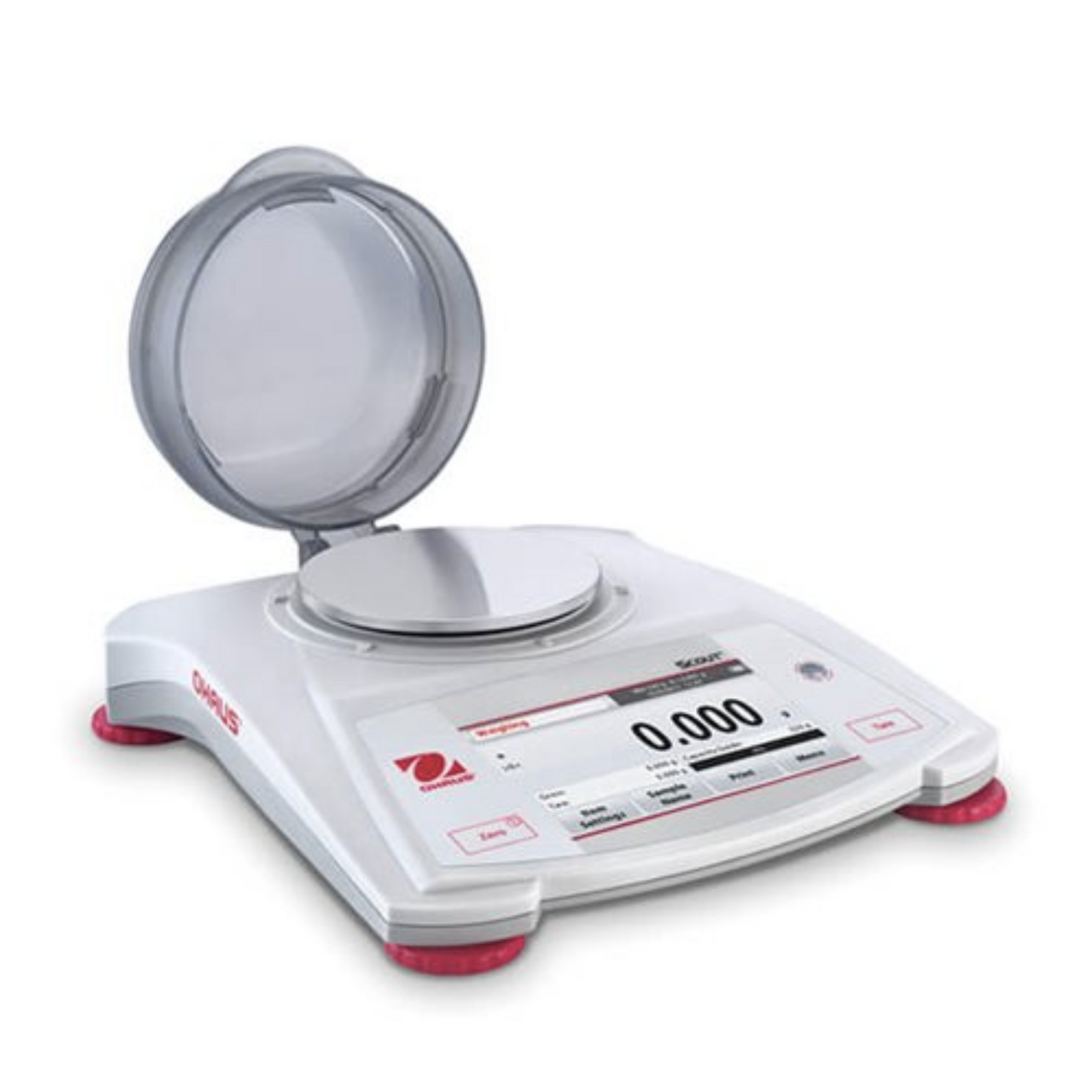

| Draftshield | Yes | No |
| Calibration | User-selectable external span or linearity calibration/Digital with external weight |
| Tare-Range | Full capacity by subtraction |
| Weighing Units | mg, g, kg, ct, N, oz, ozt, dwt, lb, lb:oz, grn, hkt, sgt, twt, tical, tola, customer unit 1 |
| Application Modes | Weighing, Parts Counting, Percent Weighing, Check Weighing, Animal/Dynamic Weighing, Totalization, Density Determination, Display Hold, Mole Weighing |
| Power Requirement | AC adapter (included) or 4 AA batteries (not included) |
| Typical Battery Life | 6 hours |
| Communication | RS232, USB Host, USB Device, Ethernet (available as an accessory) |
| Display Type | 4.3” (109 mm) full-colour VGA graphic touchscreen display with user-controlled brightness |
| Display Size | 4.3 in/109 mm (diagonal) |
| Overload Capacity | 10 times the rated capacity |
| Operating Temperature Range | 50°F/10°C to 104°F/40°C at 10% to 80% relative humidity, non-condensing |
| Storage Conditions | -20°C (-4°F) to 55°C (131°F) at 10% to 90% relative humidity, non-condensing |
| Pan Size (W x D) | Ø3.7 in/ 93 mm | Ø 4.7 in/ 120 mm| 6.7 × 5.5 in/ 170 × 140 mm | Ø 4.7 in/ 120 mm | 6.7 × 5.5 in/ 170 × 140 mm |
|
Balance Dimensions (W x D x H) |
8 × 8.7 × 4.1 in/ 202 × 222 × 103 mm | 8 × 8.8 × 2.1 in/ 202 × 224 × 54 mm |
|
Shipping Dimensions (W x D x H) |
11.8 × 9.8 × 5.1 in/300 × 250 × 129 mm |
| Net Weight | 2.2 lb/1 kg |
| Shipping Weight | 3.5 lb/1.6 kg |
