Godex 1200i/ 1300i/ 1600i Printer

Name: Godex 1200i/ 1300i/ 1600i Printer
Brand: Godex
Availability: InStock

Service & Calibration Support

Interweigh Systems provides calibration, service, and technical support for all equipment we sell.

Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.

Certified test weights are also available to support quality control programs and internal verification procedures.

Ordering & Configurations

Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.

To receive pricing or discuss availability, contact our team with details about your application and environment.

Contact Now for Immediate Pricing

Description

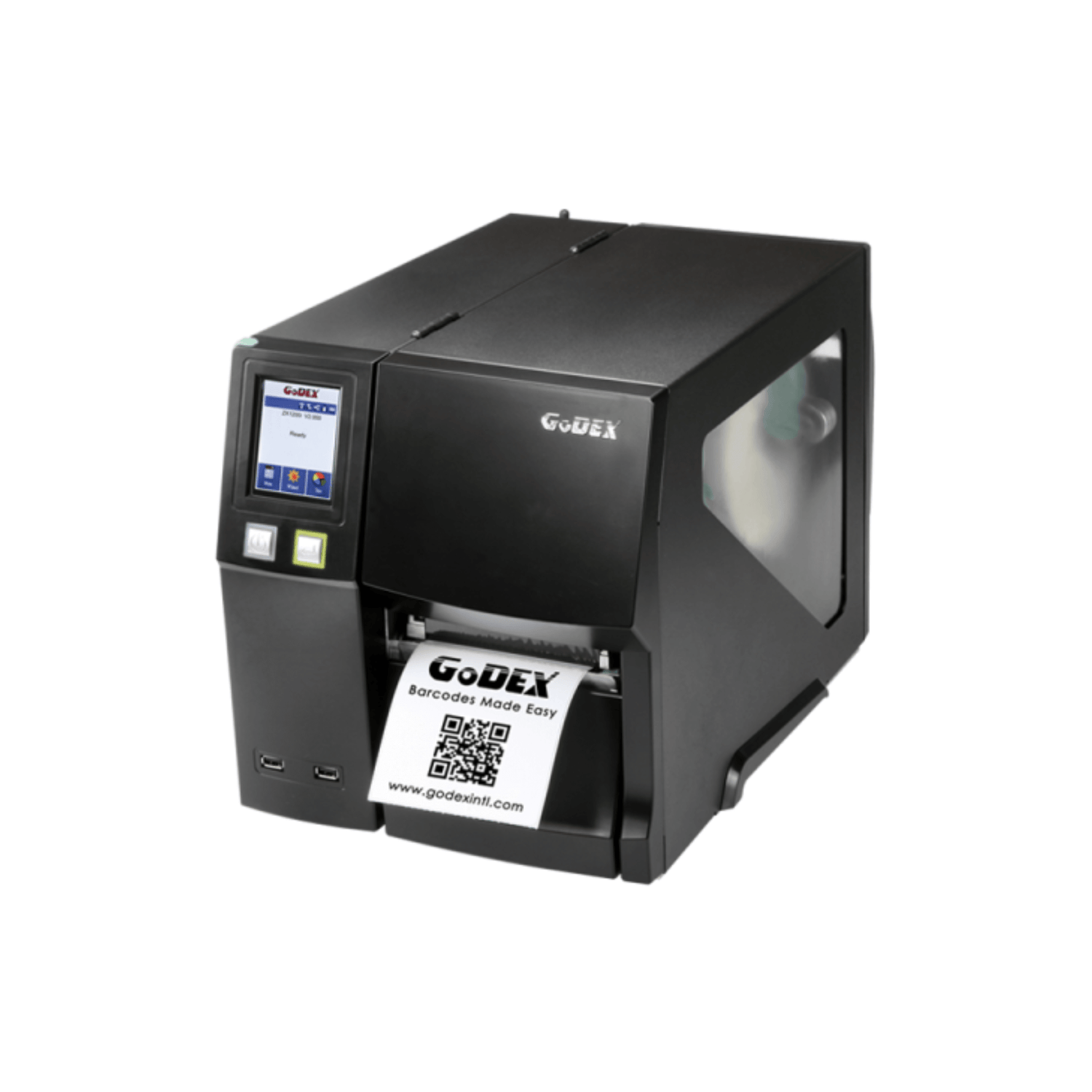

Godex 1200i/ 1300i/ 1600i

Amazing combination of power and precision!

Various standard interfaces facilitate integration into several environments. Compact and robust steel design will fulfill your most demanding applications.

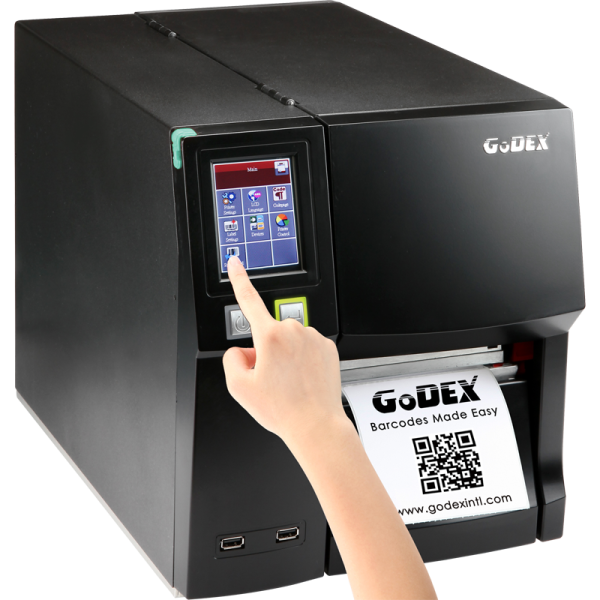

A large intuitive touch screen LCD allows the user to be in control.
Three USB host ports standard allows integration with several devices.
High-performance printer designed for high volume applications in mind.
Up to 10 ips print speed.

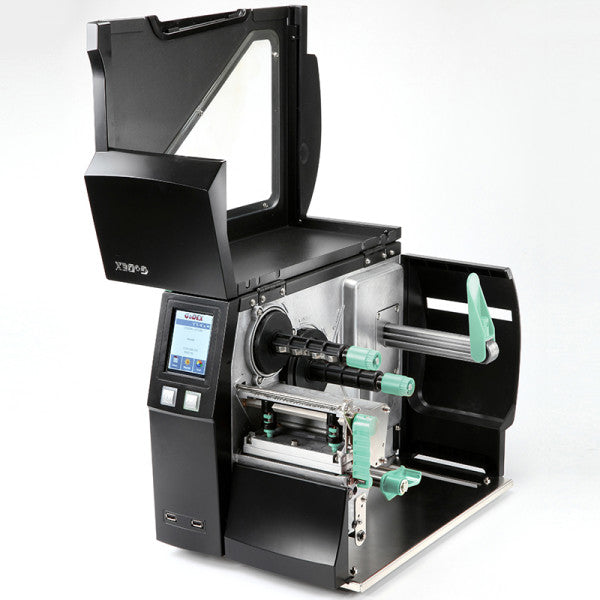

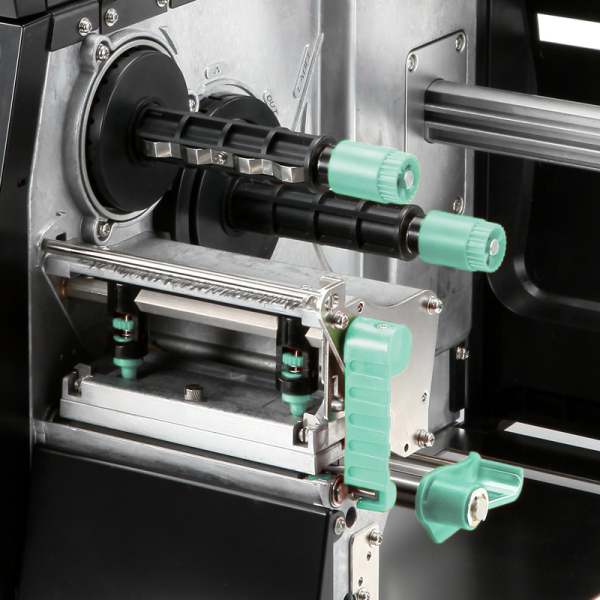

Easy and fast media/ribbon loading.
New Hardware ideal for both high volume or precision printing applications.
203 DPI model.

Specifications

Print method

Thermal Transfer / Direct Thermal

Resolution

203 dpi (8 dots/mm) / 300 dpi (12 dot/mm) / 600 dpi (24 dot/mm)

Print speed

10ips (254mm/s) / 7ips (177mm/s) / 4ips (102mm/s)

Print width

4.09” (104mm) Up to (108mm) / 4.09” (104mm) Up to (105.7mm) / 4.09” (104mm) Up to (105.6mm)

Print length

Min. 0.16” (4 mm)** ; Max. 180” (4572mm) / Min. 0.16” (4 mm)** ; Max. 85” (2159 mm) / Min. 0.16” (4 mm)** ; Max. 26" (660mm)

Processor

32-bit RISC CPU

Memory

Flash: 128 MB Flash (60 MB for user storage), SDRAM : 32 MB

Interfaces

• USB 2.0 (B-Type) • Serial Port • Ethernet port (RJ-45) • 3 x USB Host (Type A)

Ribbon

Length Max. 1476' (450 m) Width Min. 1.18” (30 mm) – Max. 4.33” (110 mm) Core diameter 1” (25.4 mm)

Control Panel

• Backlight 3.2” touch screen LCD • 1 Power on/off button with green color LED backlight • 1 Control key : FEED / PAUSE / CANCEL with dual color LED backlight: Ready (Green); Error (Red) • 1 Calibration button at rear panel
