Description

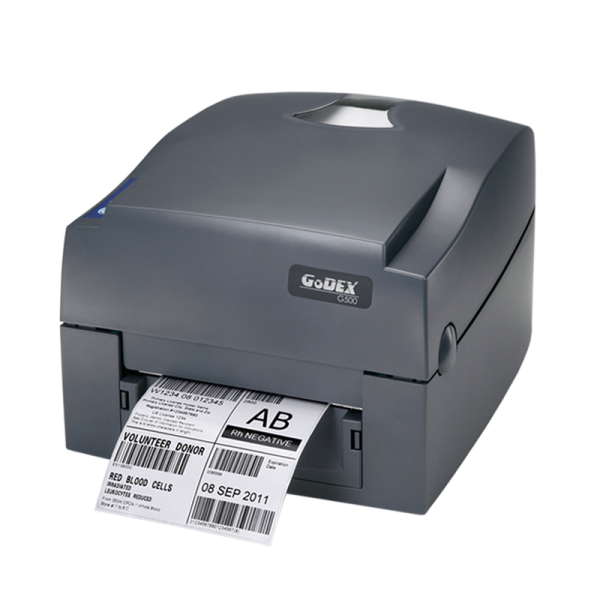

Godex G500/G530

High-Tech Power with a Customer Friendly Price

"Twin-Sensor Technology" makes the G500 perfect for printing on all types of specialty materials, especially for retail and industrial applications

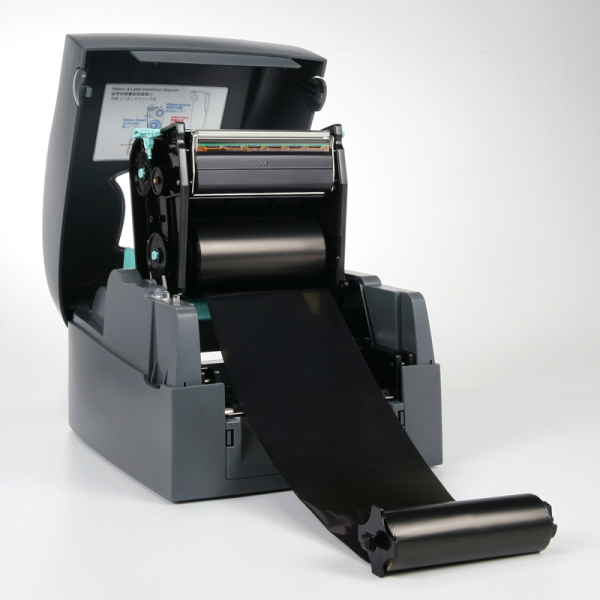

  • 300-meter ribbon plus the optional label stand provides maximum printing volume
  • "Twin-Sensor" technology allows you to use a broad range of labels
  • Available interface combinations include:
    USB2.0, Serial and Ethernet
    USB2.0 and Parallel
  • Strong and stable mechanism design for long-term reliability

Specifications

Print Method
Thermal Transfer / Direct Thermal

Resolution
203 dpi (8 dots/mm) / 300 dpi (12 dot/mm)

Print Speed
5 ips (127mm/s) / 4 ips (102 mm/s)

Print Width
4.25” (108mm) / 4.16” (105.7mm)

Print Length
Min. 0.16” (4 mm)** ; Max. 68” ( 1727mm) / Min. 0.16” (4 mm)** ; Max. 30” (762 mm)

Processor
32-bit RISC CPU

Memory
Flash: 8 MB Flash (4 MB for user storage), SDRAM: 16 MB

Interfaces

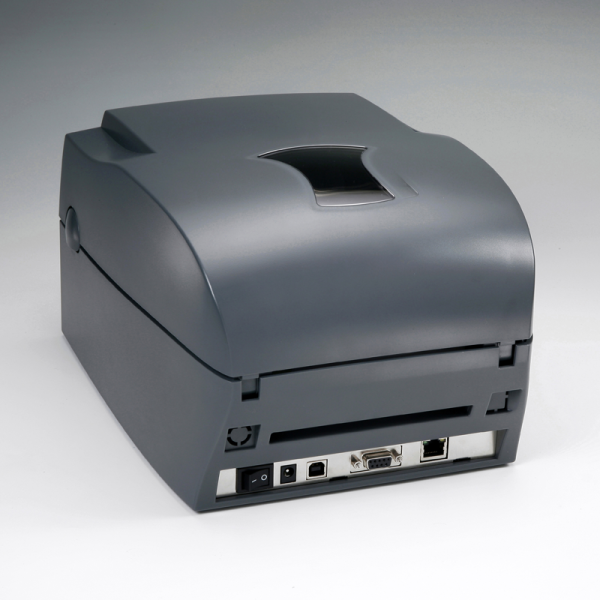

• USB 2.0 • RS-232 (DB-9) • Ethernet (RJ45)

Ribbon
Length: 981' (300 m) Width: 1.18” Min - 4.33” (30 mm - 110 mm) Max Core diameter: 1” (25.4 mm)

Control Panel
Two bi-color status-LEDs: Ready, Status Control key: FEED
