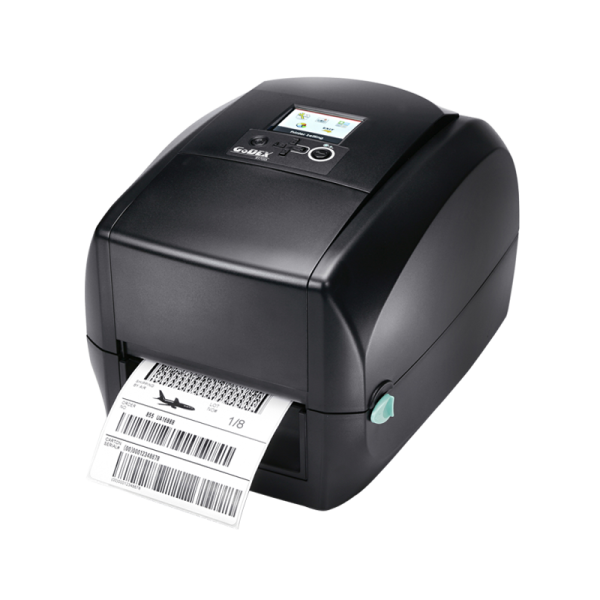

Godex RT700iW/ RT730iW
Standard Features
Revolutionary RT700iW Series is ready to challenge your perception of barcode label printing.
RT700iW and RT730iW are manufactured to deliver the highest commitment for retail, warehouses, logistic & transportation, government & administration, and health care applications.
- USB2.0, USB host, Serial & parallel port, Ethernet, optional WIFI & Bluetooth module for multiple applications.
- 32 MB SDRAM and 128 MB Flash memory - including 60 MB available for user.
- Color TFT LCD with navigation button for intuitive operation.
- 203 dpi (8 dots/mm) & 300 dpi (12 dots/mm) resolutions; print speed is up to 7"/177 mm per second.
- Supports 300-meter ribbon and 10-inch diameter label stand available for bulk printing.
Specifications
Print Method
Thermal Transfer / Direct Thermal
Resolution
203 dpi (8 dots/mm) / 300 dpi (12 dot/mm)
Print Speed
7 ips (177 mm/s) / 5 ips (127 mm/s)
Print Width
4.25” (108mm) / 4.16” (105.7mm)
Print Length
Min. 0.16” (4 mm)** ; Max. 68” ( 1727mm) / Min. 0.16” (4 mm)** ; Max. 30” (762 mm)
Processor
32-bit RISC CPU
Memory
Flash: 128 MB Flash (60 MB for user storage), SDRAM : 32 MB
Interfaces

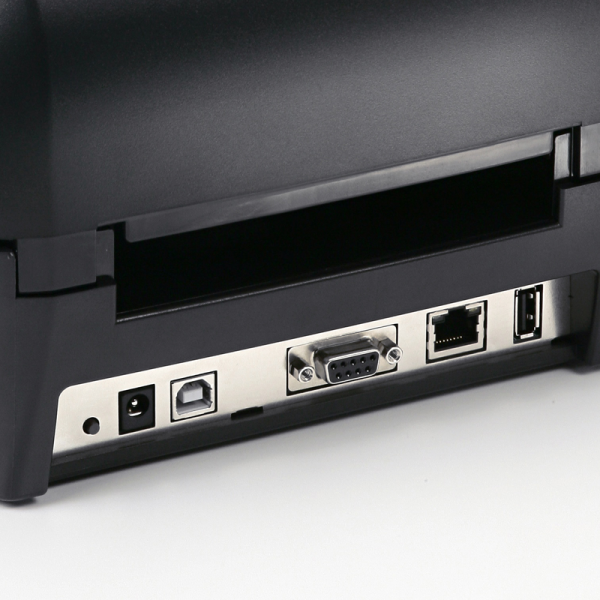

• USB 2.0 (B-Type) • Serial Port • Ethernet port (RJ-45) • USB Host (A-Type) • Parallel Port (Mini-Centronics)
Ribbon
Length: 981' (300 m) Width: 1.18” (30 mm) Min. - 4.33” (110 mm) Max. Core diameter: 1” (25.4 mm)
Control Panel
• Color TFT LCD with navigation button • Power on/standby button • Calibration button at rear panel • Control key : FEED
