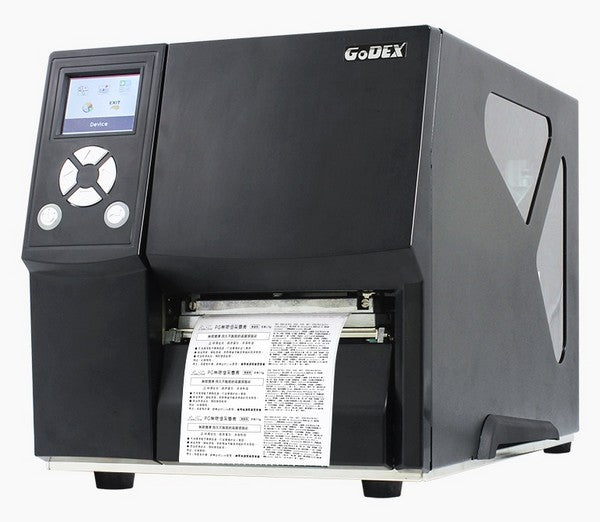

GoDex ZX420i
GoDex ZX420i is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description
GoDex ZX420i
Thermal Transfer/ Direct Thermal Printer
Notable Features
- Multiple connectivity
- Auto Calibration button included
- A full line of accessories
- Easy ribbon/ media loading
- Full-range adjustable label sensor
- 32-bit CPU that offers fast “first label out” throughput
- Fast print speed - up to 6 ips
Application
- Health Care
- Retail
- Logistics
- Manufacturing
Specifications
| Print Method | Thermal Transfer / Direct Thermal | |
| Resolution |
|
|
| Print Speed | 6 ips (152 mm/s) | |
| Print Width | 4.25” (108mm) | |
| Print Length | Min. 0.16” (4 mm)** ; Max . 157.44” ( 3999mm) | |
| Processor | 32-bit RISC CPU | |
| Memory | Flash 128 MB Flash (60 MB for user storage) SDRAM 32 MB |
|
| Sensor Type | Adjustable reflective sensor and transmissive sensor, left aligned | |
| Media | Type Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width Tear : Min. 1” (25.4 mm) – Max. 4.64” (118 mm) Cutter : Max. 4.61” (117 mm) Dispenser / Rewind : Max. 4.64” (118 mm) Thickness Min. 0.003” (0.076 mm) – Max. 0.01” (0.25 mm) Label roll diameter Max. 8” (203.2 mm) with 3" (76.2 mm) core Max. 6” (152.4 mm) with 1.5" (38.1 mm) core Max. 5" (127 mm) with 1" (25.4 mm) core Core diameter Min. 1 " (25.4 mm) – Max. 3" (76.2 mm) |
|
| Ribbon | Types Wax, wax/resin, resin Length Max. 1476’ (450 m) Width Min. 1.18” (30 mm) – Max. 4.33” (110 mm) Ribbon roll diameter 3” (76.2 mm) Core diameter 1” (25.4 mm) |
|
| Printer Language | EZPL, GEPL, GZPL auto switch | |
| Software | Label design software GoLabel (for EZPL only) Driver Windows 2000, XP, Vista, Windows 7, 8.1 and 10 , Windows Server 2003 & 2008、 MAC、 Linux DLL Win CE, .NET, Andriod, Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Windows 10 |
|
| Resident Fonts | Bitmap Fronts : 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
|
| Download Fonts | Bitmap Fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian Fonts 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001) 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions TTF Fonts TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
|
| Barcodes | 1-D Bar Codes China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, ISBT – 128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Random Weight, Standard 2 of 5, Telepen, UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, UCC 128, UCC/EAN-128 K-Mart 2-D Bar Codes Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39 |
|
| Code pages | Codepage 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode UTF8、UTF16BE、UTF16LE |
|
| Graphics | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software | |
| Interfaces | • USB 2.0 (B-Type) • Serial port: RS-232 (DB-9) • IEEE 802.3 10/100 Base-Tx Ethernet port (RJ-45) • USB Host (A-Type) |
|
| Control Panel | • Color TFT LCD with navigation button • 1 Power on/standby button with green color LED backlight • 1 Calibration button at rear panel • 1 Control key : FEED / PAUSE / CANCEL with dual color LED backlight: Ready (Green); Error (Red) |
|
| Power | Auto Switching 100-240V AC, 50-60Hz | |
| Real Time Clock | Standard | |
| Environment |
Operation temperature 41°F to 104°F (5°C to 40°C) Storage temperature -4°F to 140°F (-20°C to 60°C) |
|
| Humidity | Operation 20-85%, non-condensing Storage 10-90%, non-condensing |
|
| Dimension | Length 15.86” (403 mm) Height 10.79” (274 mm) Width 10.24” (260 mm) |
|
| Weight | 23.81lbs (10.8 Kg), excluding consumables |
