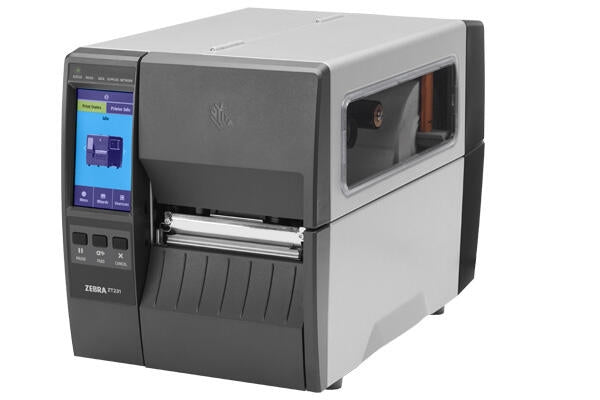

Zebra ZT231 Industrial Printer

Zebra ZT231 Industrial Printer

  • Contact Now for Immediate Pricing
  • 1(800)-268-3269
  • inquiry@interweigh.ca

BUILT TO PERFORM. ENGINEERED TO ENDURE.

Don’t Compromise on Quality

With a durable metal frame, the ZT231 is ideal for light industrial environments. Print crisp text and barcodes with optional 300 dpi resolution. Advance your label throughput with industry-leading print speeds up to 12 ips at 203 dpi.

SPECIFICATIONS

Standard Features


• Print methods: direct-thermal or thermal-transfer
• Construction: metal frame and metal enclosures
• Bi-fold media door with large clear window
• Side-loading supplies path for simplified media and ribbon loading
• Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
• Three-color LEDs for quick printer status
• 4.3” color resistive touch screen with intuitive menu for quick operation and settings
• Communications: USB 2.0, RS-232 Serial port, 10/100 Ethernet, and USB Host
• ENERGY STAR® certified
• Bluetooth Low Energy (BTLE) technology for enhanced location precision
• Real-Time Clock (RTC)

Physical Characteristics


Dimensions

ZT231 Closed: 17 in. L x 9.5 in. W x 11 in. H
432 mm L x 241 mm W x 279 mm H
ZT231 with Liner Takeup Unit:
17 in. L x 9.5 in. W x 12.75 in. H
432 mm L x 241 mm W x 324 mm H

Weight

ZT231: 20 lbs./10.9 kg
ZT231 with Liner Takeup Unit: 24 lbs./10.9 kg



Printer Specifications

Resolution

203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)

Memory

256 MB SDRAM memory
256 MB on-board linear Flash memory

Maximum Print Width 4.09 in./104 mm
Maximum Print Speed

12 ips (203 dpi)
8 ips (300 dpi)

Media Sensors Moveable transmissive and reflective sensors
Maximum Print Length

203 dpi: 157 in/3988 mm
300 dpi: 73in/1854 mm

Media Characteristics

Minimum Label and Liner Length

Tear mode: 0.7 in/18 mm
Cutter mode: 1 in/25 mm
Peel mode: 0.5 in/13 mm

Media Width 0.75 in./19.4 mm to 4.50 in./114 mm
Media Roll Size

8.0 in./203 mm O.D. on a 3.0 in./76 mm I.D. core
6.0 in./152 mm O.D. on a 1.0 in./25 mm I.D. core

Media Thickness 0.003 in./0.076 mm to 0.010 in./0.25 mm
Media Types Continuous, die-cut, notch, black mark

Ribbon Characteristics (Thermal-transfer option only)


Standard Length 1,476 ft./450 m
Width 2 in./51 mm to 4.33 in./110 mm
Core 1.0 in./25.4 mm

Operating Characteristics


Operating Temp.

Thermal transfer: 40ºF to 105ºF/5º to 40ºC
Direct thermal: 32ºF to 105ºF/0º to 40ºC

Storage/Transportation
Temperature
-40ºF to 140ºF/-40º to 60ºC
Operating Humidity 20% to 85% non-condensing
Storage Humidity 5% to 85% non-condensing
Electrical

Universal auto-ranging (PFC-compliant)
power supply 100-240 VAC; 50-60 Hz
ENERGY STAR certified

Agency Approvals IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, UKCA, VCCI, RCM, S- Mark, CCC, CU EAC, BSMI, KCC, & BIS



Firmware


ZBI 2.0™ — Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more.
ZPL and ZPL II™ — Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers.
EPL and EPL2™— Eltron Programming Language with Line Mode simplifies label formatting and enables format compatibility with legacy applications. (EPL with Line Mode available on direct thermal models only.) (EPL available on 203 dpi models only.)

Barcode Symbologies


Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with
2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
2D Barcodes: Aztec, Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, RSS-14 (and composite)

Fonts and Graphics


Z7 bitmapped, 1 smooth-scalable (CG Triumvirate™ Bold Condensed*) Pre-loaded Unicode™-compliant scalable fonts for EMEA character sets International character sets supporting the following code page: IBM® Code Page 850
Supports user-defined fonts and graphics, including custom logos ZPL II drawing commands including boxes and lines 64 MB user available Flash memory storage for downloadable objects; 32 MB user-available SDRAM

Options and Accessories


Communication
• 802.11ac Wi-Fi option card
• 10/100 Ethernet option card
• Applicator Interface
Media Handling
• Peel — a front-mount, passive-peel with no take-up spindle
• Peel — a front-mount, passive-peel with liner take-up spindle (factory-fit only)
• Cutter — a front-mount guillotine cutter
