Zebra ZT411 Industrial Printer
Zebra ZT411 Industrial Printer is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description

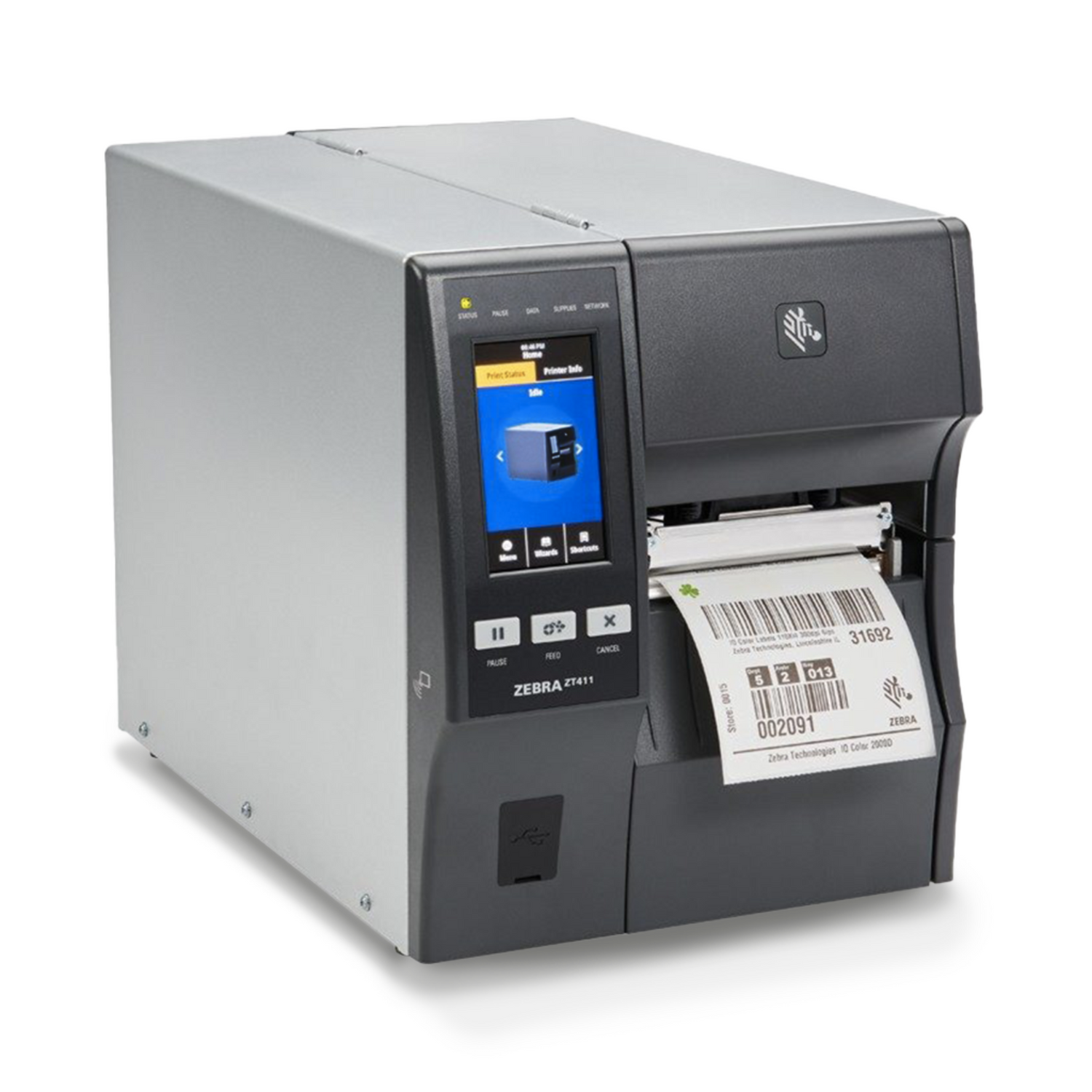

Zebra ZT411 Industrial Printer
Standard Features
Printing
• Thermal transfer and direct thermal printing
• Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
• 203 dpi print resolution (8 dots / mm)
• Print speed per second up to 14" (356 mm / second)
Communication
• USB 2.0, high speed
• RS-232 Serial (RS-232C with DB9F connector; Configurable baud rate (2400 – 115,200kB), parity, and data bits. Stop bits at 1 or 2; Software (XON/XOFF), hardware (DTR/DSR or RTS/CTS) communication handshake protocols)
• 10/100 Ethernet: Supports networks internally integrated option that enables the use of Webview and Alert features
• Bluetooth® 4.1 (including Apple®)
• Dual USB Host
Operation
• 4.3-inch color touch display with intuitive menu for quick operation and settings management
• Bi-colored status LEDs for quick printer status
• ARM Cortex A7 processor
• 256 MB RAM memory (8 MB User Available)
• 512 MB Flash memory (64 MB User Available)
• Print Touch™ application
• Link-OS®-enabled • Auto-switching 100-240V power supply
• ENERGY STAR® qualified
• Printhead element out detection
Media Support
• Dual media sensors — transmissive and reflective
• 3” media supply hanger
• Auto calibration when printer is turned on or when printhead is closed
Design
• Easy, side-loading metal print mechanism
• Tool-less printhead and platen replacement
• Metal media cover with enlarged clear viewing window
• Robust-gold user touch points indicating key adjustments
• Bi-fold media door decreasing overall operating space by 35%
Firmware
• Resident ZPL®, ZPL II® and EPL™ programming languages, selectable through software or front panel
• XML-Enabled Printing — allows XML communications for barcode label printing eliminating license fees and printer server hardware while lowering customization and programming costs
Media Specifications
• Media Types: Continuous, die-cut, notch, black-mark
• Maximum Label and Liner Length: − 39" (991 mm) non-continuous — 203 dpi, 300 dpi − 20" (508 mm) non-continuous — 600 dpi
• Media Web Width (Label and Liner): − 1.00" (25.4 mm) to 4.50" (114 mm) Tear / Cutter − 1.00" (25.4 mm) to 4.25" (108 mm) Peel / Rewind
• Minimum Label Length: − Tear-off mode: 0.5" (12.7 mm) − Peel mode: 0.5" (12.7 mm) − Rewind mode: 0.5" (12.7 mm) − Cutter: 1.00" (25.4 mm)
• Media Thickness (Label and Liner): − 0.0023" (0.058 mm) to 0.010" (0.25 mm)
• Maximum Media Roll Dimensions: − 8.0" (203 mm) O.D. on a 3" (76 mm) I.D. core
Physical Specifications
Parameter ZT411
Height 12.75" (324 mm)
Width 10.6" (269 mm)
Depth 19.50" (495 mm)
Weight 36 lb (16.33 kg)
Shipping Weight 41 lb (18.59 kg)
