Description
Description

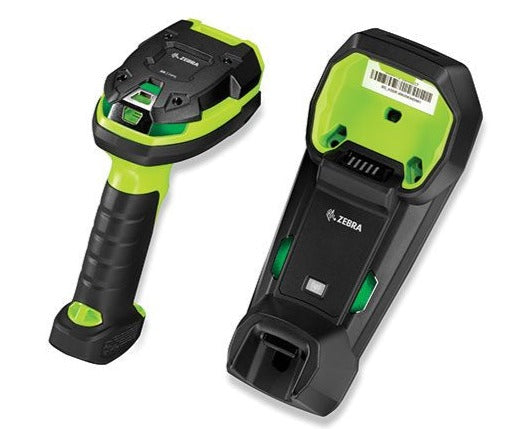

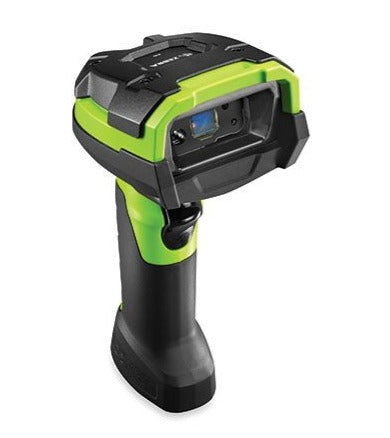

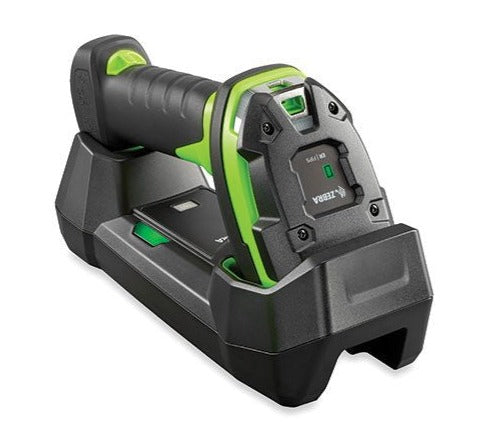

Zebra DS3600-ER
Extended Range Barcode Capture
Advanced long-range capture of 1D/2D barcodes, from near contact to the top shelf of a warehouse rack.
In addition to superior scanning performance, an ultra-rugged design and unparalleled manageability, you get more features that make this scanner easier than ever for your workers to use, including an aiming pattern for first-time accurate capture of barcodes on pick lists in hand and on the top shelf of a rack; a special mode that simultaneously captures all or specific bar codes on a label with many barcodes; mix-and-match feedback modes so workers can see, hear or feel successful scans; an extreme temperature rating for freezer use and more.
Standard Features
-
BATTERY
PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
(For cordless models)
-
DROP TOLERANCE
Withstands multiple 10 ft. / 3.0 m drops to concrete
-
SCANNING TECHNOLOGY
Array Imager
-
SEALING
Scanner: IP65 and IP68 Cradle: IP65
DECODE CAPABILITY
1D and 2D
Specifications
Physical Characteristics
|
Dimensions |
Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D 18.5 cm H x 7.6 cm W x 13.2 cm D Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D 18.5 cm H x 7.7 cm W x 14.2 cm D |
| Weight | Corded: 11.8 oz./334 g Cordless: 15.38 oz./436 g |
| Input Voltage Range | Host powered: 4.5 VDC min., 5.5 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max. |
| Operating Current | DS3608-ER (corded): Near: 360mA (RMS typical) Far: 800mA (RMS typical) DS3608-ER (corded, in 500mA Compatibility Mode): Near: 245mA (RMS typical) Far: 410mA (RMS typical) |
| Standby Current | DS3608-ER (corded): 100 mA (RMS typical) |
| Color | Industrial Green |
| Supported Host Interfaces |
USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP |
| Battery | PowerPrecision+ 3100 mAh Li-Ion rechargeable battery |
| User Indicators | Direct decode indicator; LEDs; beeper; vibration |
Performance Characteristics
| Scans per Full Charge | 70,000+ |
| Image Capture | Basic |
| Aimer | 655 nm laser |
| Illumination | One 660 nm LED |
| Imager Field of View | Near: 32° (H) x 20° (V); Far: 12° (H) x 7.6° (V) |
| Image Sensor | 1,280 x 800 (1 Megapixel) |
| Minimum Print Contrast | 25% minimum reflective difference |
| Skew/Pitch/Roll | Skew: ± 60° Pitch: ± 60° Roll: ± 360° |
Decode Capabilities²
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes |
| Digimarc | Digital watermark technology |
| IUID Support | Supports IUID parsing, the ability to read and separate IUID fields per application requirements |
User Environment
| Operating Temp. | Corded: -22° F to 122° F/-30° C to 50° C Cordless: -4° F to 122° F/-20° C to 50° C |
| Storage Temp. | -40° F to 158° F/-40° C to 70° C |
| Humidity | 5% to 95% non-condensing |
| Drop Specification | DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature DS3678: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C DS3608: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C |
| Tumble Specification | 7500 3.3 ft./1.0 m tumbles |
| Sealing | Scanner: IP65 and IP68 per applicable IEC sealing specifications FLB cradle: IP65 |
| ESD | Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge |
| Ambient Light Immunity | 0 to 10,000 Foot Candles/0 to 107639 Lux (direct sunlight) |
Wireless Connectivity
|
Bluetooth Radio |
Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles |
| Data Rate | 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy |
| Radio Range | Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m) |
