Ishida

Ishida IW-Series

Name: Ishida IW-Series
Brand: Ishida
Availability: InStock

Service & Calibration Support

Interweigh Systems provides calibration, service, and technical support for all equipment we sell.

Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.

Certified test weights are also available to support quality control programs and internal verification procedures.

Ordering & Configurations

Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.

To receive pricing or discuss availability, contact our team with details about your application and environment.

Contact Now for Immediate Pricing

Description

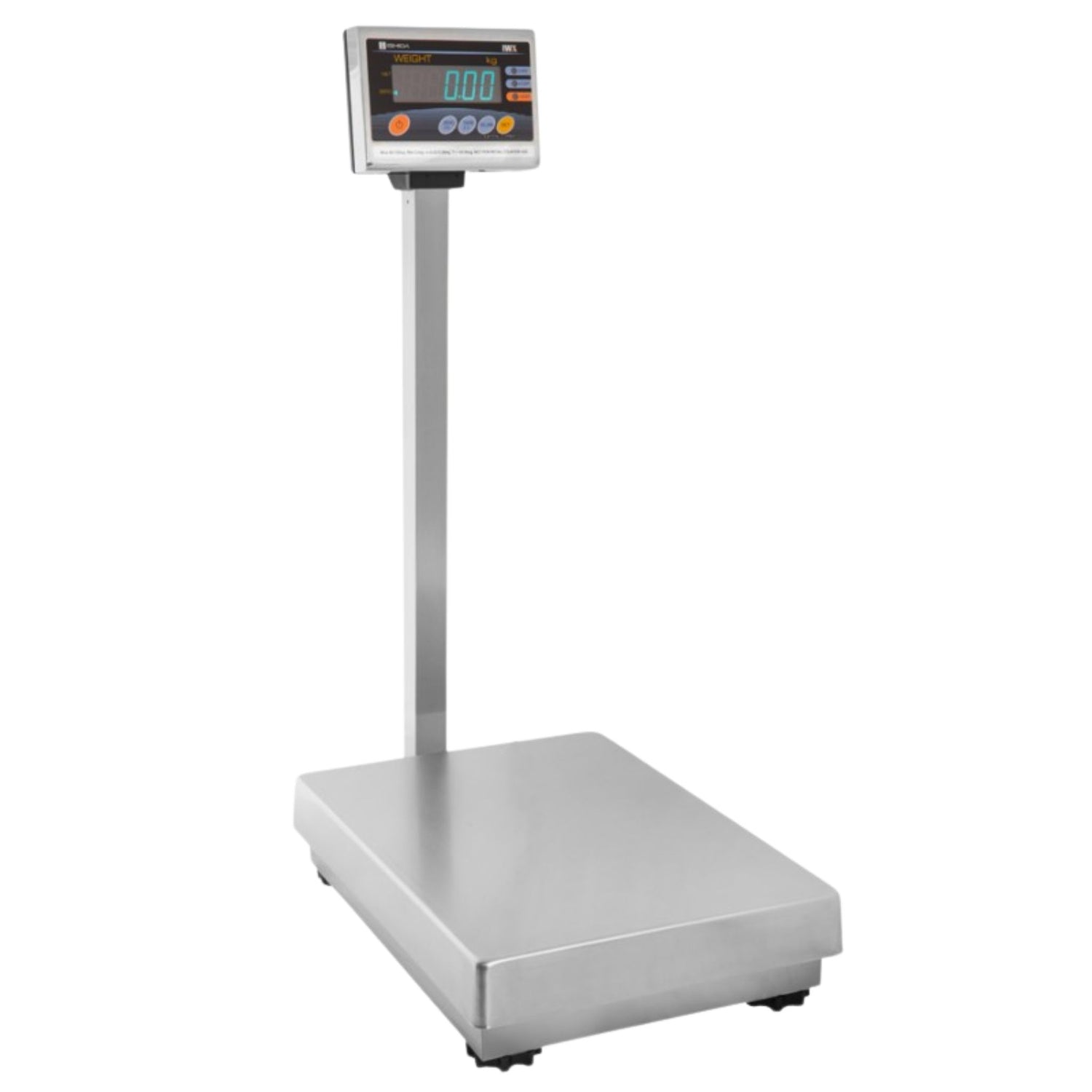

Ishida IW-Series Platform Scale

(Waterproof)

Constructed of water-proof stainless steel, the versatile IW series is ideal for food processing applications – from agricultural and fishery industries to wholesaling and retailing industries. Water-proof Design Conforms to IP-67＊1 The IW-Series meets IP-67 requirements, even allowing washdown for the highest sanitary conditions.

Standard Features

Different weight capacity models ranging from 6kg to 150kg
IP-67 rated
Preset function
WQ-30/150　Three Display Windows and Easy Operating Keypad
IWX-30/150　Large Fluorescent Display
IWB-6/30/150　Battery running model

Specifications

Models	IWQ-30	IWQ-150	IWX-30	IWX-150	IWB-6	IWB-30	IWB-150
Capacity	30 kg	150 kg	30 kg	150 kg	6 kg	30 kg	150 kg
Minimum Graduation	0.005 kg (0-15 kg) 0.01 kg (15-30 kg)	0.02 kg (0-60 kg) 0.05 kg (60-150 kg)	0.005 kg (0-15 kg) 0.01 kg (15-30 kg)	0.02 kg (0-60 kg) 0.05 kg (60-150 kg)	0.001 kg (0-3 kg) 0.002 kg (3-6 kg)	0.005 kg (0-15 kg) 0.01 kg (15-30 kg)	0.02 kg (0-60 kg) 0.05 kg (60-150 kg)
	Multi interval
Display	Fluorescent				LCD
Weight Check	over, accept, under
Weight	10 kg	17.4 kg	9.4 kg	16.8 kg	4.7 kg	Excluding 2 dry batteries
						9.1 kg	16.5 kg
Waterproof Construction	IP-67 (console: IP-65)		IP-67
Power Supply	AC 100 V ~ 240 V +/-10 %, 50/60 Hz				2 dry batteries or AC adapter
Standard Interface	External buzzer or RS232C and relay output signal (except IWB-Series)
Option	RS232C cable, relay output box (except IWB-Series)
Safety Approval	UL, CE, c-Tick
