Valor 2000
Valor 2000 is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description

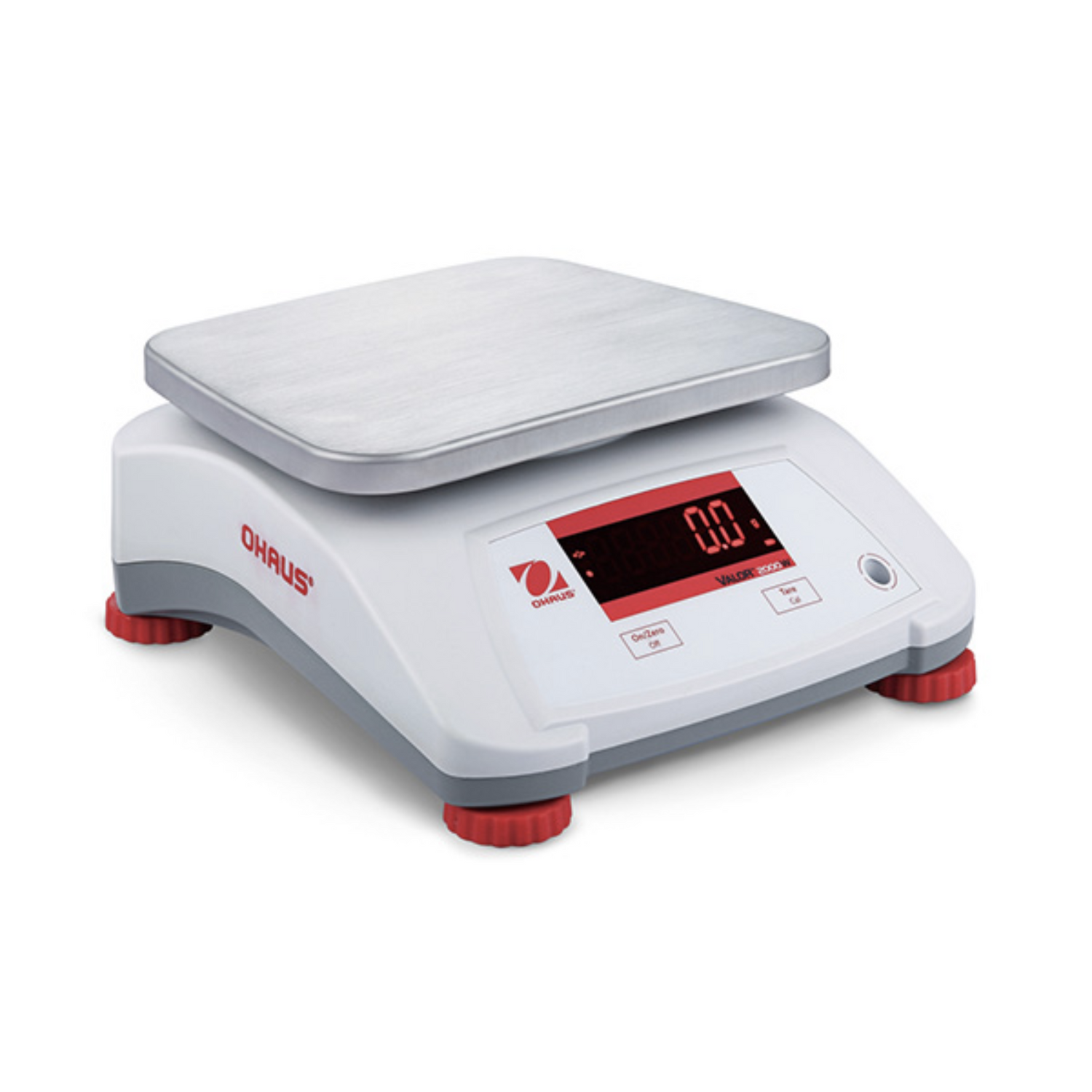

Ohaus Valor 2000- Bench Scale
Specifications
| Model | Capacity (max) x Readability (d) | Maximum Resolution (d) |
|
V22PWE1501T V22XWE1501T |
1.5 kg × 0.0002 kg 1500 g × 0.2 g 3 lb × 0.0005 lb 48 oz × 0.01 oz 3 lb × 0.01 oz (lb:oz) |
1:7,500 |
|
V22PWE3T V22XWE3T |
3 kg × 0.0005 kg 3000 g × 0.5 g 6 lb × 0.001 lb 96 oz × 0.02 oz 6 lb × 0.02 oz (lb:oz) |
1:6,000 |
|
V22PWE6T V22XWE6T |
6 kg × 0.001 kg 6000 g × 1 g 15 lb × 0.002 lb 240 oz × 0.05 oz 15 lb × 0.05 oz (lb:oz) |
1:6,000 |
|
V22PWE15T V22XWE15T |
15 kg × 0.002 kg 15000 g × 2 g 30 lb × 0.005 lb 480 oz × 0.1 oz 30 lb × 0.1 oz (lb:oz) |
1:7,500 |
|
V22PWE30T V22XWE30T |
30 kg × 0.005 kg 30000 g × 5 g 60 lb × 0.01 lb 960 oz × 0.2 oz 60 lb × 0.2 oz (lb:oz) |
1:6,000 |
| Weighing Units | g, kg, lb, oz, lb:oz |
| Application Modes |
V22PW: Weighing V22XW: Weighing, Checkweighing |
| Keyboard |
V22PW: Two mechanical switches with polycarbonate overlay V22XW: Four mechanical switches with polycarbonate overlay |
| Calibration | Digital external span calibration |
| Display | 7 segment, 6 digit, 20.5 mm / 0.8 in high red LED dual display |
| Display Indicators | Stability, center of zero, net, battery status |
| Tare Range | To capacity by subtraction |
| Zero Range | -10% to 10% of Capacity |
| Stabilization Time | ≤0.5 second |
| Safe Overload Capacity | 150% of capacity |
| Operation Temperature Range | -10 º C to 40 º C / 14° F to 104° F, 10% to 90% relative humidity non-condensing |
| Construction |
V22PW: stainless steel platform, ABS housing V22XW: Stainless steel top housing and platform, ABS bottom housing |
| Power | 12V DC 0.84A, AC Universal adapter (100 - 220V AC / 50 -60Hz) and built-in internal rechargeable lead acid battery included |

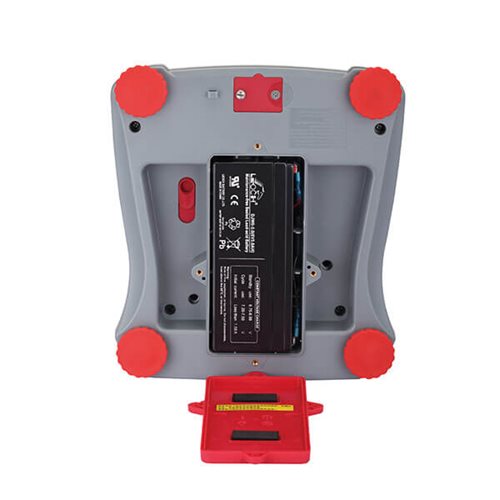

| Battery Operation | Typically 50 hours of continuous use with 12-hour full charge |

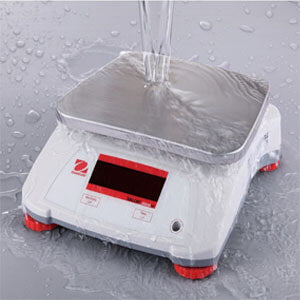

| Ingress Protection | IPX8 Washdown |
| Pan Size | 190 × 242 mm / 7.5 × 9.5 in |
|
Scale Dimensions (W × D × H) |
V22PW: 256 × 280 × 121 mm / 10.1 × 11 × 4.8 in V22XW: 256 × 288 × 124 mm / 10.1 × 11.3 × 4.9 in |
|
Shipping Dimensions (W × D × H) |
410 × 370 × 220mm / 16.1 × 14.6 × 8.7 in |
| Net Weight |
V22PW: 3.0 kg / 6.6 lb V22XW: 3.9 kg / 8.6 lb |
| Shipping Weight |
V22PW: 4.0 kg / 8.8 lb V22XW: 4.9 kg / 10.8 lb |
