Description
Description
(MS-70/ MX-50) (MF-50/ ML-50)

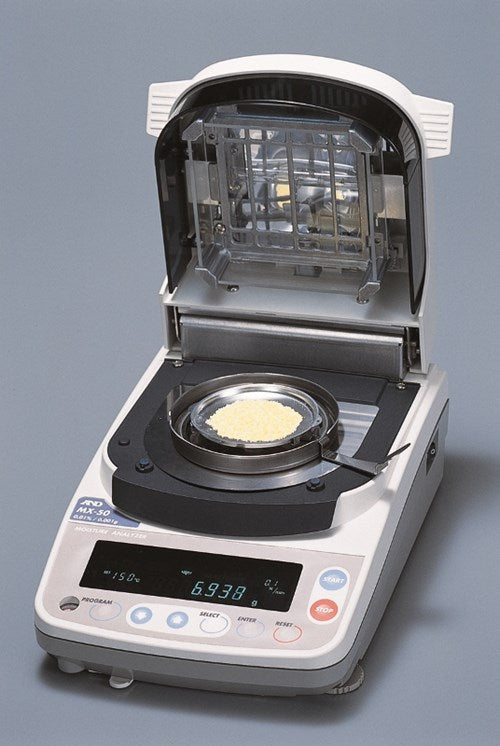

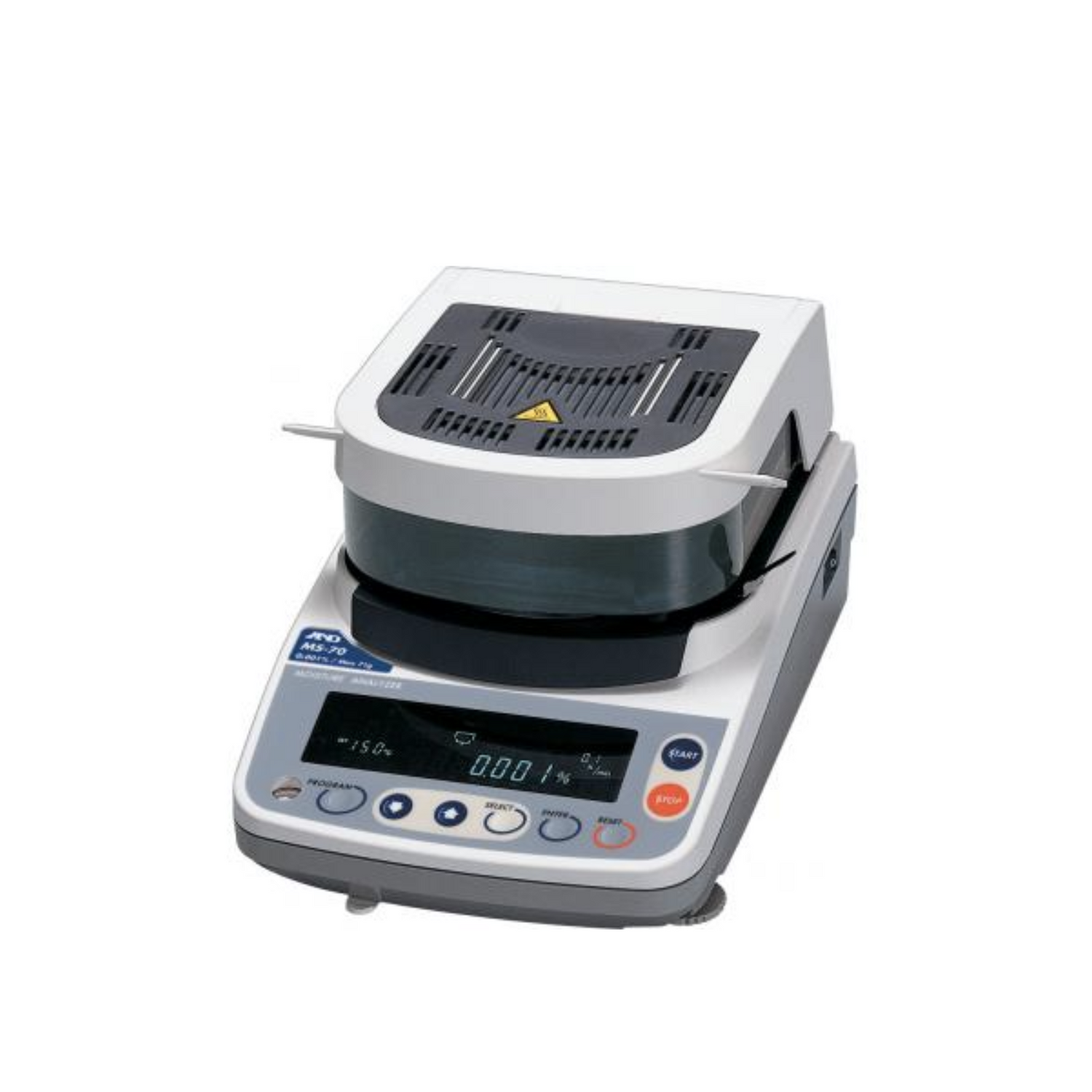

A&D Moisture Analyzers
*Contact Our Sales Team To Receive A Quote On A A&D Moisture Analyzer
Standard Features
- 4 Selectable heating modes from standard, quick, step and ramp that help customize heating curves to your unique sample types for accuracy & precision
- 5 Selectable measurement programs to best fit sample and process with STANDARD, QUICK, AUTOMATIC, TIMER, MANUAL
- Clear & easy-to-view with the large VFD display means setting values, change in moisture content, action status indicators, and data number are clearly visible
- Safe & Reliable Design
- Easy handles & ergonomic design helps to prevent burn injuries while improving workflow movements of samples in and out efficiently
- Self Check functions such as defect check function along with temperature control checks have you covered
- Progress window allows easy visibility to see heating process through translucent window
- Quick Reference Card for convenient operating guide is installed at the bottom of the analyzer
Specifications
| Model | MS-70 | MX-50 | MF-50 | ML-50 |
| Measurement Method | 400W straight halogen lamp heating system with SRA filter and SHS weighing technology |
| Max Sample Weight Capacity | 71 g | 51 g |
| Weight Resolution | 0.0001 g | 0.001 g | 0.002 g | 0.005g |
| Moisture Content Display | 0.001%/ 0.01%/ 0.1% | 0.01%/ 0.1% | 0.05%/ 0.1%/ 1% | 0.1%/ 1 % |
|
Moisture Content Accuracy (Standard Deviation) over 1 g over 5 g |
0.05% | 0.10% | 0.20% | 0.5% 0.01% | 0.02 % | 0.05% | 0.1% |
| Heating Technology | Halogen lamp (Straight type, 400 Watt max, 5000 hours) |
| Drying Temperature (1 º C Increment) | 30-200 º C | 50-200 º C |
| Memory of Measurement Programs | 20 sets | 10 sets | 5 sets |
| Measurement Programs | Standard Mode/Automatic Mode/Quick Mode/Timer Mode/Manual Mode |
| Measurement Mode | Moisture content(Wet or Dry base) /Dry content/Ratio/Weight |
| Heating Mode | Standard/Quick/Step/Ramp | Standard Quick |
| Display Type | Large VFD |
| Interface | RS-232C standard |
| Data Memory Function | 100 | 50 | 30 |
| Operating Temperature | 5-40°C (41-104°F) less than 85%RH |
| GLP / GPM / ISO | Available |
| Self Check Function | Standard |
| Communication Software | WinCT-Moisture standard | WinCT Standard | - |
| Sample Pan Size | ø 85mm |
| Power | AC 100V to 120V (3A) or AC 200V to 240V (1.5A), 50/60 Hz, Approx. 400W |
| Physical Dimension Weight | 215(W) x 320(D) x 173(H) / Approx. 6kg |
| Standard Accessories |
Sample Pans (20 for MS/MX/MF 10 for ML), Pan Handles (2 for MS/MX/MF, 1 for ML), Tweezers(for MS/MX/MF), Spoon (for MS/MX/MF), Test Sample (30g of Sodium Tartrate Dihydrate for MS/MX/MF), CD-ROM (WinCT-Moisture for MS/MX, WinCT for MF), Glass Fiber Sheet (for MS/MX/MF), RS-232C Cable (for MS/MX), Display Cover, Dust Cover(for MS/MX/MF), Instruction Manual, Quick Reference Card, Power Cable, Fuse |
