Lift-Deck Quick Clean Weighing Systems
Lift-Deck Quick Clean Weighing Systems is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description
Easy to Maintain in the Toughest Wash Down Environments!

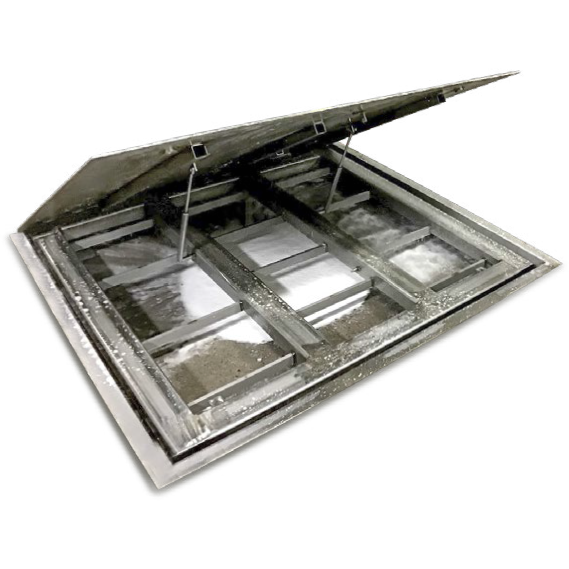

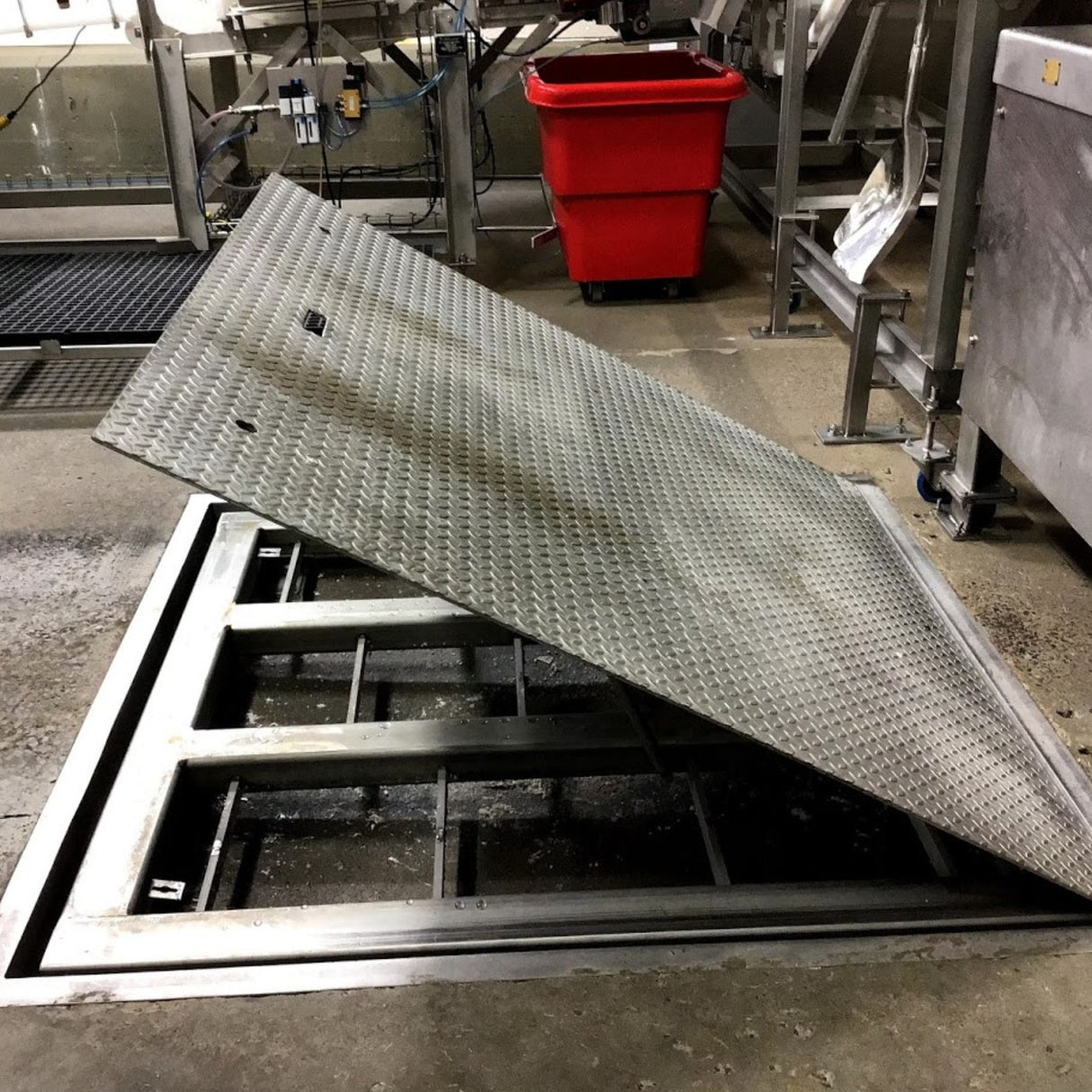

Interweigh's Lift Deck Floor Scales feature a weighing capacity from 1,000 lb to 10,000 lb. The scale has a platform size of 4' x 4' and up with a checkered steel top deck. Gas shocks make it effortless to raise the scale platform for easy cleaning. Safety supporting rods ensure that the deck in the up position stays up during the cleaning. Installation can include pit construction and coping.
Notable Features
- Weighing capacity - can range from 1,000 lb to 10,000 lb.
- Platform size - can range from 3' x 3' to 8' x 8'.
- Checkered or smooth plate.
- Rugged wash-down design.
- Mild Steel or Stainless Steel tubular frame.
- Stainless Steel hermetically sealed load cells. Remote Nema 4 X summing box.
- Easy cleaning for HACCP inspection.

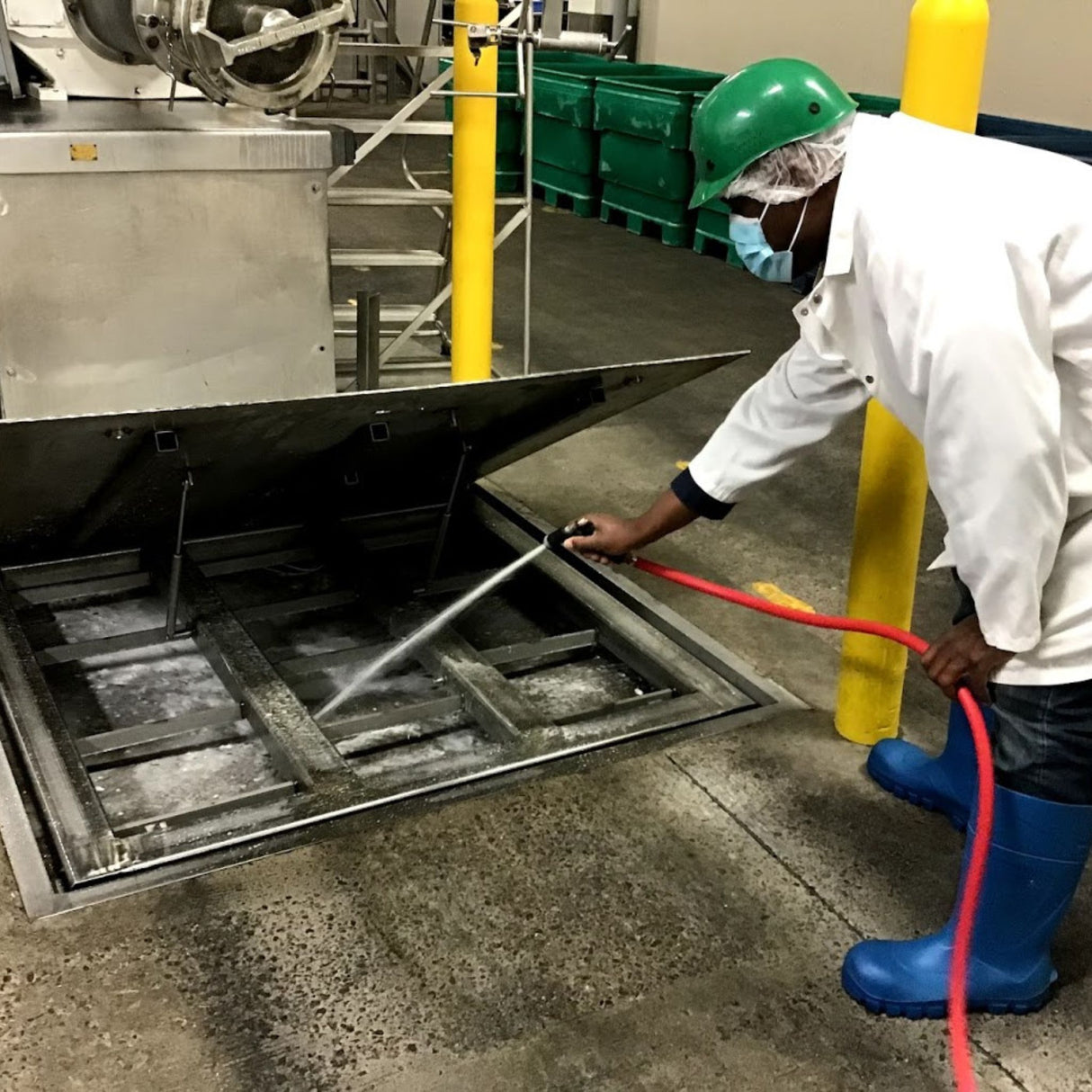

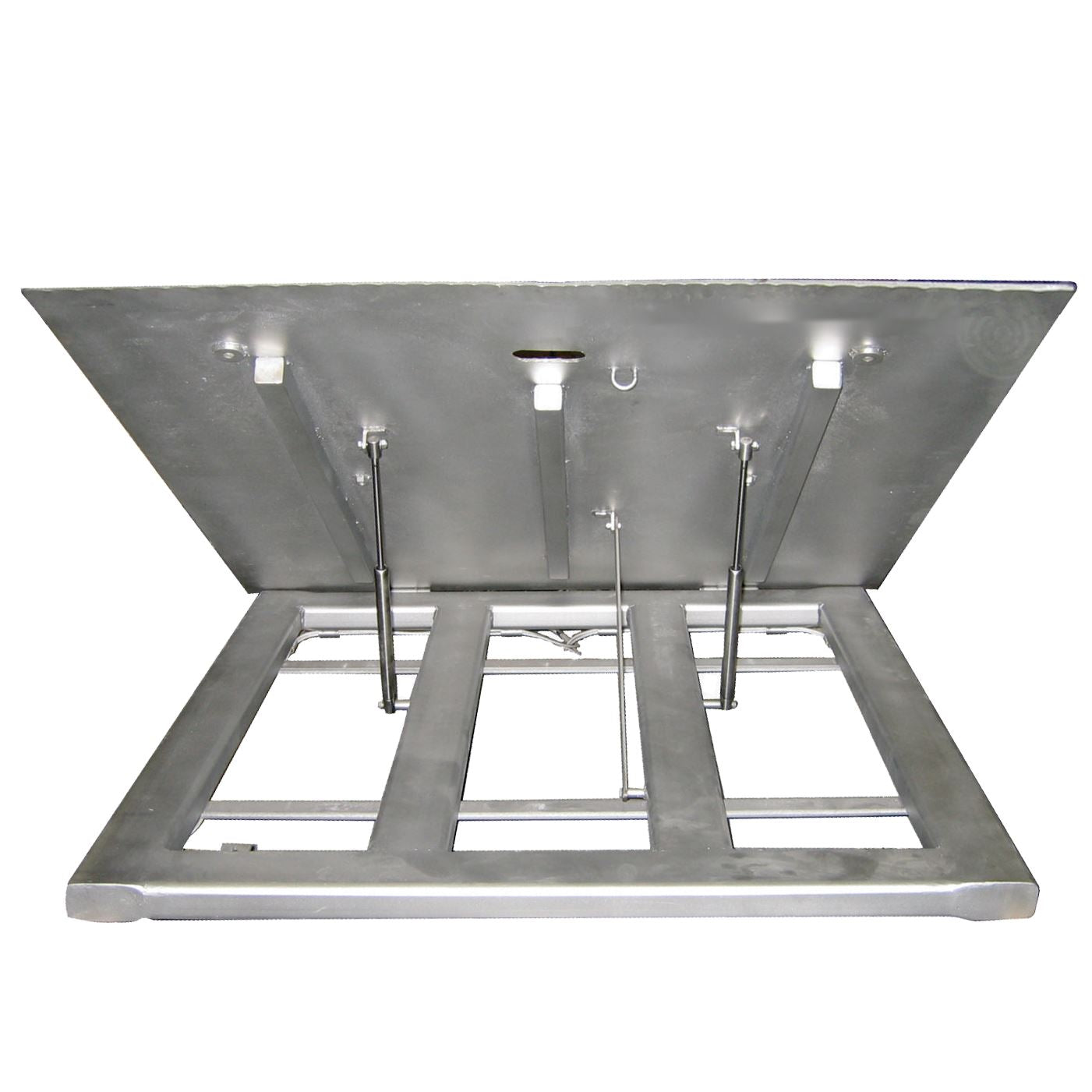

- Gas shocks make it effortless to raise the scale platform for easy cleaning.
- Safety supporting rods ensure that the deck in the up position stays up during the cleaning.
-
( sizes 4'x4' and 5'x5', up to 5000 lb / 2268 kg )
Configuration Options
| Dimensions | Capacity (lbs/kg) | Est Shipping Weight (lbs) |
|---|---|---|
| 3' x 3' x 3.5" | 1000/500 | 232 |
| 4' x 4' x 3.5" | 1000/500 | 375 |
| 2.5' x 2.5' x 3.5" | 2000/1000 | 173 |
| 3' x 3' x 3.5" | 2000/1000 | 232 |
| 3' x 3' x 3.5" | 5000/2500 | 232 |
