HC-i Series by A&D Weighing
HC-i Series by A&D Weighing is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description

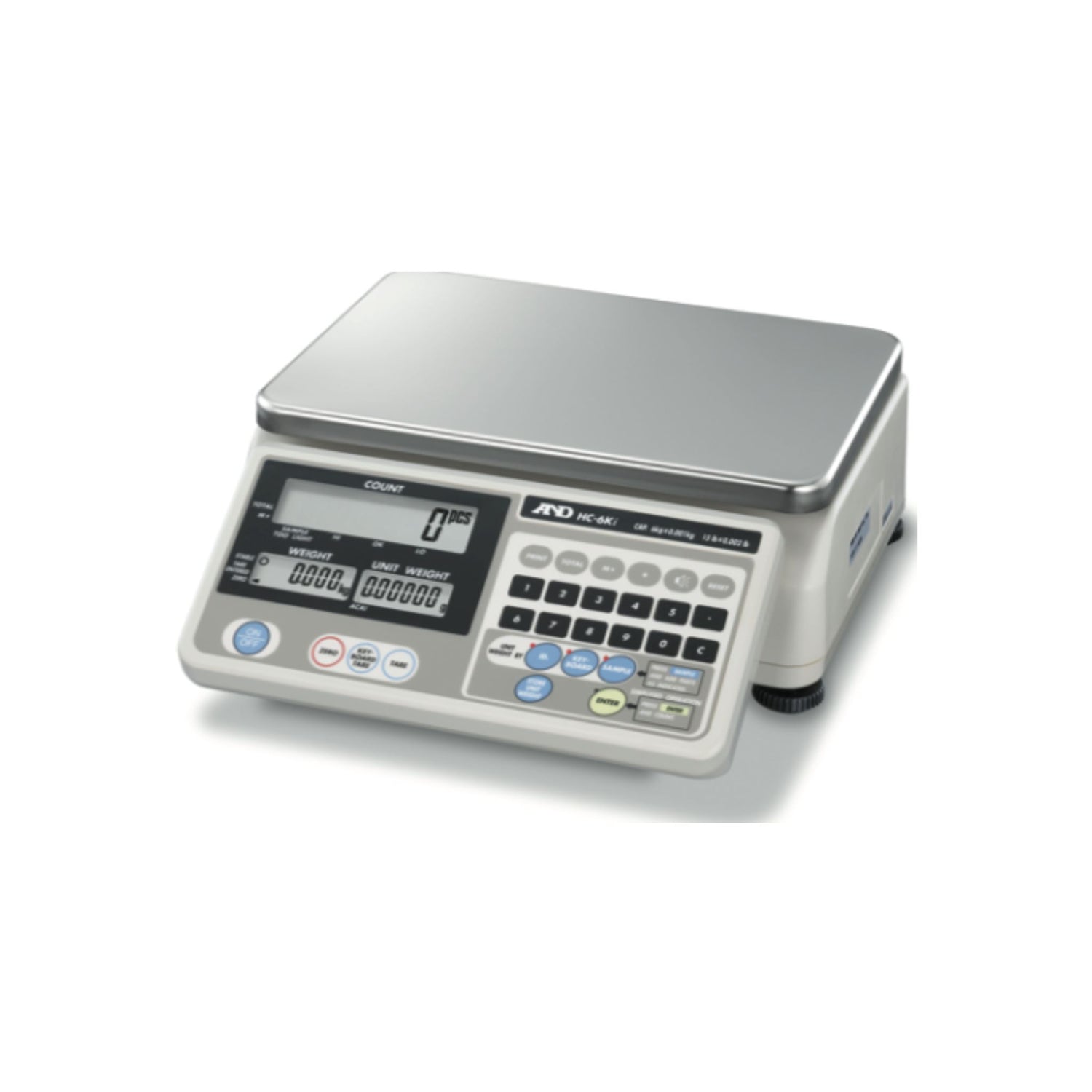

The HC-i Series by A&D Weighing is simple and easy to operate counting scales. These counting scales are often used to build an inexpensive inventory control system. Cost-effective and reliable, the HC-i Series will eliminate errors and wasteful repetition during large volume counting jobs. Capacity ranges from 6lbs (3kg) to 60lbs (30kg) and offers a resolution ranging from 0.0005 lbs (2g) to 0.01 lbs (0.005kg).
Download the HC-i Series Brochure.
Notable Features
- Navigation system with LED for easy and simple operation.
- High internal resolution 1/600,000 (HC-3Ki / 6Ki / 30Ki) and 1/750,000 (HC-15Ki).
- Weighing display resolution 6000 (HC-3Ki / 6Ki / 30Ki) and 7500 (HC-15Ki).
- Automatic Counting Accuracy Improvement (ACAI).
- Audible Weighing Assist beeping function (AWA).
- Detachable display unit.
- Optional Sealed Lead Acid (SLA) rechargeable battery.
- Accumulation function.
- Up to 99 unit weights ID memory function.
- Universal Flex Coms function.
- Auto-power OFF function.
- Full Digital Calibration function.
- Large LCD display (height - 18.6mm for pieces / 11.4mmt for weight and unit weight)
- Simple operation mode.
- Large stainless steel weighing pan ( 300 x 210 mm / 11.8 x 8.3 inches).
- Optional Interface function RS-232C and Relay output.
| Model | HC-3Ki | HC-6Ki | HC-15Ki | HC-30Ki |
|---|---|---|---|---|
| Capacity | 6lbs (3kg) | 15lbs (6kg) | 30lbs (15kg) | 60lbs (30kg) |
| Resolution | 0.001lbs (0.00005kg) | 0.002lbs (0.001kg) | 0.005lbs (0.002kg) | 0.01lbs (0.005kg) |
| Sample Size | 10 pieces normal -5, 25, 50, 100 or random number, user selectable | |||
| Min. Unit Weight* | 0.1g/0.005g | 0.2g/0.01g | 0.4g/0.02g | 1g/0.05g |
| Internal Resolution | 1/600,000 | 1/7500,000 | 1/600,000 | |
| Non-linearity | ±0.5g | ±1g | ±2g | ±5g |
| Repeatability | 0.5g | 1g | 2g | 5g |
| Span Drift | 0.002%/°C (5°C~35°C) typical | |||
| Operating Temp. | -10°C to 40°C / 14°F to 104°F, 85%RH or lower (No condensation) | |||
| Display | 7 segment LCD, Character height: pcs 18.6mm, weight/unit weight 11.4mm | |||
| Display Update | Approx 10 times per second | |||
| Max Count Display | 600,000 | 750,000 | 600,000 | |
| Interface | RS-232C (option) | |||
| Power | AC adapter or SLA Battery (option) Battery Operating Time : Approx. 80-hour (without interface) |
|||
| Platform Size | 300 x 210 mm / 11.8 x 8.3 inches | |||
| Dimensions | 315(W) x 331(D) x 126(H) mm / 12.4(W) x 13.0(D) x 5.0(H) inches | |||
| Weight | 4.8kg / 10.6lb | |||
| Calibration Weight | 3kg ±0.1g | 6kg ±0.2g | 15kg ±0.5g | 30kg ±1g |
| Standard Accessories | Instruction manual, AC adapter | |||
| *Min unit weight varies according to the function setting (F-02-03) | ||||
