Intercomp

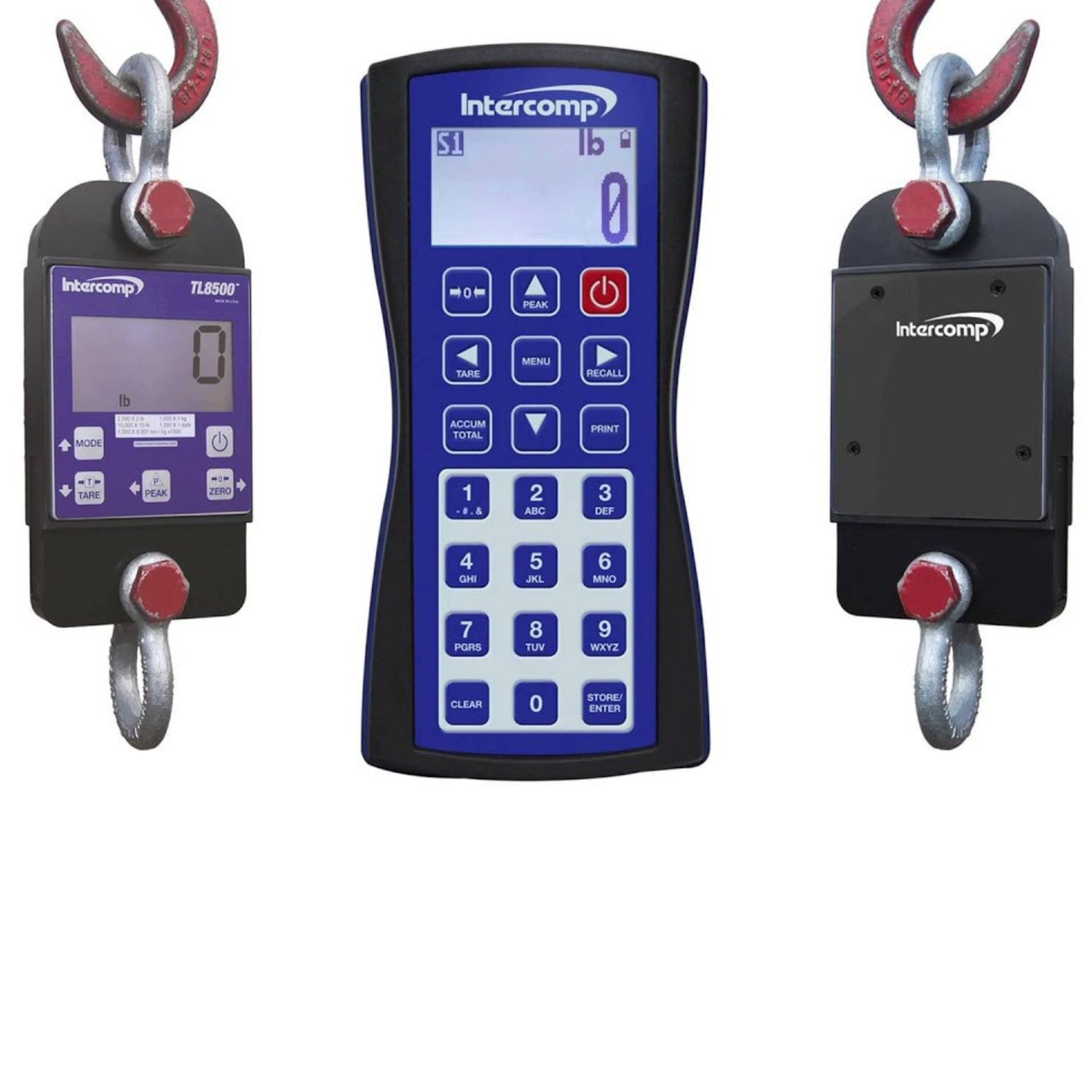

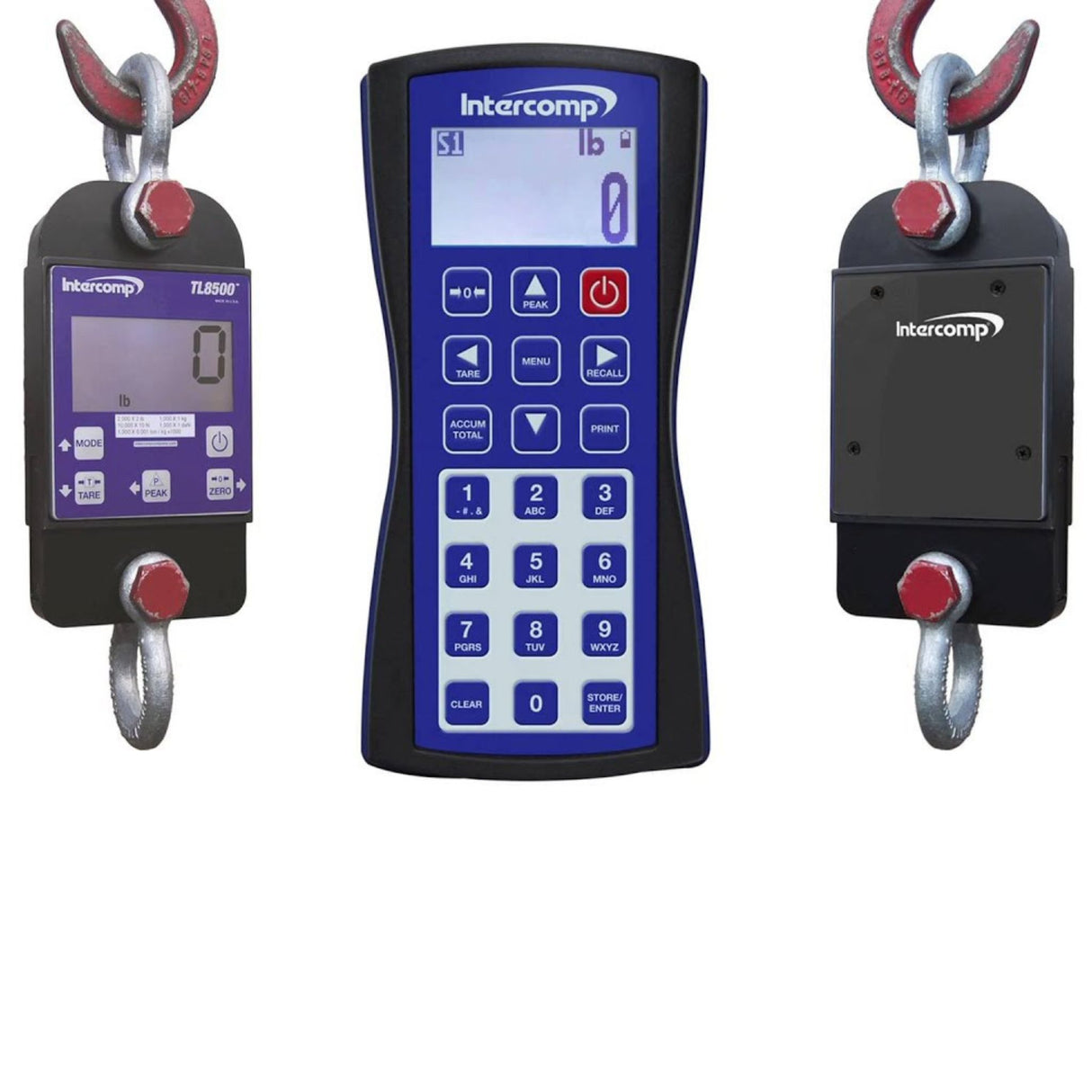

TL8500™ Tension Link Scales

Name: TL8500™ Tension Link Scales
Brand: Intercomp
Availability: InStock

Service & Calibration Support

Interweigh Systems provides calibration, service, and technical support for all equipment we sell.

Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.

Certified test weights are also available to support quality control programs and internal verification procedures.

Ordering & Configurations

Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.

To receive pricing or discuss availability, contact our team with details about your application and environment.

Contact Now for Immediate Pricing

Description

Cost-Effective, Wireless, Overhead Load Management

Download the TL8500™ Tension Link Scales brochure.

Lightweight, Compact Design for Cranes, Riggers, Shipyards, Construction Sites, Surveyors, Inspectors, and Utilities.

When working around overhead loads or near line tensions, accuracy and safety cannot be compromised. The TL8500™ Series Tension Link scales from Intercomp are the industry standard for verifying, controlling, and monitoring suspended loads and line tension while helping to maintain a safe work environment.

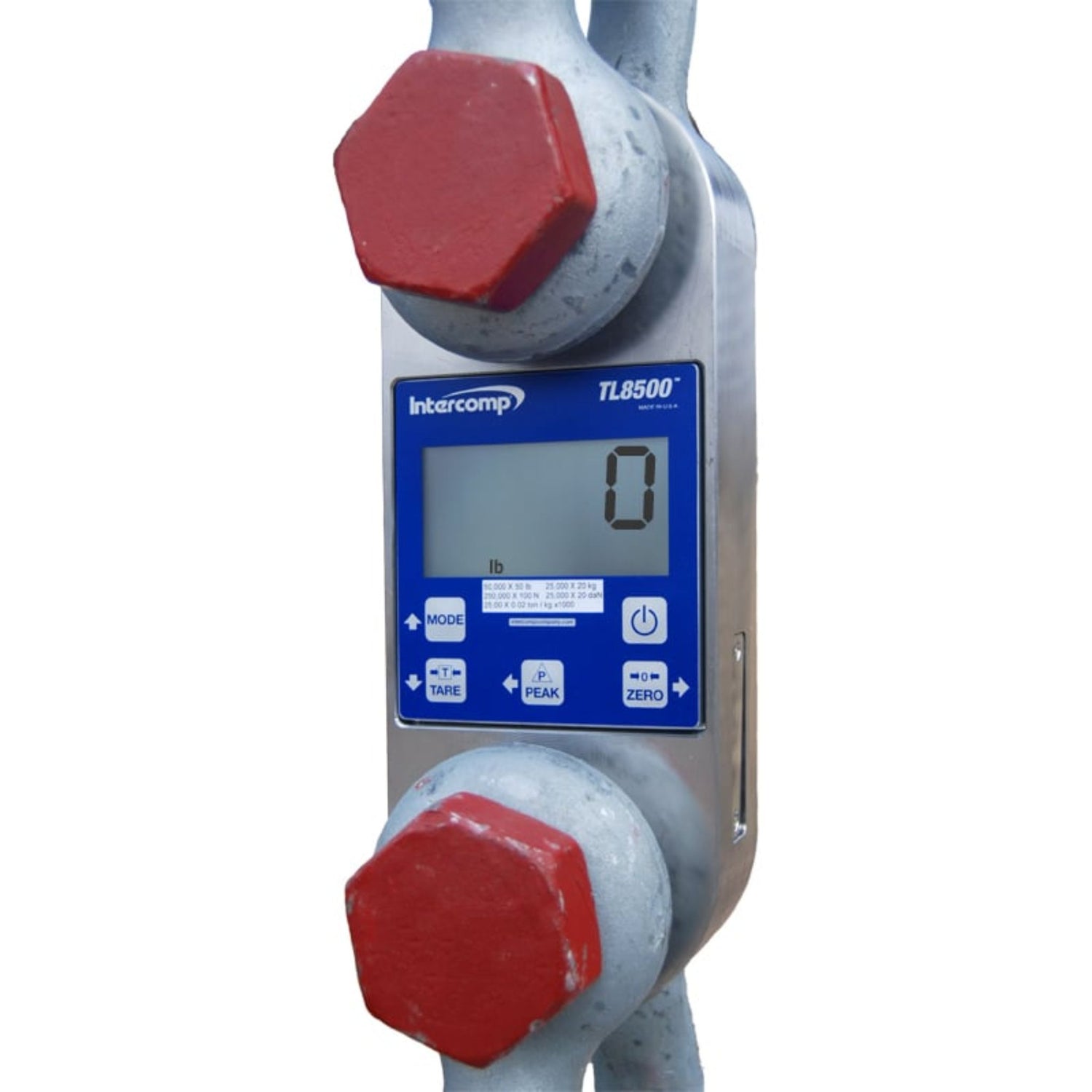

Intercomp manufactures TL8500™ Series Tension Link scales machined from aerospace-grade aluminum with shock-mounted electronics in a NEMA 4x/IP65 weatherproof enclosure, Intercomp’s Tension Link scales are built to last in capacities ranging from 1,000 lb (500 kg) to 160,000 lb (80,000 kg).

Notable Features

Elevate your load tension measurement with the TL8500™ tension link dynamometers, trusted by industry experts worldwide. Standard features include an easy-to-read 1.2" (30 mm) LCD Display with backlight and fully integrated wireless communication, while alkaline batteries provide up to 300 hours of power. Additional TL8500™ Tension Link Scale benefits include:

Available in Capacities up to 160,000 lb (80,000 kg)
Standard Wireless Radio with No External Antennas
Sized to Accommodate Industry Standard Shackles (Sold Separately)
Dedicated Hard Keys for On/Off & Mode
