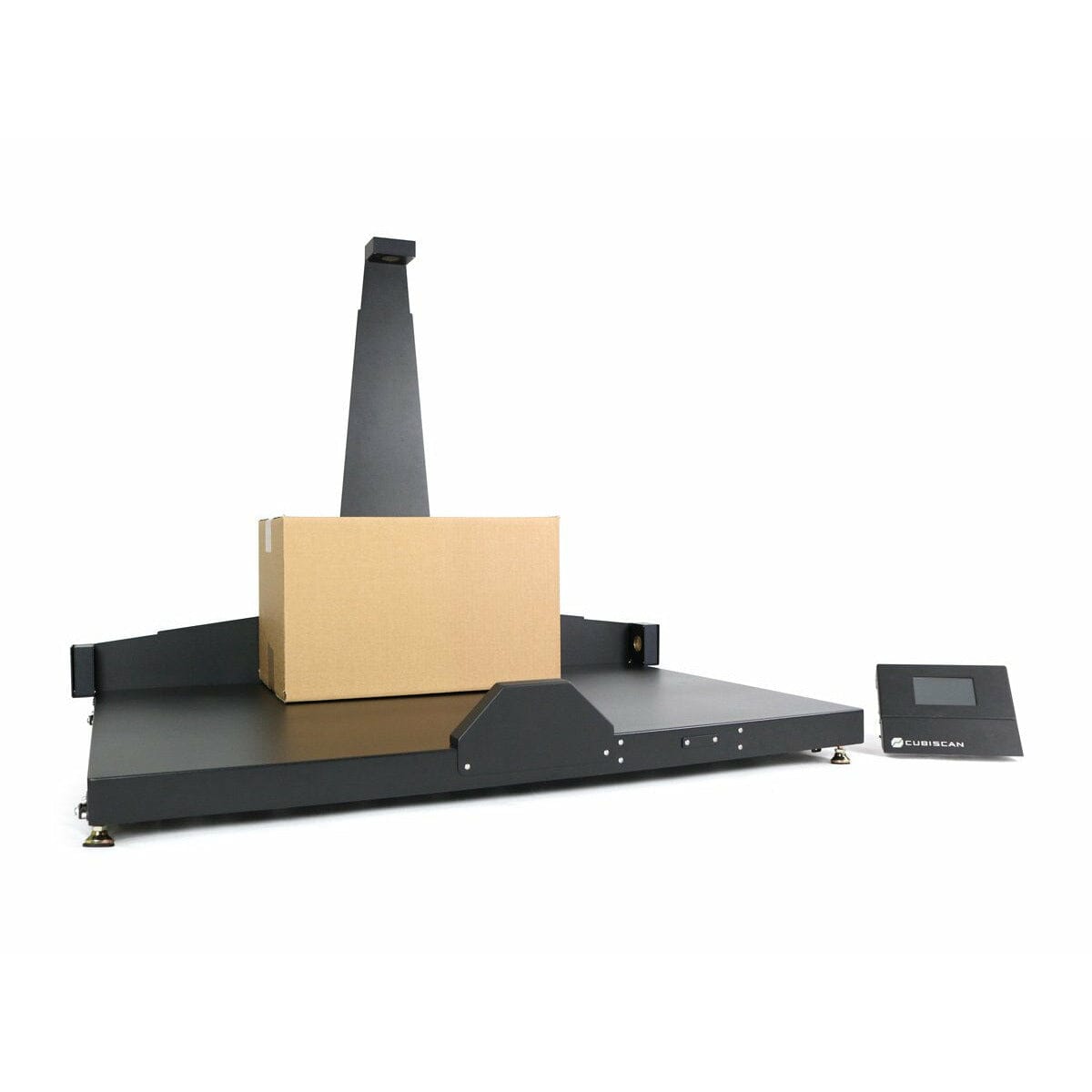

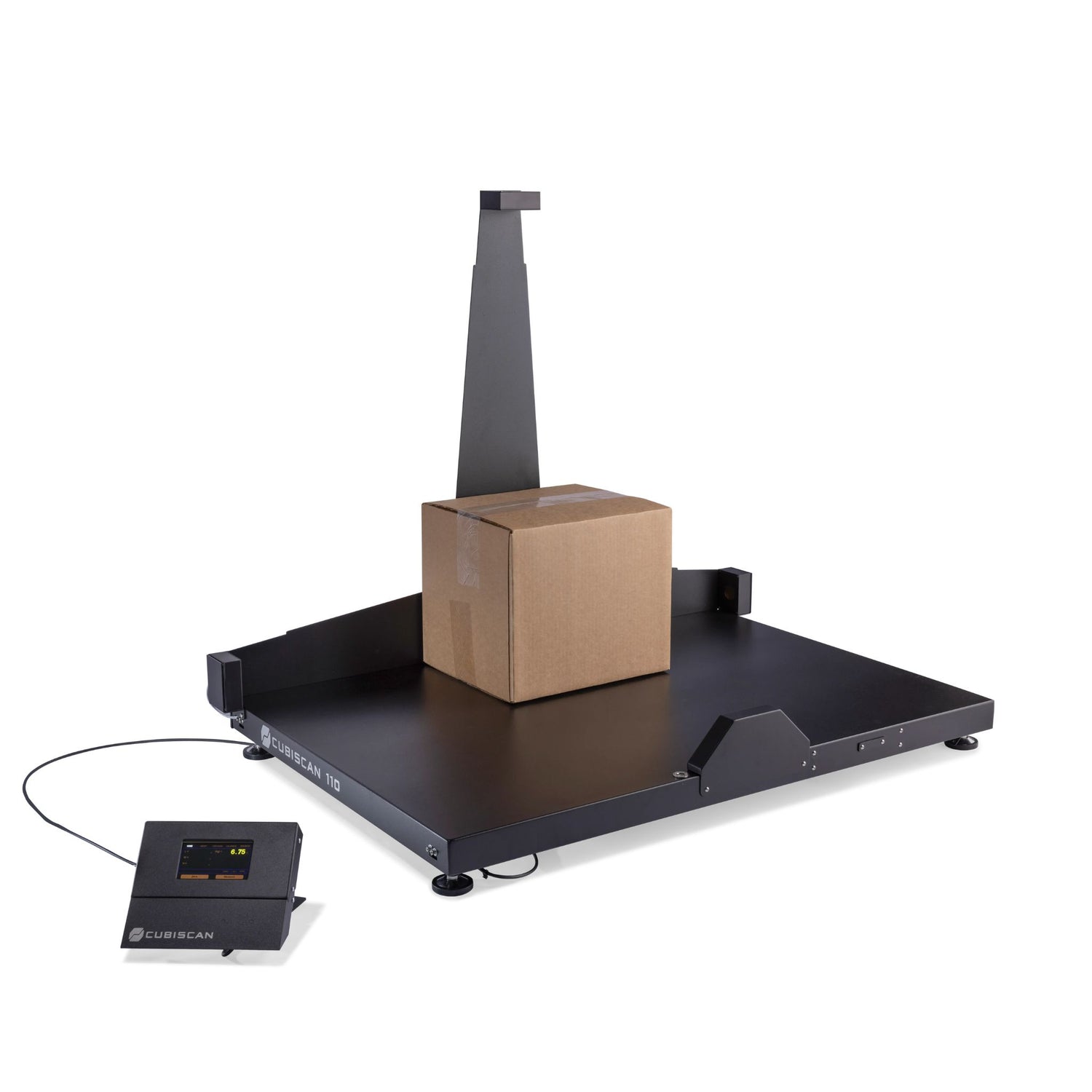

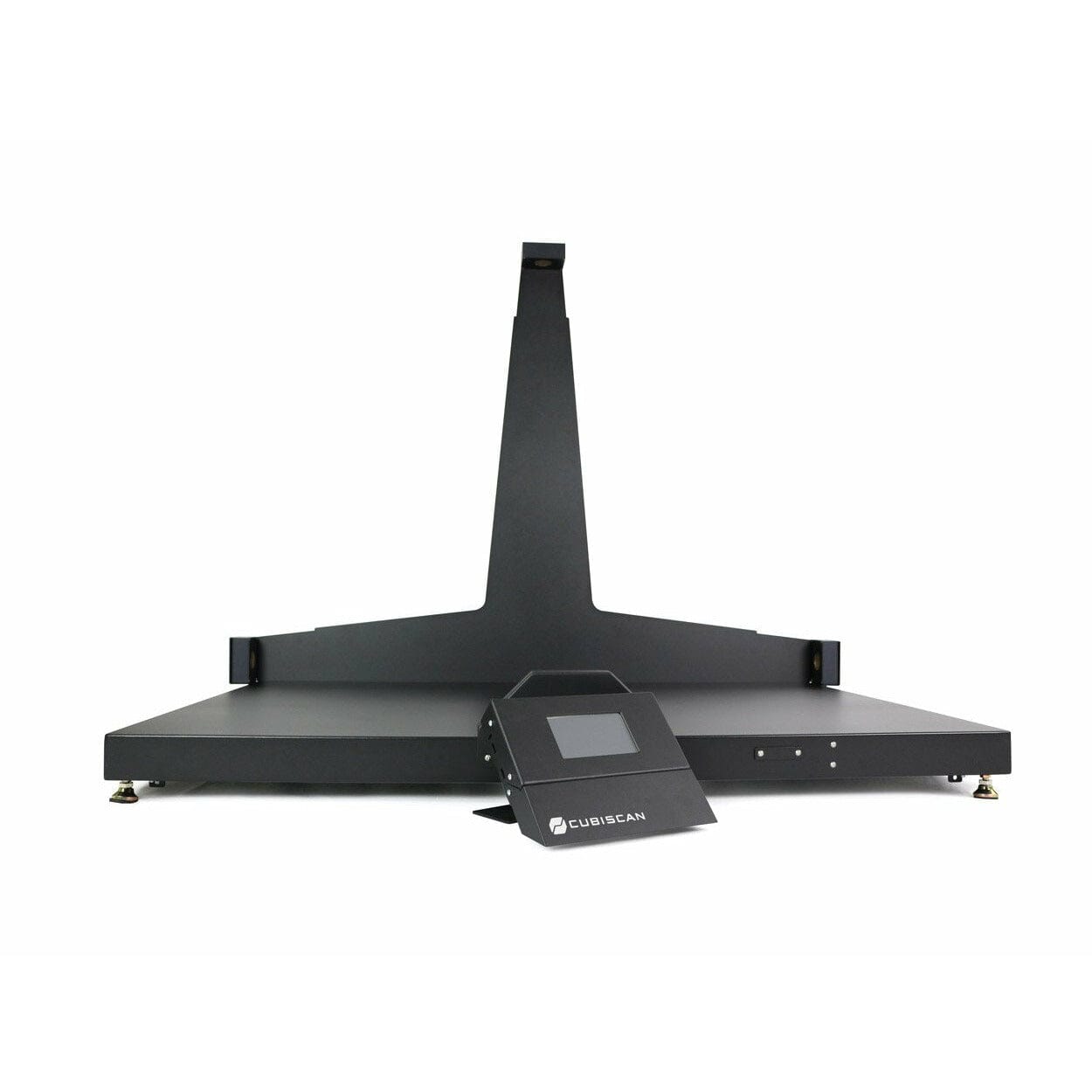

Cubiscan 110

Setting a new standard in static dimensioning and cubing, the Cubiscan 110 offers a new level of flexibility with an ergonomic layout for maximum throughput and productivity. Using length and width sensors on the sides, this dimensioning system allows for pass-through package processing, making it ideal for small to medium parcel manifesting and shipment auditing applications. The power and convenience of its unmatched interface features allow data to be quickly transferred to your shipping or warehouse management system for immediate use.

Notable Features

A detachable digital display allows for finger-tip control and helps to eliminate any vibration from boxes placed on the system. Ground-breaking software gives you numerical dimensions and weight and an instantaneous, three-dimensional graphical representation of the parcel being measured. Let the Cubiscan 110 show you what hundreds of users already know. Time is money. And so is space. Make the best use of both.

Call us today and learn more about how the Cubiscan 110 can eliminate costly charge-backs and make a difference in the most important aspect of your business: the bottom line.

Download the CubiScan 110 brochure.

Dynamic Precision

With a maximum measurement range of 30 x 24 x 36 inches (762 x 610 x 914 cm) and a net weight capacity of 100 lbs (50 Kg), a measurement resolution of 0.1 inches (2 mm) and weight resolution of 0.1 lbs (0.05 kg), the CubiScan 110 is a perfect combination of dynamic performance with strict precision.

Flexibility

As flexible as they come, the CubiScan 110 can be used as a mobile stand-alone system when deployed on a mobile cart with a portable power supply system, or it can be located between a gravity conveyor for fast and efficient processing of parcels in a fast-paced manifesting of application. With an optional PC-based interface (called Qbitâ„¢), it is capable of managing thousands of data records, working easily with barcode scanning equipment, and label printing devices, and can communicate directly (in batch or real-time mode) with your shipping/manifesting software or warehouse management system.

 PHYSICAL SPECIFICATIONS
Length 48.5 in (123 cm)
Width 32 in (82 cm)
Height  38.5 in (98 cm)
Weight  65.0 lb (29.5 kg)
MEASURING CAPACITIES
Length 0.5 to 36.0 in (1.0 to 90.0 cm)
Width 0.5 to 24.0 in (1.0 to 60.0 cm)
Height  0.5 to 30.0 in (1.0 to 75.0 cm)
Measurement Increment  0.1 in (2 mm)
Measurement Time  <2 seconds
Weight Capacity  0.05 to 100.0 lb (0.02 to 50.00 kg)
Weight Increment  0.05 lb (0.02 kg)
OTHER
Data Connections  Serial (2), Ethernet (1), USB-B (1)
Humidity  0 to 90% non-condensing
Measuring Sensor  Ultrasound
Operating Temperature  14º to 104º F (-10º to 40º C)
Power Requirements  100-240 VAC, 47-63 Hz, 0.15 A
Weight Sensor  Four Load Cells


    Cubiscan 110

    Setting a new standard in static dimensioning and cubing, the Cubiscan 110 offers a new level of flexibility with an ergonomic layout for maximum throughput and productivity. Using length and width sensors on the sides, this dimensioning system allows for pass-through package processing, making it ideal for small to medium parcel manifesting and shipment auditing applications. The power and convenience of its unmatched interface features allow data to be quickly transferred to your shipping or warehouse management system for immediate use.

    Notable Features

    A detachable digital display allows for finger-tip control and helps to eliminate any vibration from boxes placed on the system. Ground-breaking software gives you numerical dimensions and weight and an instantaneous, three-dimensional graphical representation of the parcel being measured. Let the Cubiscan 110 show you what hundreds of users already know. Time is money. And so is space. Make the best use of both.

    Call us today and learn more about how the Cubiscan 110 can eliminate costly charge-backs and make a difference in the most important aspect of your business: the bottom line.

    Download the CubiScan 110 brochure.

    Dynamic Precision

    With a maximum measurement range of 30 x 24 x 36 inches (762 x 610 x 914 cm) and a net weight capacity of 100 lbs (50 Kg), a measurement resolution of 0.1 inches (2 mm) and weight resolution of 0.1 lbs (0.05 kg), the CubiScan 110 is a perfect combination of dynamic performance with strict precision.

    Flexibility

    As flexible as they come, the CubiScan 110 can be used as a mobile stand-alone system when deployed on a mobile cart with a portable power supply system, or it can be located between a gravity conveyor for fast and efficient processing of parcels in a fast-paced manifesting of application. With an optional PC-based interface (called Qbitâ„¢), it is capable of managing thousands of data records, working easily with barcode scanning equipment, and label printing devices, and can communicate directly (in batch or real-time mode) with your shipping/manifesting software or warehouse management system.

     PHYSICAL SPECIFICATIONS
    Length 48.5 in (123 cm)
    Width 32 in (82 cm)
    Height  38.5 in (98 cm)
    Weight  65.0 lb (29.5 kg)
    MEASURING CAPACITIES
    Length 0.5 to 36.0 in (1.0 to 90.0 cm)
    Width 0.5 to 24.0 in (1.0 to 60.0 cm)
    Height  0.5 to 30.0 in (1.0 to 75.0 cm)
    Measurement Increment  0.1 in (2 mm)
    Measurement Time  <2 seconds
    Weight Capacity  0.05 to 100.0 lb (0.02 to 50.00 kg)
    Weight Increment  0.05 lb (0.02 kg)
    OTHER
    Data Connections  Serial (2), Ethernet (1), USB-B (1)
    Humidity  0 to 90% non-condensing
    Measuring Sensor  Ultrasound
    Operating Temperature  14º to 104º F (-10º to 40º C)
    Power Requirements  100-240 VAC, 47-63 Hz, 0.15 A
    Weight Sensor  Four Load Cells
