Cubiscan 1100 AKL
Cubiscan 1100 AKL is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description

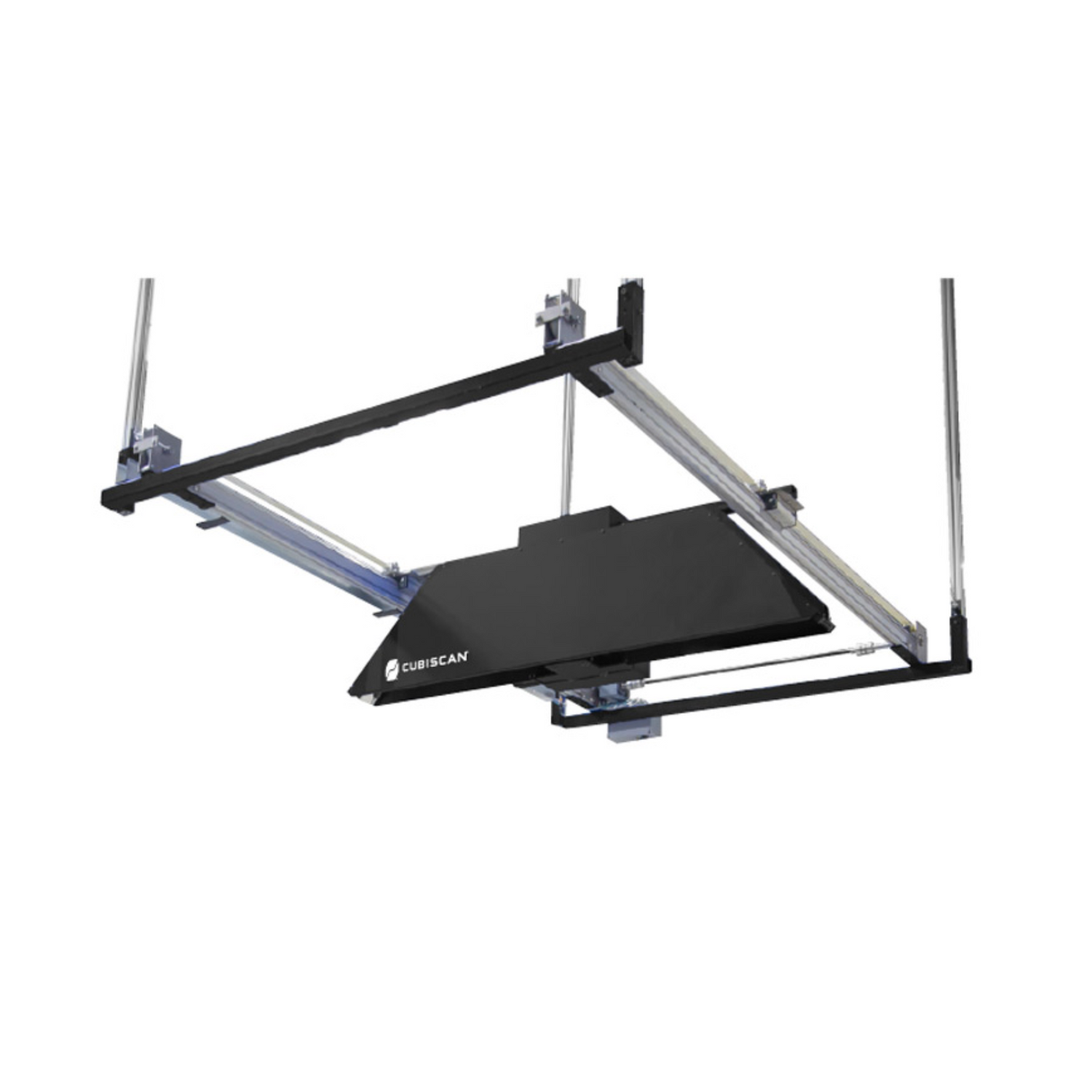

Cubiscan 1100 AKL Pallet Dimensioner
The Cubiscan 1100-AKL is an overhead pallet dimensioner that measures palletized freight of virtually any shape, color, and packaging material. It is a low-cost version of the Cubiscan 1200-AKL with a reduced measurement area. It uses infrared lasers to dimension freight, providing a more accurate measurement than 3D camera technology.
Parcel Types: Palletized freight, large crates, large irregular items
Applications: Storage, outbound shipping, revenue recovery
Measurement capacity: 6’4″L x 5’W x 8.6″H
Specifications
| Physical Specifications | Measuring Capacities | Other |
|
Length 72 in (1820 mm) Width 115 in (2900 mm) Height 26.5 in (670 mm) Suspend Weight <400 lb (<200 kg) Recommended Ceiling Height >150 in (>3800 mm) |
Measurement Increment +/- 0.5 in |
Measurement Time 3-4 seconds Power Requirements 95-240 vac, 47-63 hz, single phase Operating Temperature 32° to 104° f (0° to 40° c) |
