Floor Scale with Forklift Portability Frame
Floor Scale with Forklift Portability Frame is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description

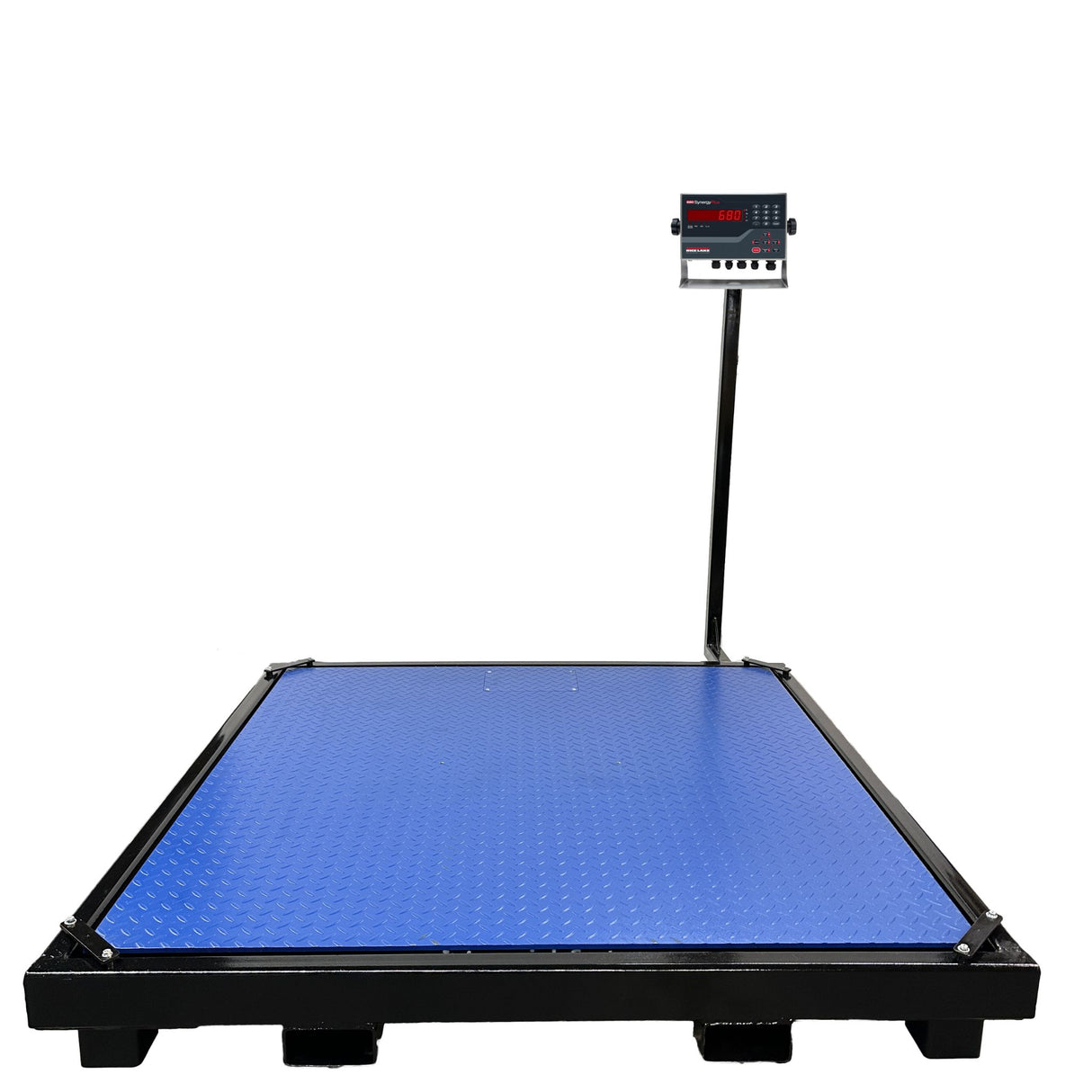

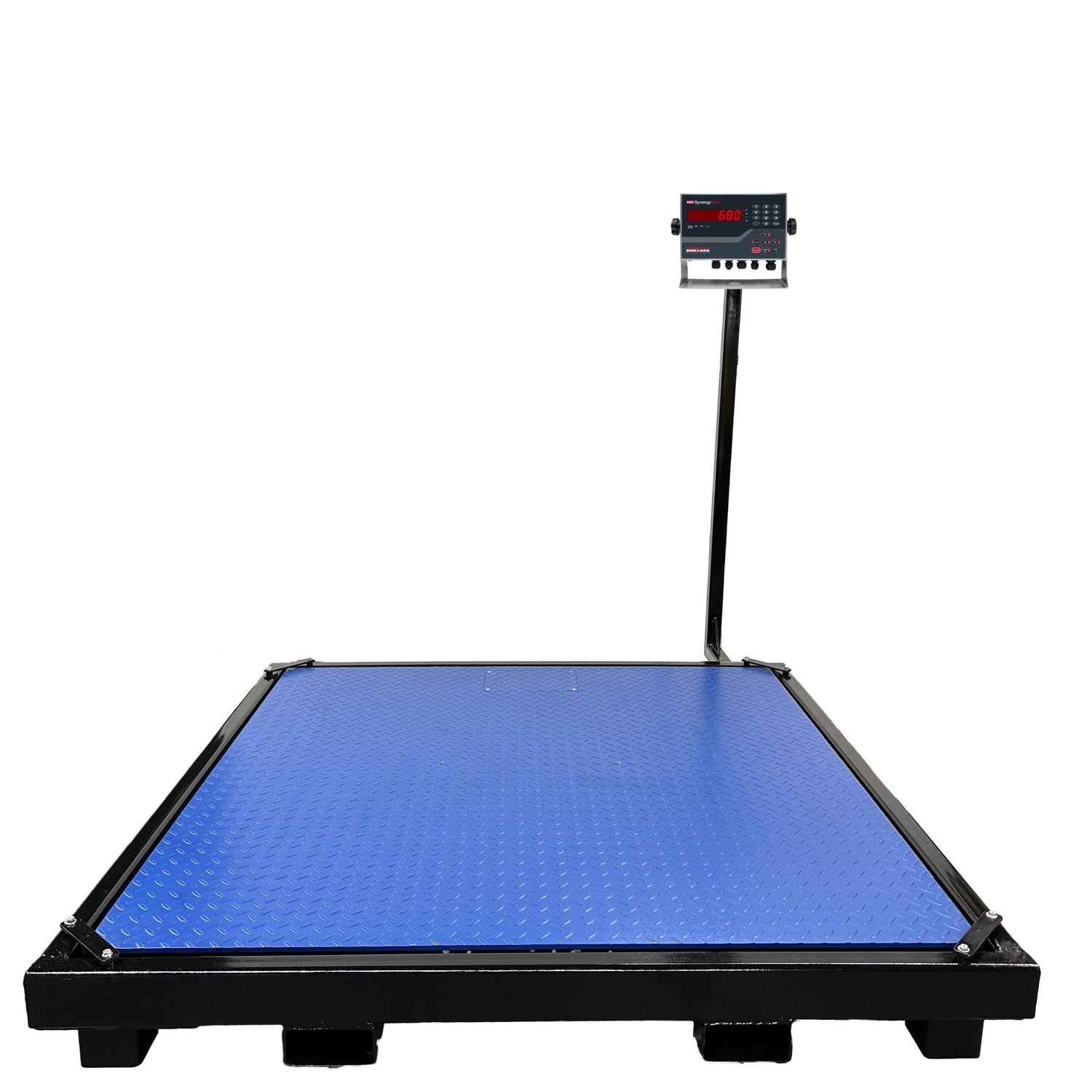

Floor scale with Custom Forklift Portability Frame
5' x 5' floor scale featuring:
• Custom forklift portability frame
• Rice Lake 680 swivel indicator
• Adjustable column- can be positioned anywhere on the platform
• Forklift tubing or channels placed as requested
Notable Features
- Rugged - Durable platform design withstands forklift traffic. 300% overload capacity. 150% end-load capacity. The sum capacity of load cells is twice the scale capacity.
- All-Purpose - Easy to install. Levels with foot adjustment. Easy to relocate. Install above or below ground. Built-in mild or stainless steel. Full line of accessories available.
- Built to the Highest Quality - Uses shear beam load cells. Weights & Measures approvable. Understructure bracing is built with structural steel. Nema IV rated control box enclosure.
Floor Scale Options
- Mild or Stainless steel.
- Custom sizes.
- Precalibrated indicator.
- Smooth or checkerplate
Floor Scale Accessories
- Ramps
- Pit Frames
- Pit Packages
- Bump Guards
- Pit Coping
- Digital Indicators
- All Nema Ratings
Floor Scale Specifications
| Size (ft) | Capacity (lbs) | Height |
|---|---|---|
| 2' x 2' | 1,000 | 3.5" |
| 3' x 3' | 2,000 / 5,000 | 3.5" |
| 4' x 4' | 5,000 / 10,000 | 3.5" |
| 4' x 5' | 5,000 / 10,000 | 3.5" |
| 4' x 6' | 5,000 / 10,000 | 3.5" |
| 5' x 5' | 5,000 / 10,000 | 5.0" |
| 5' x 7' | 10,000 / 20,000 | 5.0" |
