Description
Description

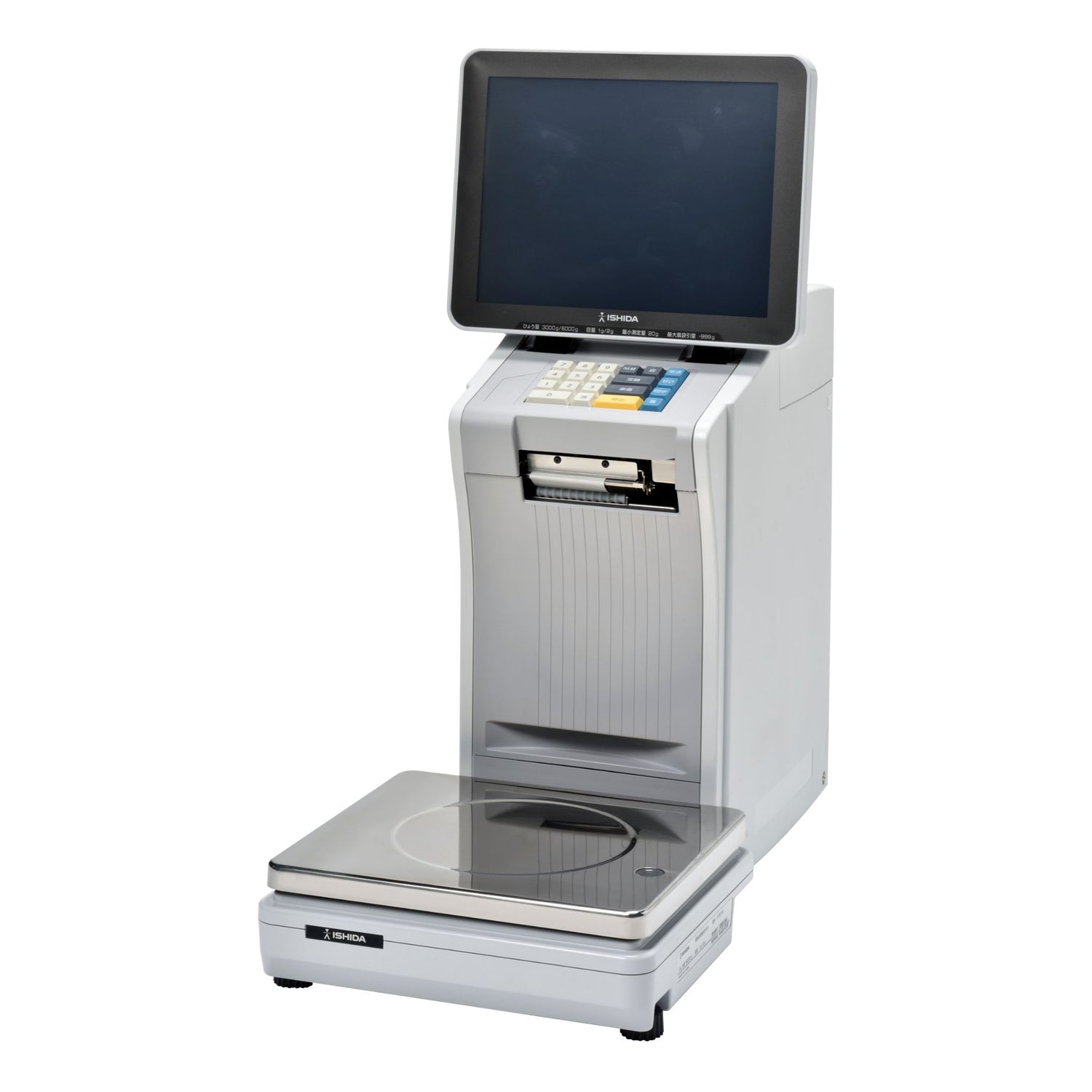

Ishida IP-AI Hand Wrapping System
Download Ishida IP-AI Brochure
Ishida’s IP-Ai PC-based hand-wrapping system is the ideal
complement to high-volume automatic wrappers.The IP-Ai is
capable of fast weighing and print speeds up to 5.9 inches per

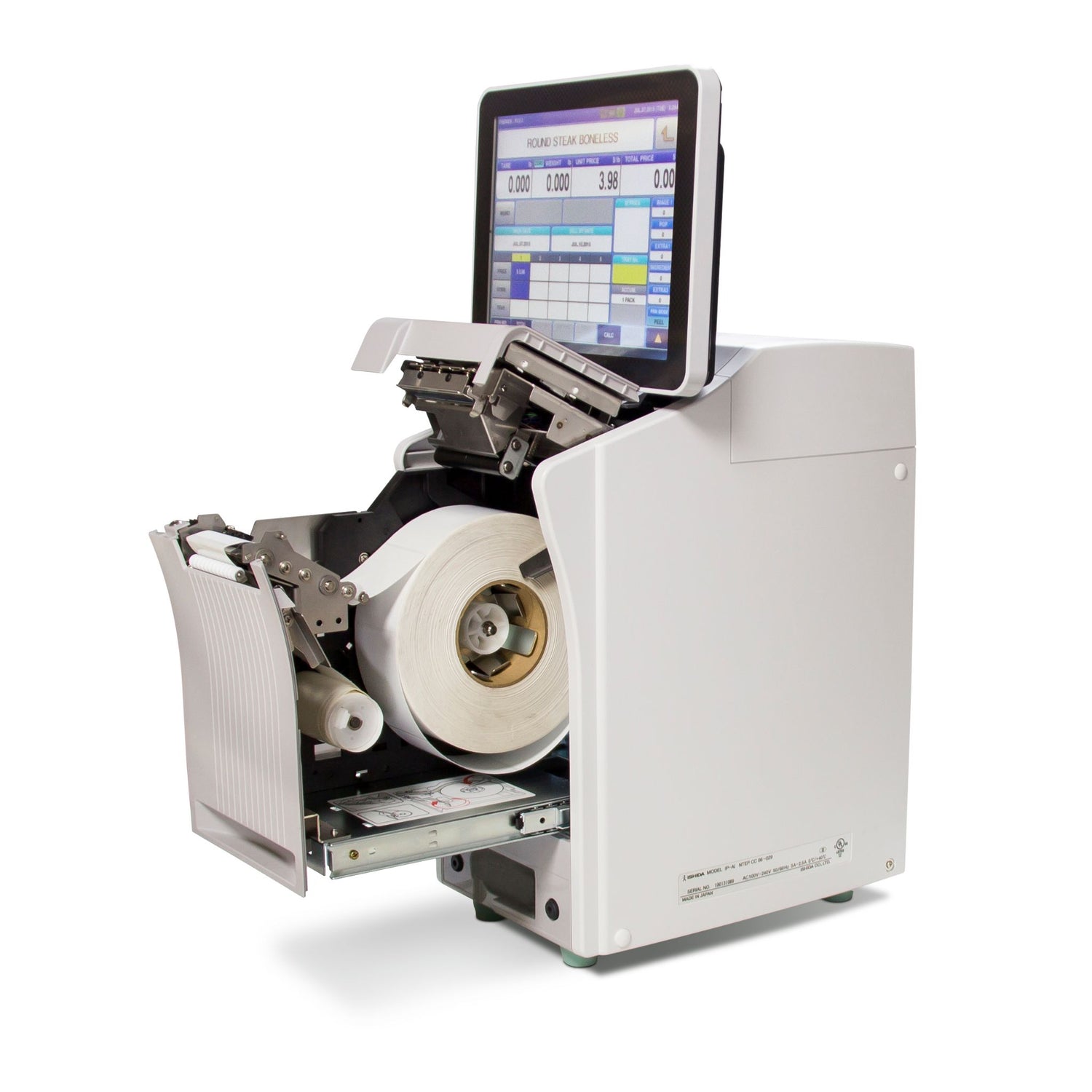

second (150mm/sec). Its front-loading large, nine-inch
label roll capacity keeps businesses up and running longer.
Create eye-catching labels with the ability to store and print
custom graphics.
Designed to enhance visibility and productivity, the large color
touch screen provides easy access to PLUs via category keys.
Networking capability with Ishida’s ScaleLink Pro5 and other
third-party scale management software helps maintain
consistent and accurate pricing.
Standard Features
• Large 12.1-in color touch screen with printer and scale base
• Front-loading, 9-in(230-mm)label roll capacity
• 3-in thermal head
• Prints all legally required safe-handling, COOL and nutritional information
• Stores and prints graphics for custom labeling
• Ethernet communications
• Adjustable touch screen viewing angle
• 19 tactile keys
• 2 GB of memory
• Over 30 selectable fixed bar code formats
• Flexible setup for ergonomic operation
Specifications
-
Weighing Capacity:
0-6 kg x 0.002 kg / 6-15 kg x 0.005 kg -
Operating Environment:
Temperature: 23°F-104°F (-5°C-40°C)
Humidity: 20-85% (no condensation) -
Display Unit:
12.1-in TFT color LCD with LED backlight
SVGA (800×600) -
Display Items:
Tare: Four-digits
Unit Price: Five-digits
Weight: Five-digits
Total Price: Six-digits -
Interface:
USB x4 channel
SD card x1 channel -
Memory Capacity:
2 GB -
Communication:
Static TCP/IP 10/100 Base T Ethernet DHCP -
Print Head:
3 in (80mm) direct thermal (120 d/mm) -
Print Speed:
Up to 5.9 in (150mm) per second -
Label Size:
Width: 1.5-1.1 in (38-80mm)
Length: 1.2-7.9 in (30-200 mm) -
Label Roll:
Inside Diameter: 3.0 in (76 mm) min.
Outside Diameter: 9.0 in (230 mm) max. -
Weight:
Main Body: 42 lb (19 kg)
Scale Unit: 13 lb (6 kg) -
Power Supply:
AC110 V-120 V, 50/60 Hz, 4A -
Power Consumption:
Stand-by: 50 W
In operation: 120 W -
Classification:
NTEP CC06-029
