Easy to Maintain in the Toughest Wash Down Environments!

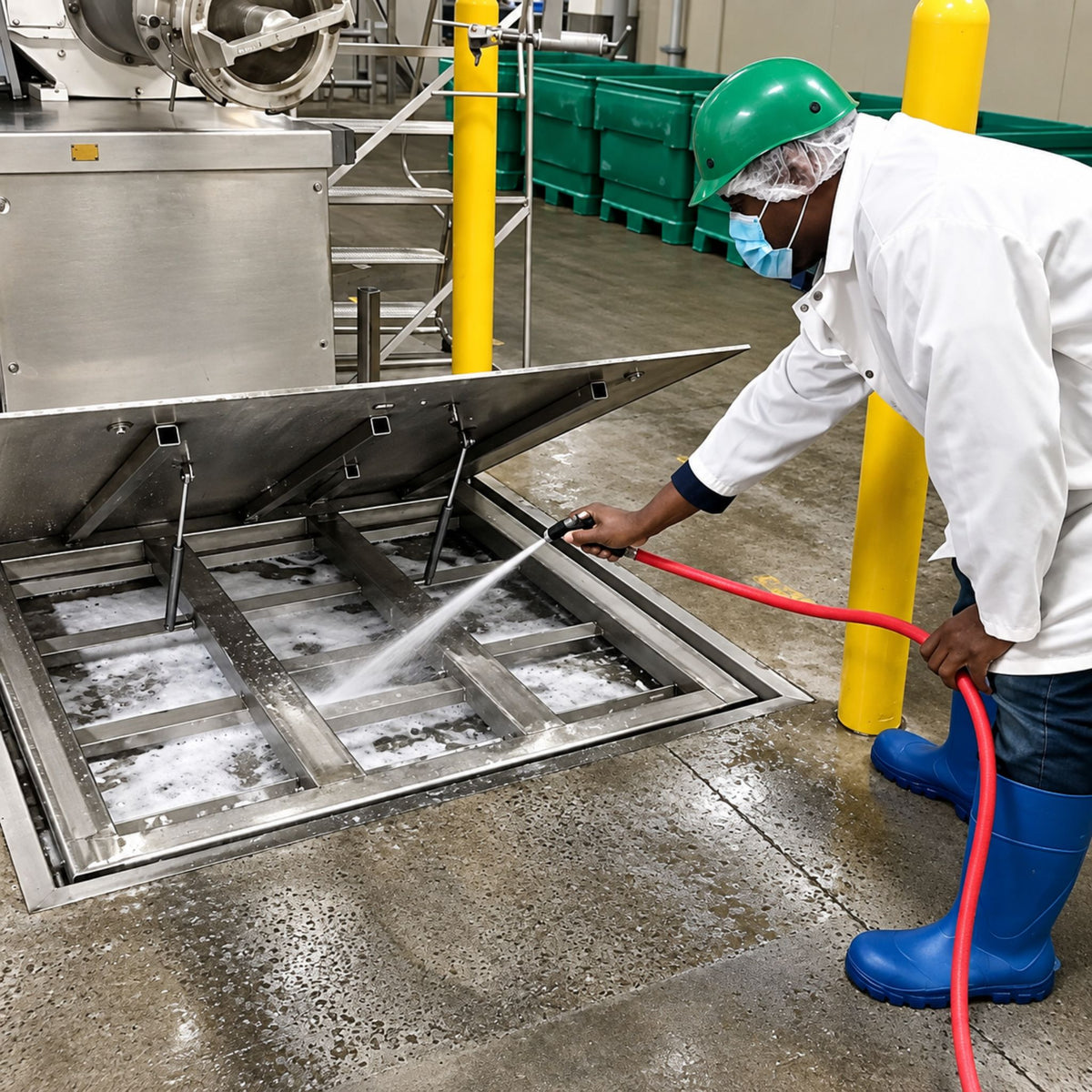

Interweigh's Lift Deck Floor Scales feature a weighing capacity from 1,000 lb to 10,000 lb. The scale has a platform size of 4' x 4' and is up with a checkered steel top deck. Gas shocks make it effortless to raise the scale platform for easy cleaning. Safety supporting rods ensure that the deck in the up position stays up during the cleaning. Installation can include pit construction and coping.
Notable Features
- Weighing capacity - can range from 1,000 lb to 10,000 lb.
- Platform size - can range from 3' x 3' to 8' x 8'.
- Checkered or smooth plate.
- Rugged wash-down design.
- Mild Steel or Stainless Steel tubular frame.
- Stainless Steel hermetically sealed load cells. Remote Nema 4 X summing box.
- Easy cleaning for HACCP inspection.

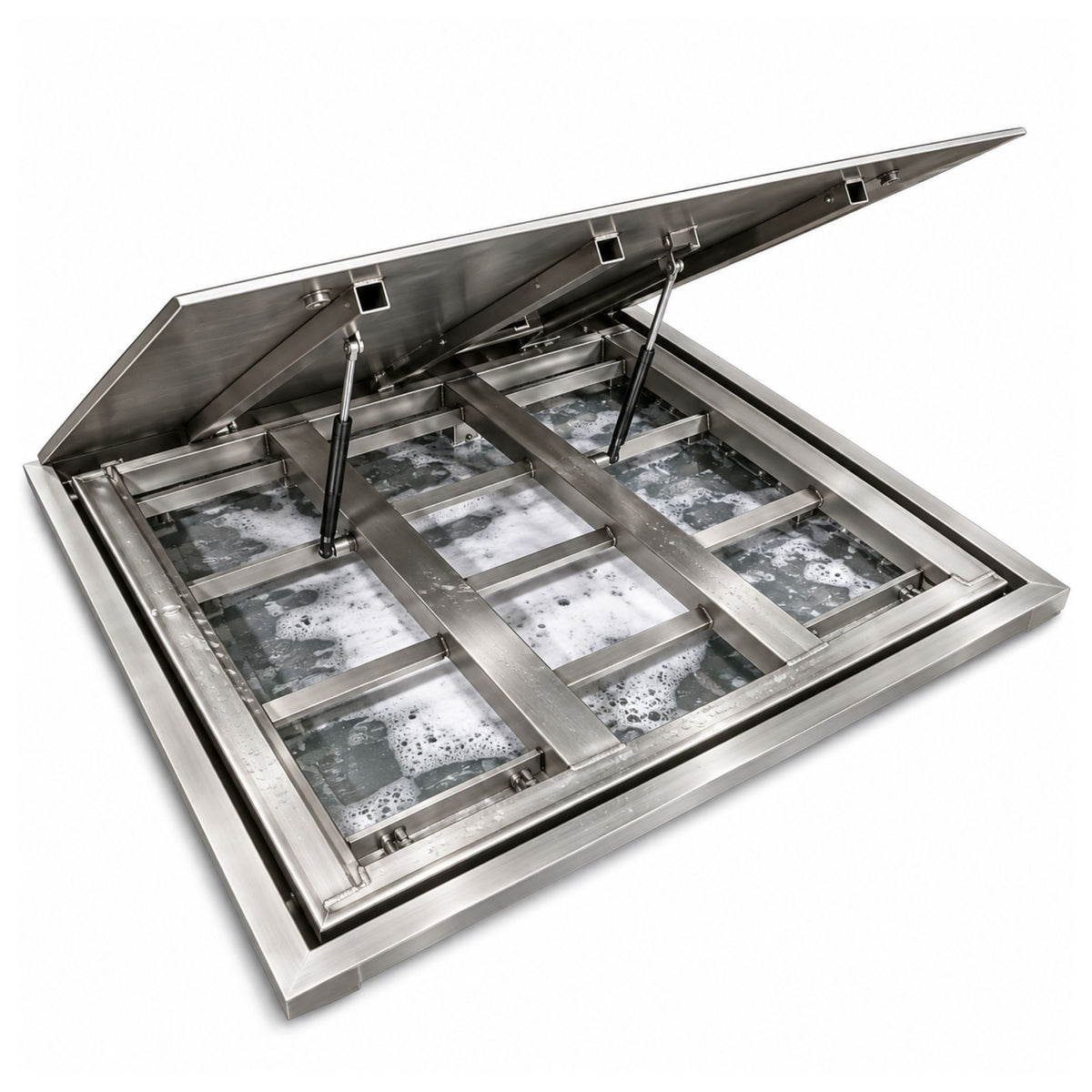

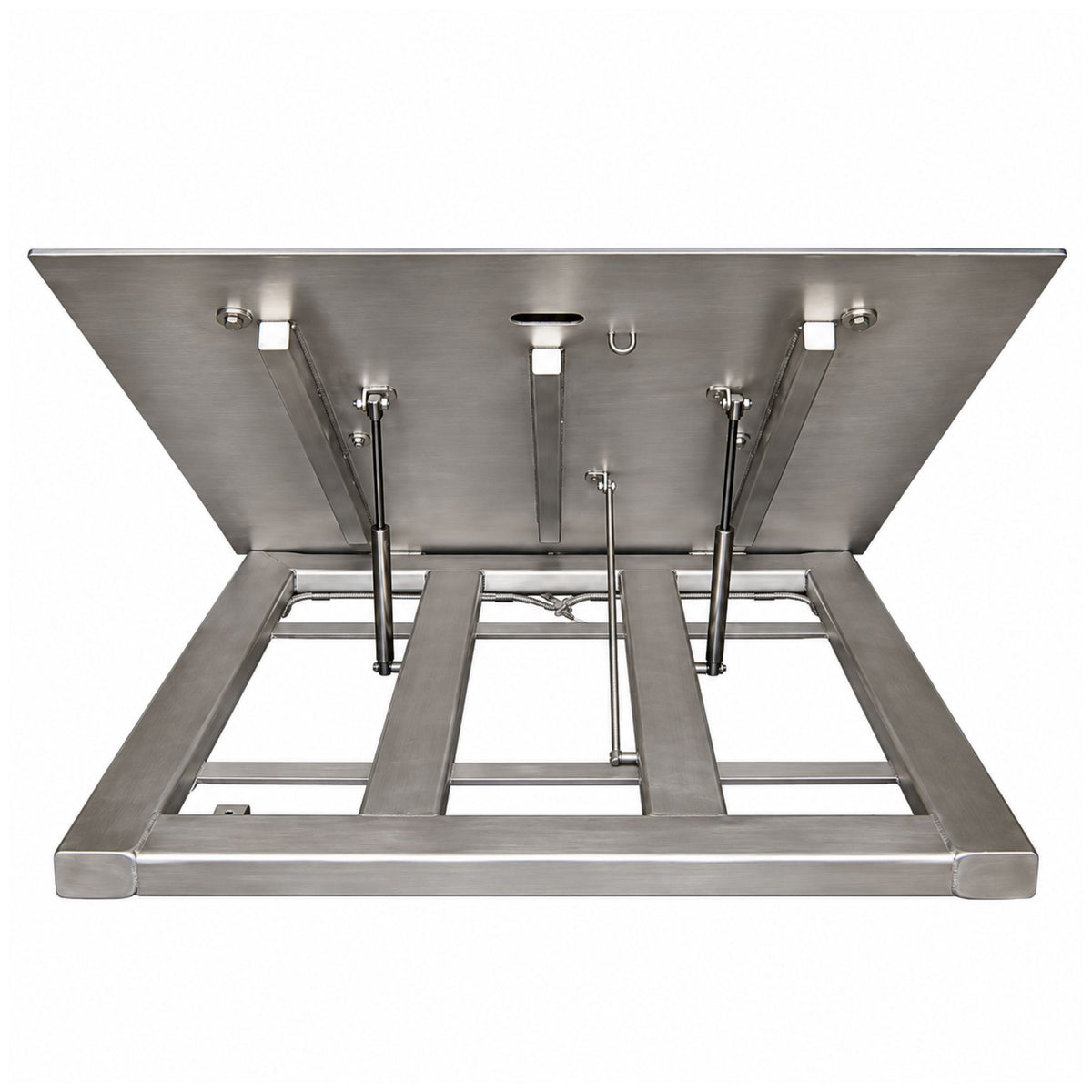

- Gas shocks make it effortless to raise the scale platform for easy cleaning.
- Safety supporting rods ensure that the deck in the up position stays up during the cleaning.
-
( sizes 4'x4' and 5'x5', up to 5000 lb / 2268 kg )
Configuration Options
- Request
- Specifications
- Services
Please use the form below to request a Quote or More Information.
| Dimensions | Capacity (lbs/kg) | Est Shipping Weight (lbs) |
|---|---|---|
| 3' x 3' x 3.5" | 1000/500 | 232 |
| 4' x 4' x 3.5" | 1000/500 | 375 |
| 2.5' x 2.5' x 3.5" | 2000/1000 | 173 |
| 3' x 3' x 3.5" | 2000/1000 | 232 |
| 3' x 3' x 3.5" | 5000/2500 | 232 |
