Cubiscan 25
Cubiscan 25 is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description
Collect Master Data on Small Items and Parts

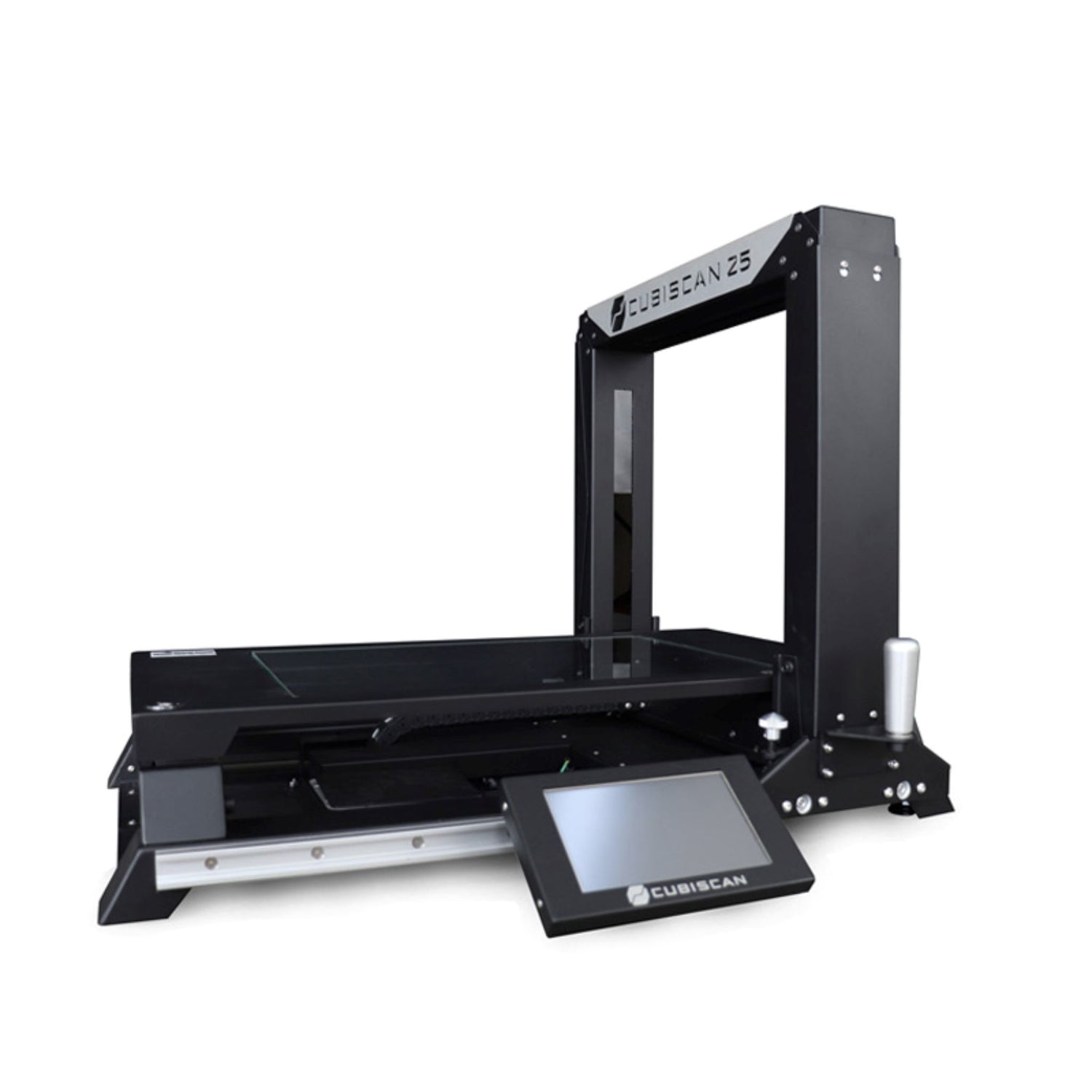

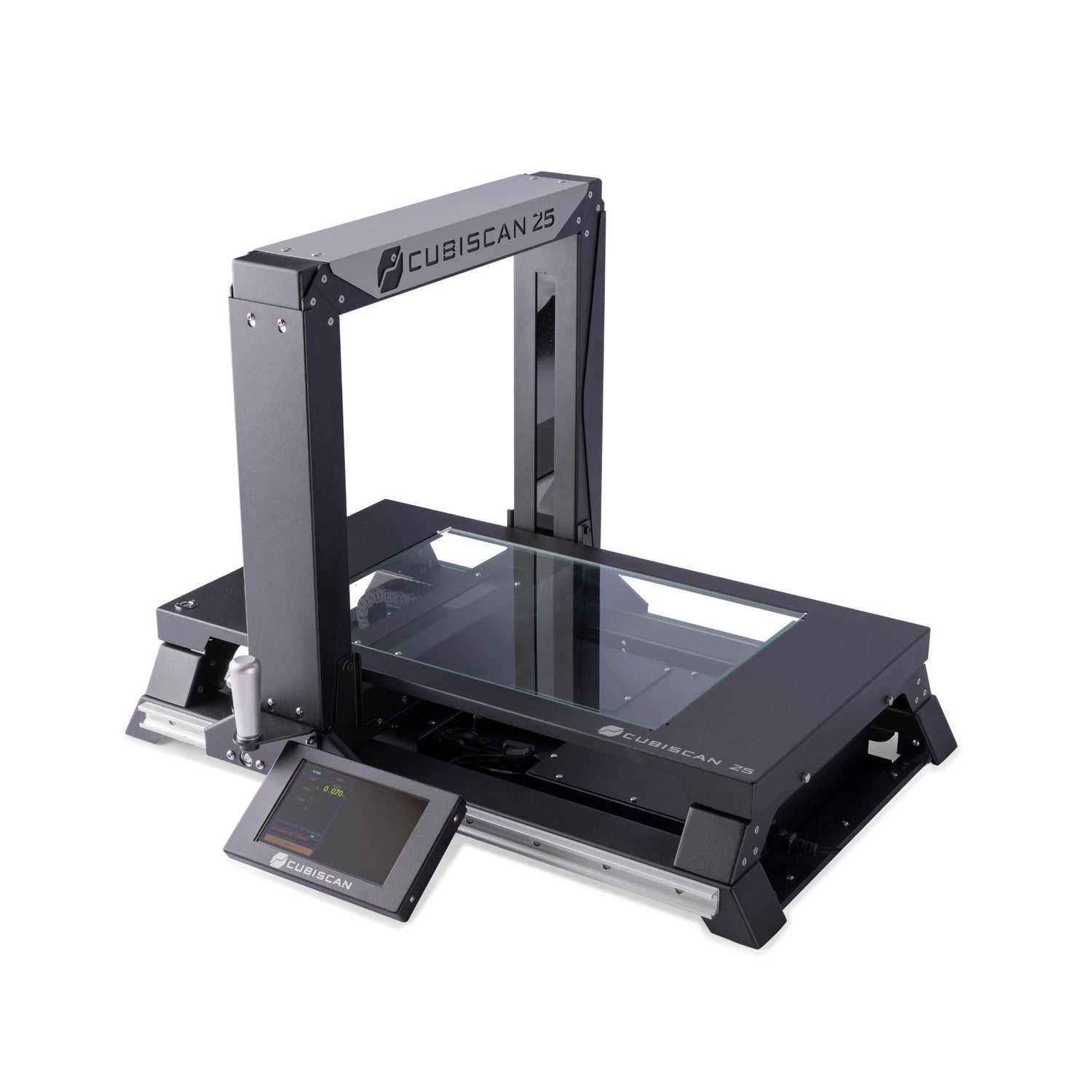

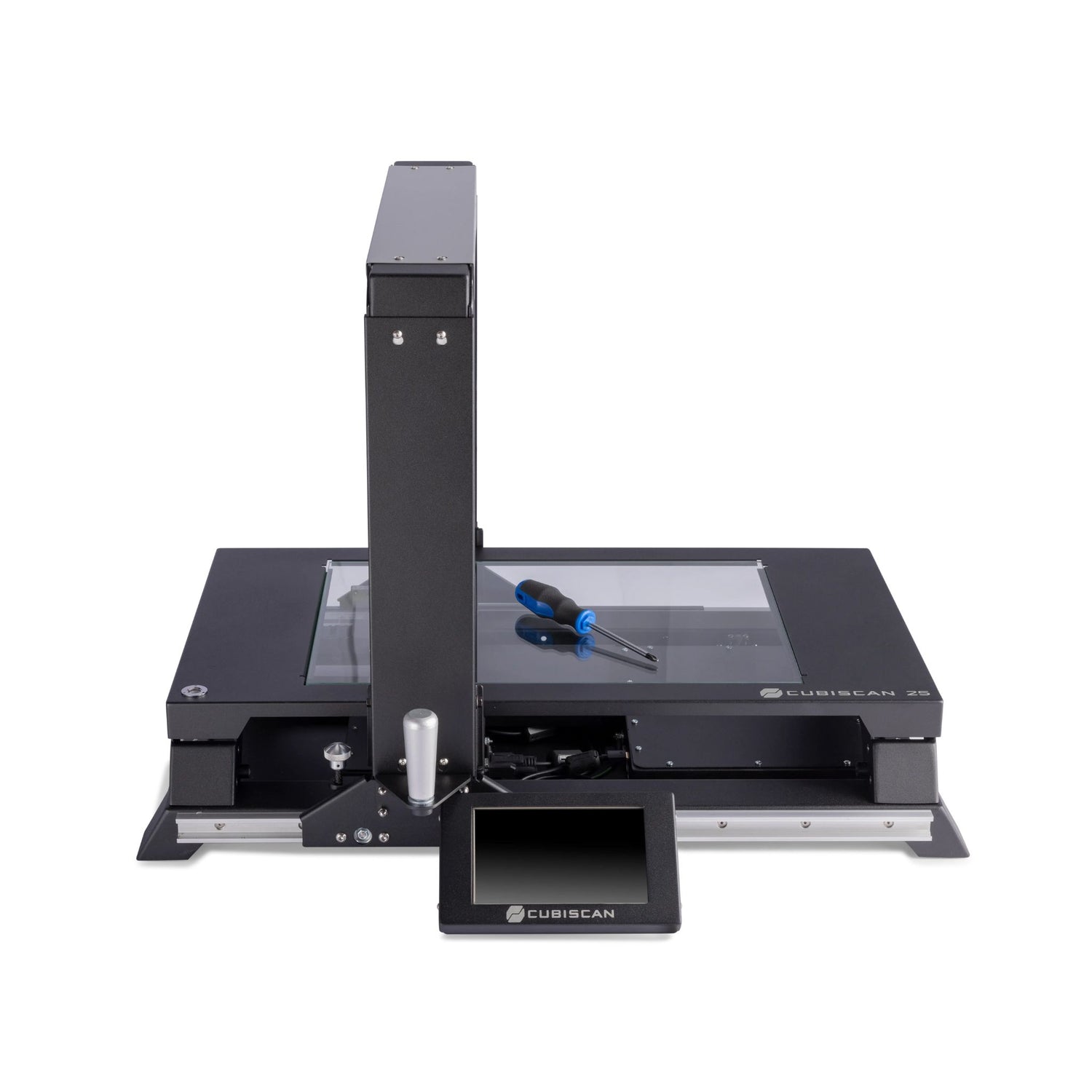

The Cubiscan 25 is designed for precise measurement of small boxes, irregular shapes, and SKUs that require reliable dimensional and weight data. Using infrared sensors and an integrated scale, the system captures accurate master data for distribution, order fulfillment, and packaging operations.
User Benefits-
Accurate master data for case packs, inner packs, and eaches
-
Reliable information for putaway, pick/pack, and fulfillment
-
Quick, consistent dimensions for hard-to-measure SKUs
-
Helps optimize carton selection and reduce shipping costs
Parcel Types
-
Irregular items
-
Cuboidal items
Product Features
-
Infrared light sensing technology
-
0.05″ resolution
-
Built with industrial-grade materials
-
Intuitive touch display for easy use
-
Optional mobile cart for flexible deployment
Main Features
It has an integrated control panel/display and outputs to a user-supplied PC. The capacity for boxes/cases is 24 x 24 x 36 inches with a resolution of 0.1 inches; irregular items are 18 x 18 x 12 inches with a resolution of 0.05 inches. The 25 also includes an integrated, high-accuracy 50 x 0.005 lbs scale.
Each unit has one active serial communication port, one Ethernet port, and one USB port. Proprietary interface software, called Qbitâ„¢, accompanies the system and allows for menu-driven operator control, data storage/transfer and diagnostics. A mobile cart and useful accessories such as a portable power supply, handheld barcode scanner and label printers are available to create a completely mobile cubing, weighing and identification workstation.
Learn more about how the Cubiscan 25 can help you maximize your space allocation for those hard-to-measure products.
| PHYSICAL SPECIFICATIONS | |
| Length | 32 in (81 cm) |
| Width | 27 in (69 cm) |
| Height | 23 in (58 cm) |
| Weight | 62 lb (28 kg) |
| MEASURING CAPACITIES | |
| Length | 0.10 to 18.00 in (0.2 to 45.0 cm) |
| Width | 0.10 to 12.00 in (0.2 to 30.0 cm) |
| Height | 0.10 to 12.00 in (0.2 to 30.0 cm) |
| Measurement Increment | 0.05 in (1mm) |
| Measurement Time | < 5 seconds |
| Object Characteristics | Opaque |
| Weight Capacity | 0.005 to 15.000 lb (0.002 to 6.000 kg) |
| Weight Increment | 0.005 lb (0.002 kg) |
| OTHER | |
| Data Connections | serial (1),ethernet (1), USB (1) |
| Humidity | 0 to 90% non-condensing |
| Measuring Sensor | infrared light beam |
| Operating Temperature | 32º to 104º f (0º to 40ºc) |
| Power Requirements | 100-240 vac, 50-60 hz |
| Weight Sensor | four load cells |
