Cubiscan 75 Pro - Package Dimensioner

Seamlessly Dimension Parcels, Flats, and Polybags Within In Seconds!

CLICK HERE TO SEE HOW IT WORKS

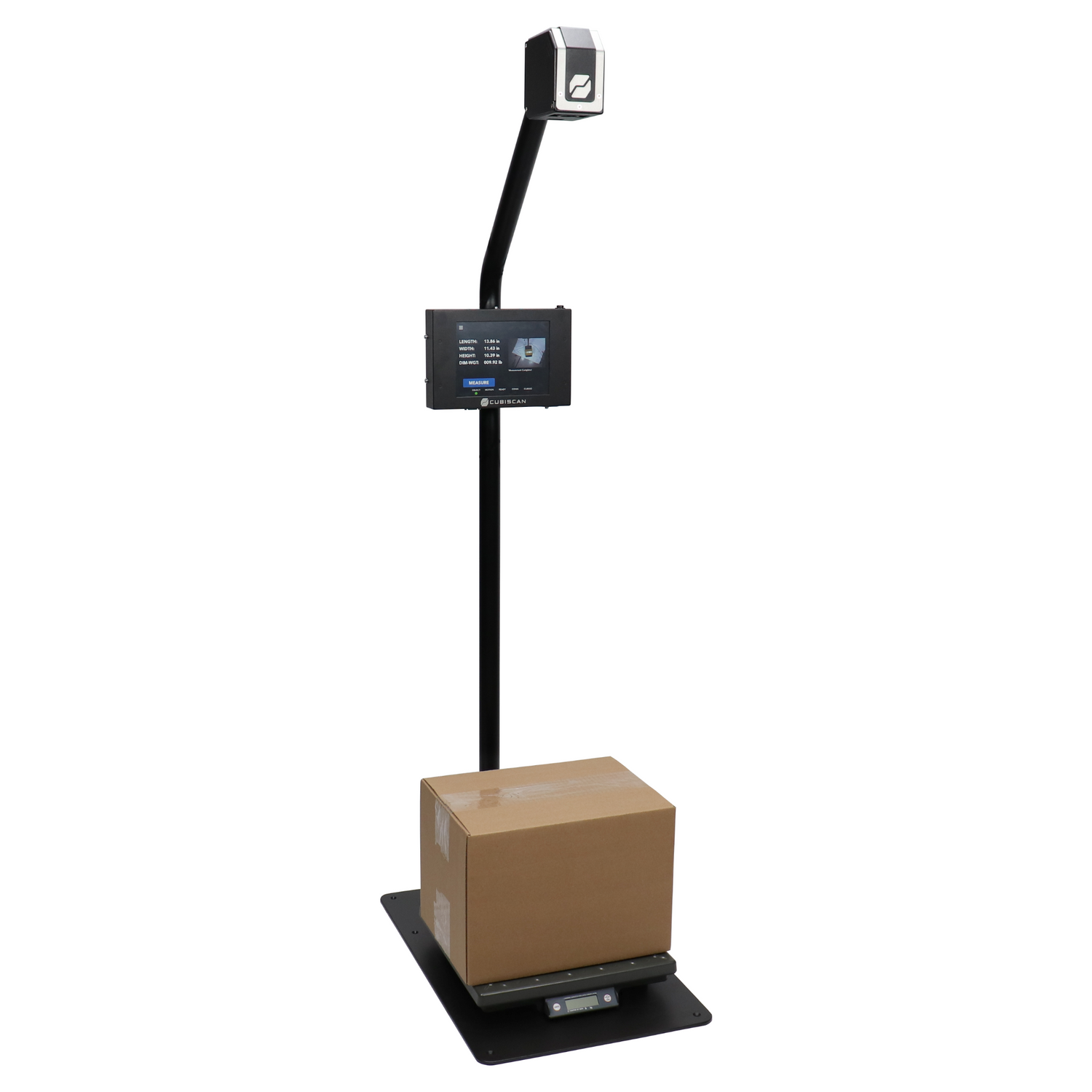

An overhead dimensioning system that quickly and accurately dimensions parcels, polybags, and flats. The measurement process takes 1 to 2 seconds, with no specific orientation needed within the measurement area!

The Cubiscan 75 Pro’s sturdy, low-profile frame, slim configuration, and simple design allow it to easily be integrated into any shipping line or manifesting workstation.

Notable Features

  • Omni-Directional Dimensioning- speed up internal processes by conveniently placing your item within the scanning area in almost any direction and the overhead design will measure its dimensions in seconds!
  • User-Friendly Static Station- no moving parts? thats right, wit its easily maintainable and user-installable features, you can place it directly within your line of operations and begin streamlining your internal processes quickly

  • Instant Integrations- easily integrate with shipping software, a barcode scanner, a label printer, and even an existing scale to create a complete shipping & manifest workstation. Have it all work together seamlessly!
  • Multi-Dimensional Scanning- The Cubiscan 75 pro's updated technology allows you to measure flats, polybags, and more with ease!

The Cubiscan 75 Pro’s sturdy, low-profile frame, slim configuration, and simple design allow it to easily be integrated into any shipping line or manifesting workstation. Get yours today & request a quote!



 Measurement Range  Physical Specifications

Cuboidal:

Length/Width Minimum: 2 in (5cm)

Height Minimum: 2 in (5cm)

Length Maximum: 55 in (140cm)

Width Maximum: 32 in (80cm)

Height Maximum: 36 in (90cm)

Flats:

Height minimum in flats mode: 0, but the minimum displayed height will be 0.5 in (1cm)

(The system will display 0 if the height is below the minimum of 0.5 in)

Length: 32 in (81cm)

Width: 32 in (81cm)

Height: 48 in (121cm)

Weight: 70 lb (32kg)

Performance Specifications

Other

Operating speed: 1-2 seconds

Cuboid increment: 0.2 in (0.5cm)

Irregular increment: 0.5 in (1cm)

Data connections: Ethernet, USB, RS232

Humidity: 0% to 90% non- condensing

Operating temperature: 32º to 104ºf (0º TO 40º C)

Power requirements: 100-240 VAC, 50-60 Hz
