Cubiscan Contour Pro
Cubiscan Contour Pro is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description

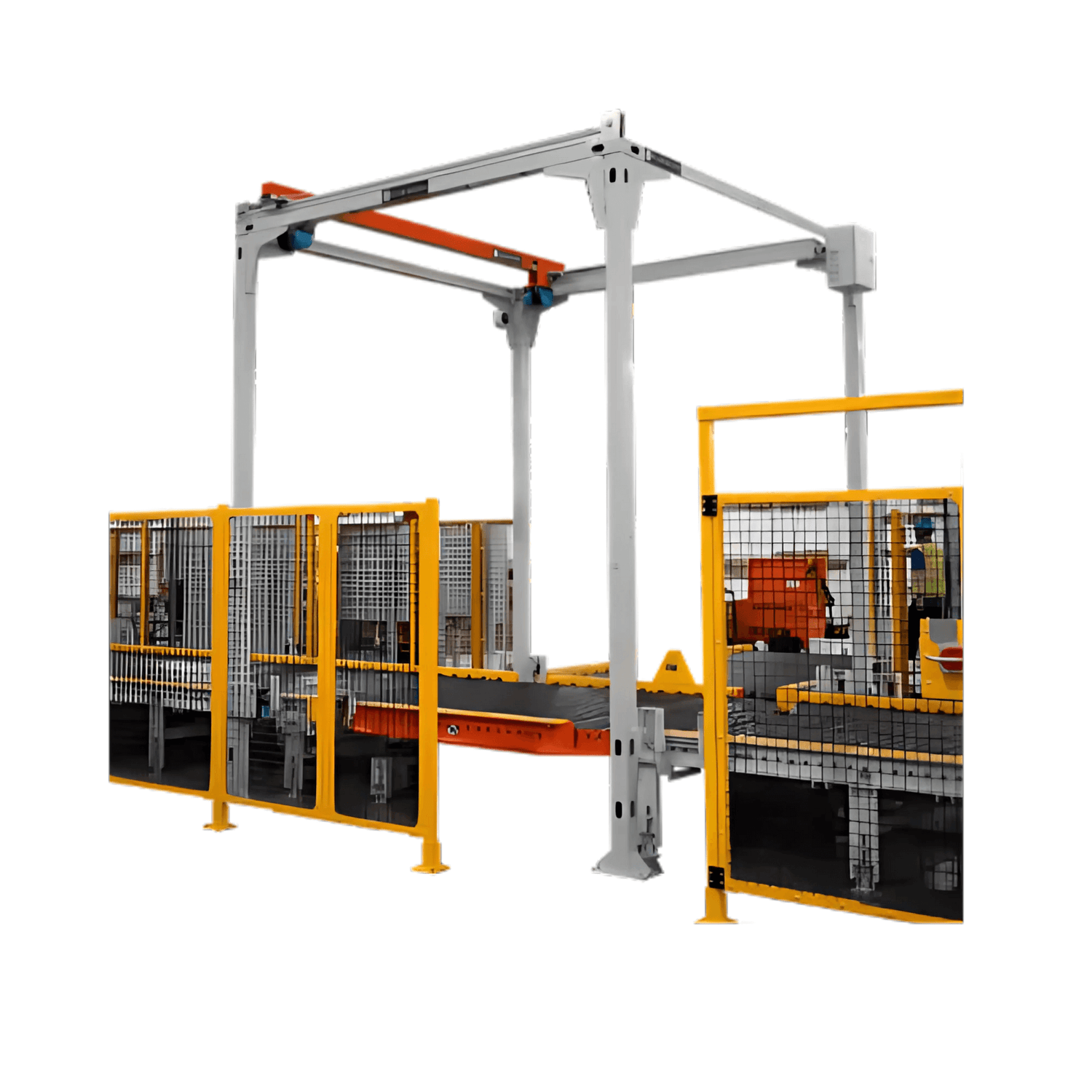

The Cubiscan Contour-AKL is a pallet dimensioning system that excels at measuring protrusions, freight overhang, freight positioning, and tilt within pallet loads. It has two laser-based sensors that view the freight from above and additional sensing that inspects the pallet. An optional third laser sensor can measure the position of the freight in relation to the pallet. Based on that data, the CS Contour-AKL can tell you if the pallet is broken, if the freight wasn’t loaded properly, or if the freight is leaning outside a specified parameter. That data and insight are pivotal when using AGVs (automated guided vehicles) to transport, stack, and store pallets within your warehouse or inside a truck.
Parcel types: Palletized freight, large crates, large irregular items
Applications: Transporting, stacking, & storing palletized freight with AGVs
Measuring capacities: 8’L x 5’W x 6’H
Specifications
| Measuring Capacities | Protrusion Detection |
|
Length 6.0-96.0 in (16.0-243.0 cm) |
Length ≥ 4.0 cm |
|
Width 6.0-60.0 in (16.0-152.0 cm) |
Width ≥ 4.0 cm |
|
Height 6.0-72.0 in (16.0-182.0 cm) |
Height ≥ 1 cm |
|
Dimensional Increment 0.5 in (1.27 cm) |
