Cubiscan S9
Cubiscan S9 is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description
Integrated Pallet Dimensioner
Get the Best Carrier Rates & Eliminate Invoice Surprises!

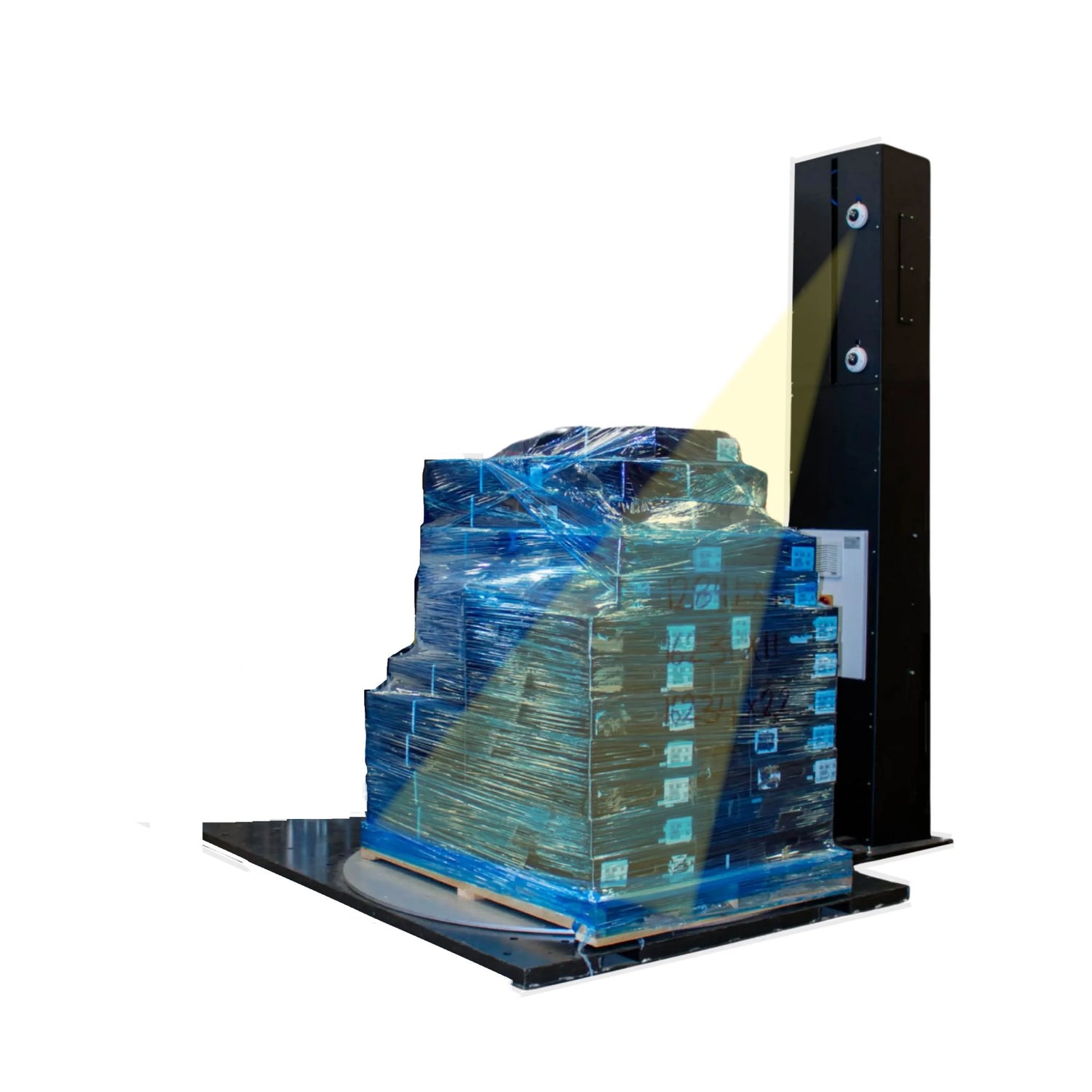

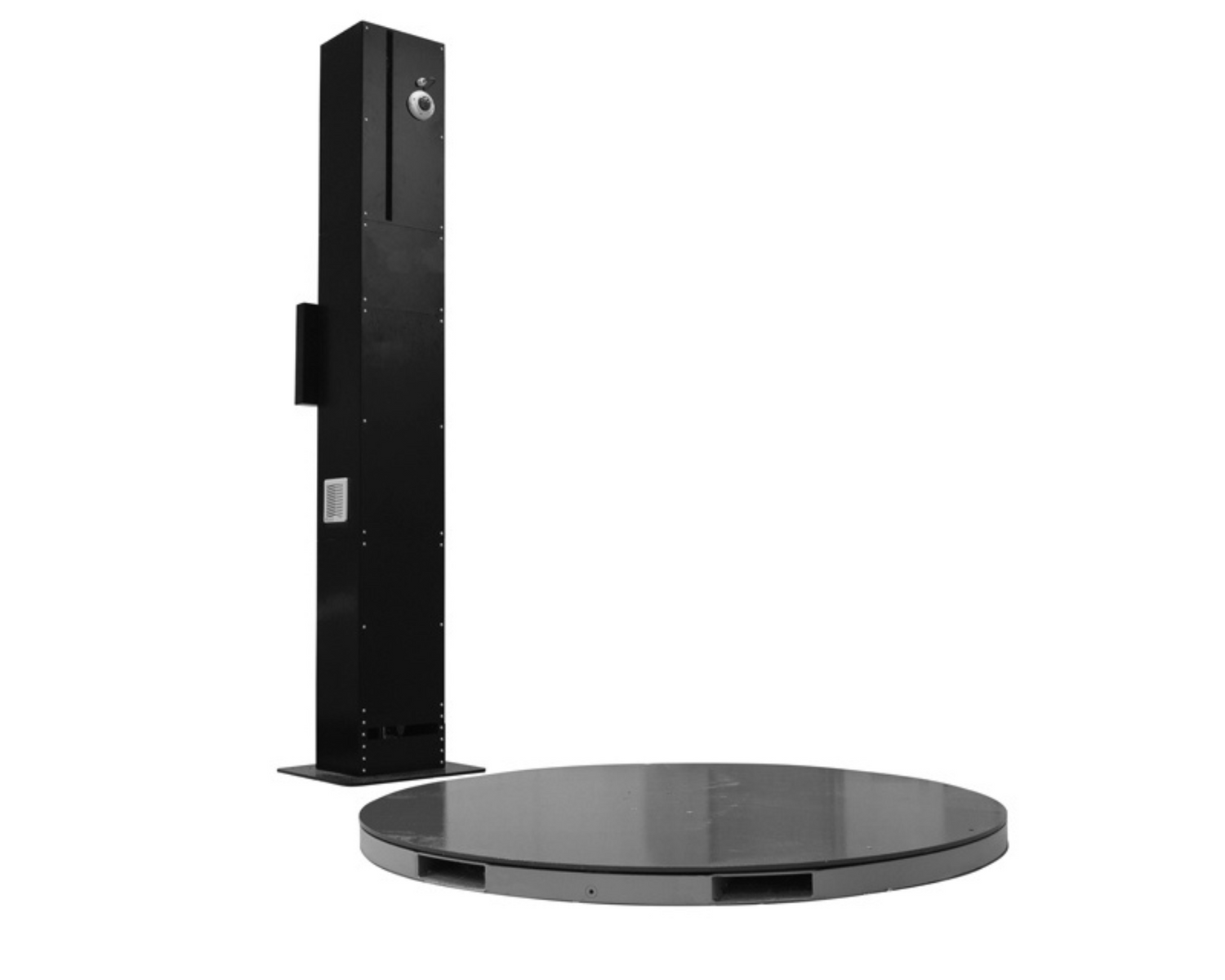

The Cubiscan S9 is a pallet dimensioning tower designed to integrate with stretch wrapping machines that utilize a rotating plate. It uses a laser to detect and measure the pallet as it rotates on the platform and a camera to take a photo of the freight.
Parcel Types: Palletized freight
Applications: Storage and outbound shipping
Measurement capacity: 8’L x 8’W x 8’H
Accuracy and Measurement Capacity
The Cubiscan S9 uses the same LiDar measurement sensor as the Cubiscan 1200 (the dimensioner carriers trust to inspect your freight). It’s the most accurate sensor on the market. It also allows the Cubiscan S9 to dimension pallets 8’L x 8’W x 8’H while they spin at 16rpm. No other dimensioner has that level of accuracy, on that large of freight, spinning at those speeds.
Integrates With Your Stretchwrapper

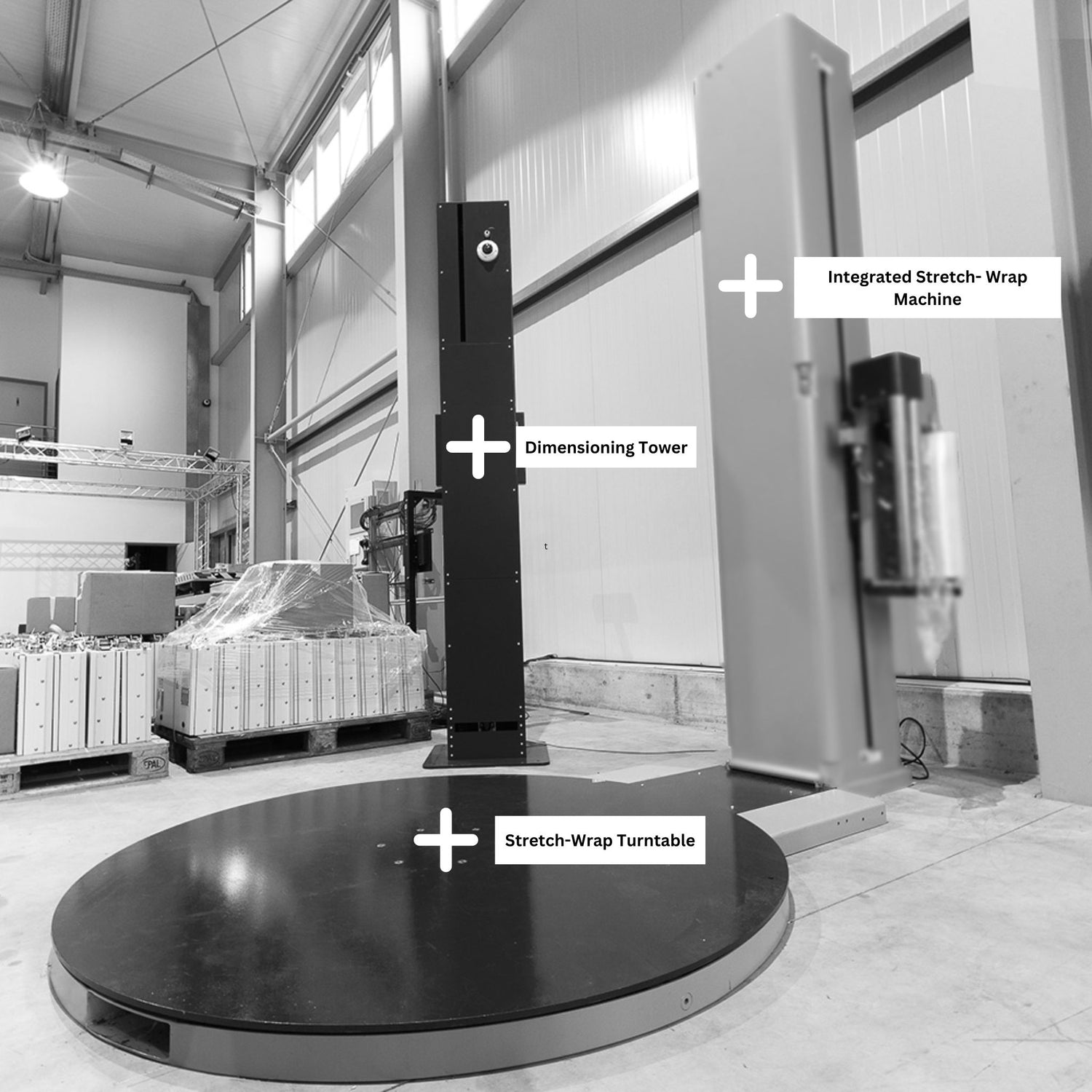

If you’re already wrapping pallets, you don’t have to worry about the Cubiscan S9 adding additional steps to your process. It mounts next to your wrapper and the freight dimensions are collected once the wrapper gets up to full speed. Your associates won’t need to change their workflow at all.
The Cubiscan S9 has many benefits that can complement a new or existing process:
- Precision and speed. +/-0.5-inch accuracy in dimensions included in a process already being performed without adding operators or timely processes.
- Saves warehouse space. No need for an additional area to obtain the needed dimensions.
- Protects freight from carrier chargebacks.
- Easy integration with existing equipment and software.
- Better rates. Precise weight and dims ensure the most accurate carrier pricing.
The Cubiscan S9 Can Help
Eliminate Invoice Surprises
Accurate density data from the Cubiscan S9 means your freight quote and invoice will actually match! No more invoice discrepancies. You’re using the same equipment the carriers use to inspect your freight.
Digital Paper Trail for Disputes
When reclasses, damage, and shortage claims do come up, you have digital data and photos to refute those claims. Time-stamped pallet photos and documented volumetric data is a hard combo to beat when working through disputes.
Automate Your Back Office
Send dimensions, weight, and photos to your WMS, ERP, or TMS to automate your shipping process. Eliminate data entry errors and increase employee morale by providing the tools they need to help grow and improve your outbound LTL.
How The Cubiscan S9 is Different
One Stop Shop
Stretch wrap, dimension, weigh, and photograph your LTL shipments all in one simple step. Send that data to Qbit Cloud and it’ll classify your freight for you.
Accuracy and Measurement Capacity
The Cubiscan S9 uses the same LiDar measurement sensor as the Cubiscan 1200 (the dimensioner carriers trust to inspect your freight). It’s the most accurate sensor on the market. It also allows the Cubiscan S9 to dimension pallets 8’L x 8’W x 8’H while they spin at 16rpm. No other dimensioner has that level of accuracy, on that large of freight, spinning at those speeds.
Integrates With Your Stretchwrapper
you don’t have to worry about the Cubiscan S9 adding additional steps to your process. It mounts next to your wrapper and the freight dimensions are collected once the wrapper gets up to full speed. Your associates won’t need to change their workflow at all.

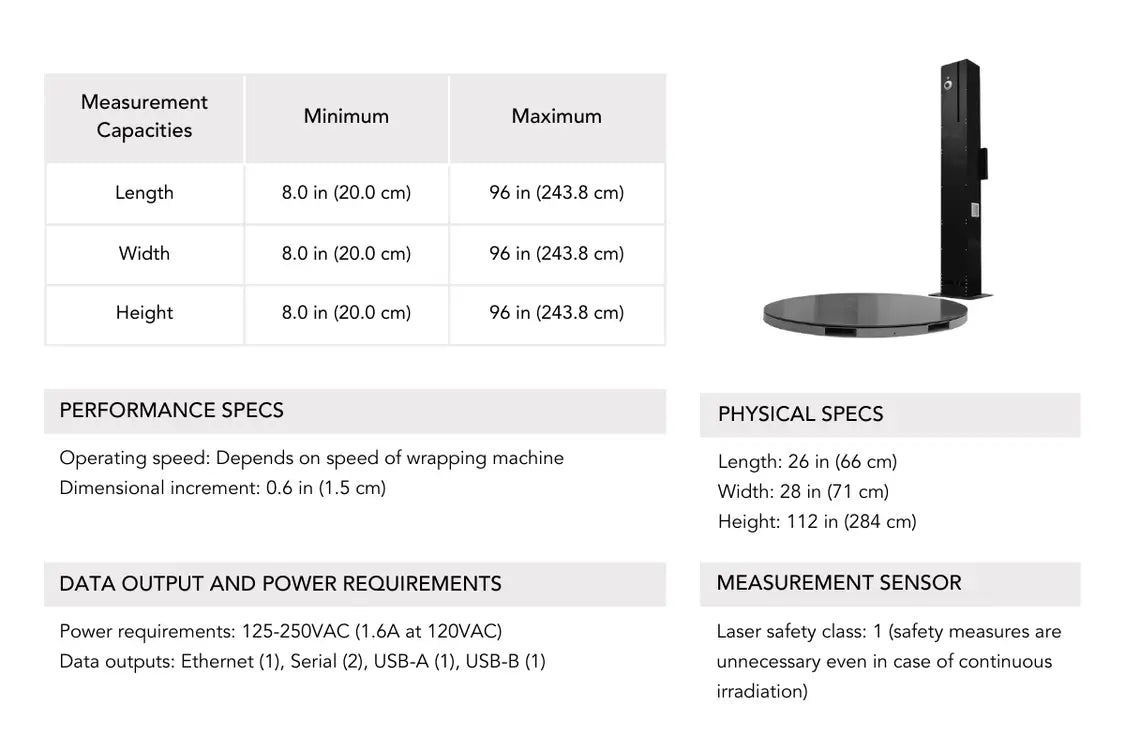

Technical Specifications
| Physical Specifications | Measuring Capacities | Other |
|
LENGTH WIDTH HEIGHT WRAPPING MACHINE |
MAX MEASUREMENT AREA MIN PACKAGE SIZE
|
DATA OUTPUT HUMIDITY MEASURING SENSOR MEASUREMENT TIME POWER REQUIREMENTS USER INTERFACE |
