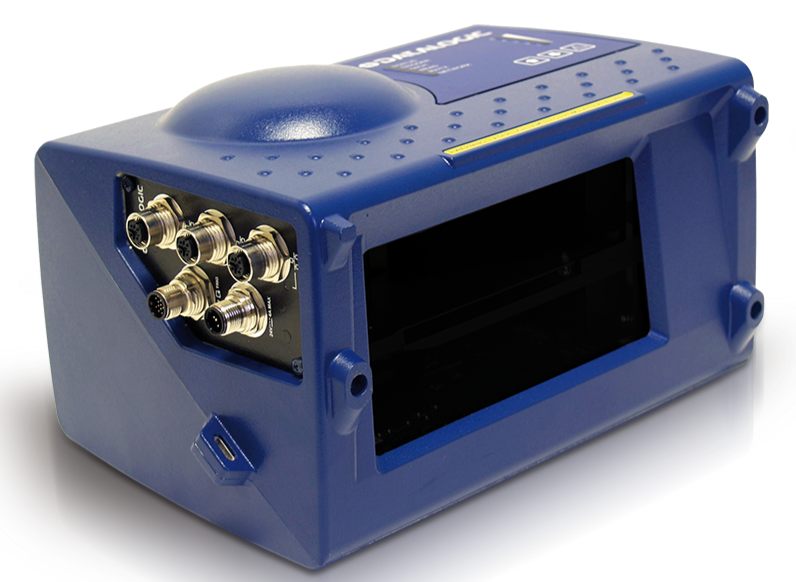

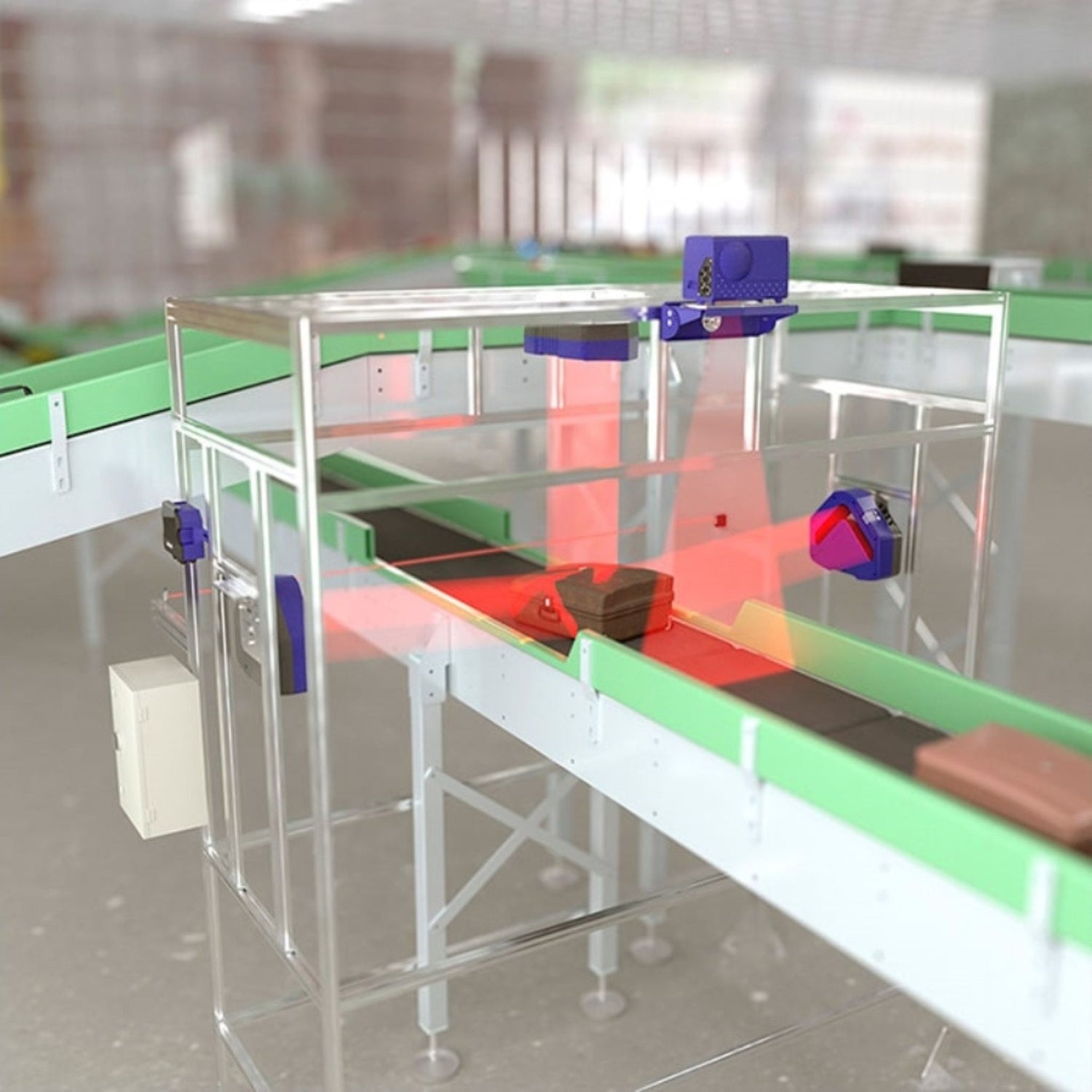

The DM3610 is a compact, overhead dimensioning unit that automatically measures the length, width, and height of packages as they are transported on a conveyor. The self-contained dimensioner is designed for simple installation and enables a range of applications across multiple markets, including parcel, warehousing & distribution.

CONFIGURATION DM3610 1-HEAD SOLUTION DM3610 2-HEAD SOLUTION

Material flow

Singulated

Cuboidal Gap ≥ 20 mm / .08 inch

Singulated

Irregular

Gap ≥ 25 mm / 1 inch

Dimensioning Accuracy • NTEP • OIML

+/- 0.2” for length and width, +/- 0.1” for height

+/- 5 mm for length, width, +/- 2 mm for height

Conveyor Speeds Up to 3.3 m/s (650 fpm)

Box Size (maximum) L 4000 mm x W 1200 mm x H 1000 mm / 160 x 48 x 40 inches

Box Size (minimum) L 50 mm x W 50 mm x H 50 mm / 2.4 x 2.4 x 1.0 inches

Laser Type Visible laser diode (red) 660 nm, CDRH Class II, IEC 60825-1 Class 3R

Temperature

Operating: -10 to 40 °C / 14 to 104 °F;

Storage: -20 to 70 °C / -4 to 158 °F

Relative Humidity 10-90% non-condensing

Power Requirements 24 VDC +/- 10%

Power Consumption 19 W Average (75 W Max) per Head

Enclosure IP65, Aluminum

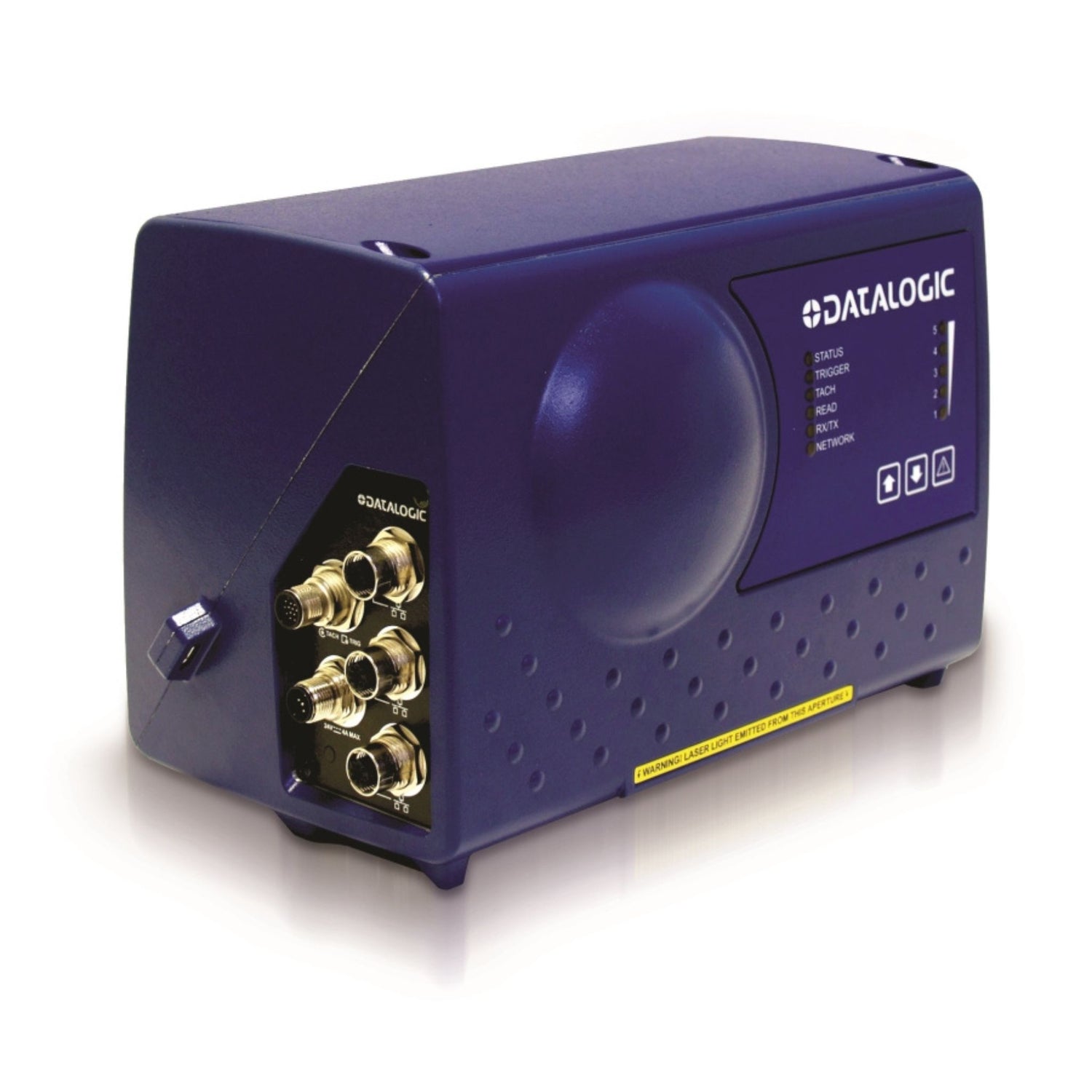

Status Indicators LEDs - STATUS, TRIGGER, TACH, READ, RX/TX, NETWORK, DIMENSION STATUS INDICATORS

Communication Interfaces Ethernet (TCP/IP), RS-232 / RS-422 / RS-485

Inputs (1) Tachometer, (1) Trigger, (2) SW programmable general purpose

Programming On board HTML web server interface

Service Options Installation services and on-site training

Warranty 2-year limited, parts and labour

Compliances UL, cUL, FCC (Class A), CE

Legal for Trade Certifications OIML/MID, NCWM/NTEP*, Measurement Canada
