Description

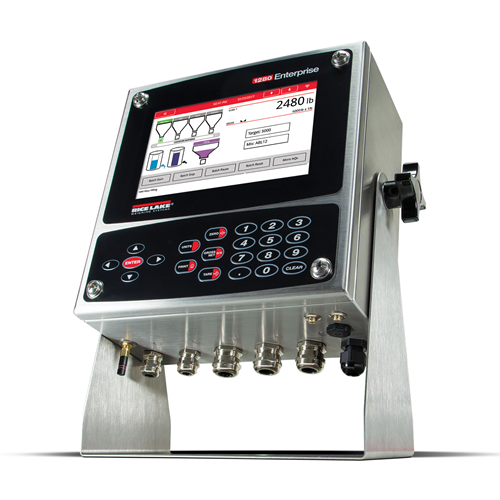

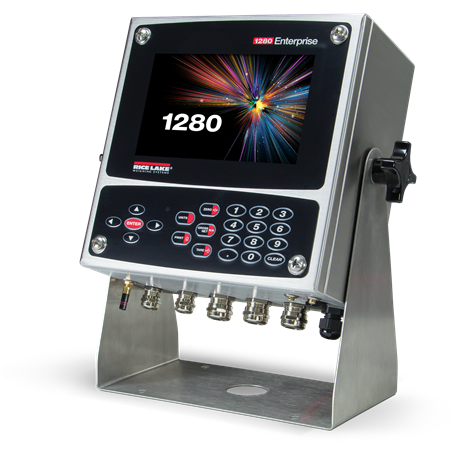

RiceLake 1280 Enterprise Series Programmable Weight Indicator and Controller

Customizable colour touchscreen with graphical user interface
User-defined softkeys, icons and graphics
Tactile keypad for scale operations, numeric entry and navigation
On-screen keyboard available during entry mode (or external keyboard)
Built-in web server for remote access, systems integration and data monitoring
Multi-language operation and text entry
Supports eight scales within five different kinds:
- Analog load cell, multi-range/interval weighing
- Total scale summing
- Serial input scales
- iQUBE² scales
- Program scales
Six smart card slots for additional scale channels, serial ports, digital inputs and outputs, analog outputs and protocol interfaces
iRite™ Programming Software
- Five built-in applications: Truck In/Out, Recipe Storage, Filling/Dosing, Counting, Checkweighing
- Customizable user programs with event-based functions
- 150 built-in functions for common processes & data tables
- Customize and transfer data via email, FTP server and networked printers
- Display data with line charts or bar graphs
Dual-port assignments for weight tickets, credit cards, smart pass, HID readers, etc.
iRite reporting or iQUBE2 alerts
Email, USB, Ethernet TCP/IP, Wi-Fi Direct®, two serial ports RS-232 or RS-485
Alibi memory captures serial port transmissions
Four configurable data-stream formats for PC, printers and remote displays
100 setpoints, 18 configurable setpoint types
Eight digital I/O for control and pulse count

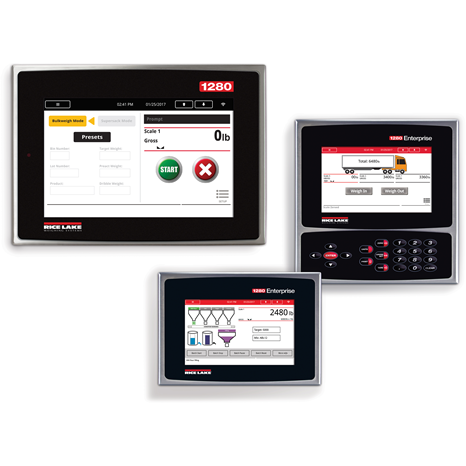

Three different enclosure types: universal with tilt stand, panel mount and wall mount

Specifications

Power:
AC voltages: 100 to 240 VAC; 50 to 60 Hz
DC voltages: 11 to 30 VDC
Consumption: 60W

Excitation Voltage:
10 ± 0.5 VDC
16 × 350 ohm or 32 × 700 ohm load cells per A/D card

Analog Signal Input Range:
-60 mV to 60 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum at 7.5 Hz to 120 Hz
1.0 μV/graduation recommended

A/D Sample Rate:
7.5 to 960 Hz, software selectable

Resolution:
Internal: 8 million counts/8,000,000
Display: 1,000,000

System Linearity
± 0.01% full scale

Digital I/O:
Eight I/O channels on CPU board
Optional 24-channel I/O expansion boards

Communication Ports:
Port 1 & 2: Full-duplex RS-232 with CTS/RTS,
RS-422/485
Baud Rate: 1200 to 115200
Port 3: USB 2.0 Device (Micro)
USB Host: (2) Type-A Connectors max 500 mA
Ethernet: Wired 10/100 Auto-MDX
Ethernet: Wireless 802.11 b/g/n 2.4GHz

Onboard:
Selectable filters: Three-stage, Adaptive or Damping
Embedded Linux® OS
8 GB eMMC (system use)
1 GB DDR3 RAM
460 MB onboard database (SQLite) storage
Up to 32 GB micro SD card (sold separately)

Display:
Seven-inch, 800 × 480 pixel, 500 or 1,000 NIT
Twelve-inch, 1280 × 800 pixel, 1,500 NIT

Keys/Buttons:
22-key membrane panel, tactile buttons, on-screen keyboard for text and numeric entry, USB port for flash drive, keyboard and printer

Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: -4 °F to 131 °F (-20 °C to 55 °C)

Weight:
Universal enclosure: 11 lb (4.9 kg)
Panel mount enclosure: 8 lb (3.6 kg)
Wall mount enclosure: 23 lb (10.4 kg)
Panel mount 7 in touch-only: 7 lb (3.1 kg)
Panel mount 12 in touch-only: 10 lb (4.5 kg)

Rating/Material:
Universal: IP69K
Wall mount: IP66
Panel mount: IP69K, NEMA Type 4X and 12
Stainless steel 304 enclosure

Warranty:
Two-year limited

EMC Immunity:
EN 50082 Part 2 IEC
EN 61000-4-2, 3, 4, 5, 6, 8, 11

Approvals:
NTEP CC 15-001/Class III/IIIL 10,000d
Measurement Canada AM-5980C,
Class III/III HD 10,000d
OIML R76/2006-NL1-16.04
Class III/IIII 10,000d
EU Test Certificate TC8596
UL/cUL Listed (universal, wall mount)
UL/cUL Recognized (panel mount)
CE Marked
