Rice Lake

882D Belt Scale Integrator

Name: 882D Belt Scale Integrator
Brand: Rice Lake
Availability: InStock

Service & Calibration Support

Interweigh Systems provides calibration, service, and technical support for all equipment we sell.

Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.

Certified test weights are also available to support quality control programs and internal verification procedures.

Ordering & Configurations

Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.

To receive pricing or discuss availability, contact our team with details about your application and environment.

Contact Now for Immediate Pricing

Description

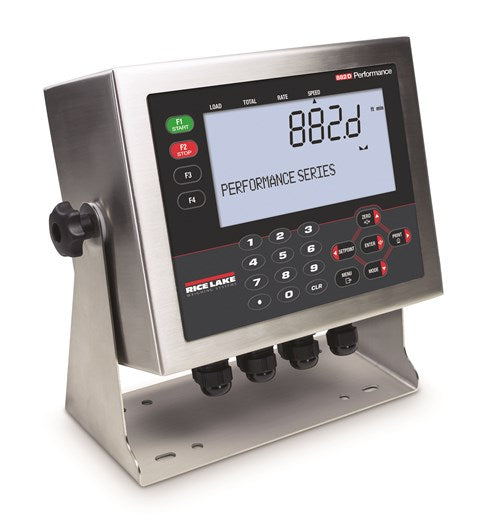

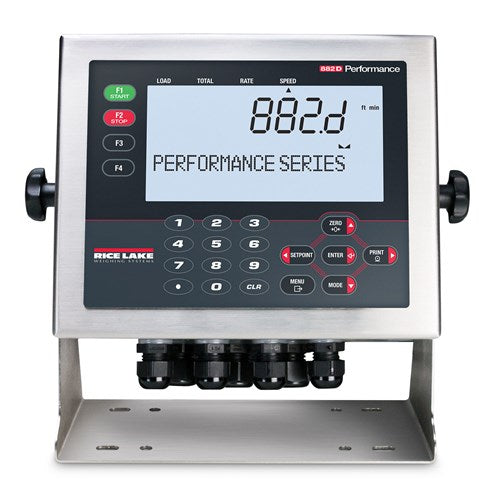

Rice Lake 882D Belt Scale Integrator

Belt scales used in demanding industries like mining, bulk material blending, and sand or gravel quarries require instrumentation that can keep up. The tough yet compact 882D belt scale integrator is engineered to provide straightforward, accurate data in a wide range of environments — even hazardous locations. Designed with advanced programming capabilities and an I/O option, the 882D can be customized to manage product dosing and metering.

A backlit display makes for easy viewing of rate, speed and time, even in lighting conditions where a screen would typically be difficult to read. The 882D’s IP66 stainless steel enclosure protects the instrument from severe weather and is well-suited for exposure to harsh environments. Whether you are belt weighing for process control or a truck, barge or rail loadout application, you can rely on the 882D for durable performance in every setting.

LCD display, 0.8-inch seven-digit, seven-segment weight display, 3 × 20 pixelated prompt area
RS-232 or RS-485 serial port
USB device port connects directly to a PC
Ethernet TCP/IP polled or continuous
AC or DC models
Hardware slot for two option cards
Operator functions through menu key for audit trail, preset tare, accumulator, time & date and setpoints
Audit trail tracking for configuration and calibration changes. Password protection for user and configuration changes.
Setpoints for control and alarms
Four onboard digital I/O channels
Four programmable ticket formats up to 1,000 characters
Filter settings for light, medium and heavy noise
Speed inputs

Specifications

Power
Input voltages: 100 to 240 VAC; 9 to 36 VDC
Input frequency: 47 to 63 Hz

Power Consumption:
AC: 15 watts; DC: 20 watts

Excitation Voltage:
10 VDC 8 × 350 ohm (16 × 700 ohm) load cells

Analog Signal Input Range:
-45 mV to 45 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum at 7.5 Hz;
1.0 μV/graduation typical at 120 Hz

Sample Rate:
7.5 to 120 Hz, software selectable

Resolution:
Internal: 8 million counts 23 bit weight display: 100,000

System Linearity:
± 0.01% full scale

Digital I/O:
Four I/O onboard primary keys, pseudo functions, batching functions

Circuit Protection:
18 KV, 10 V/meter

Communication Ports:
RS-232 full-duplex or RS-485 half-duplex; USB micro A/B connector 2.0; Ethernet TCP/IP

Pulse Input:
Dual inputs for redundancy

Display:
LCD display, seven-digit, seven-segment weight display, 3 × 20 pixelated prompt area

Status Annunciators:
Load, total, rate, speed, zero

Keyboard:
Flat membrane panel, tactile feel

Operating Temperature:
Industrial: 14 °F to 122 °F (-10 °C to 50 °C)

Dimensions:
(W x H x D)
9.87 × 9.38 × 4.33 in

Weight:
12 lb (5.4 kg)

Material:
Stainless steel

Rating:
IP66

Warranty:
Two-year limited

Approvals:
CE Marked
UL/c-UL Listed
