Midrics Series Indicators
Midrics Series Indicators is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description

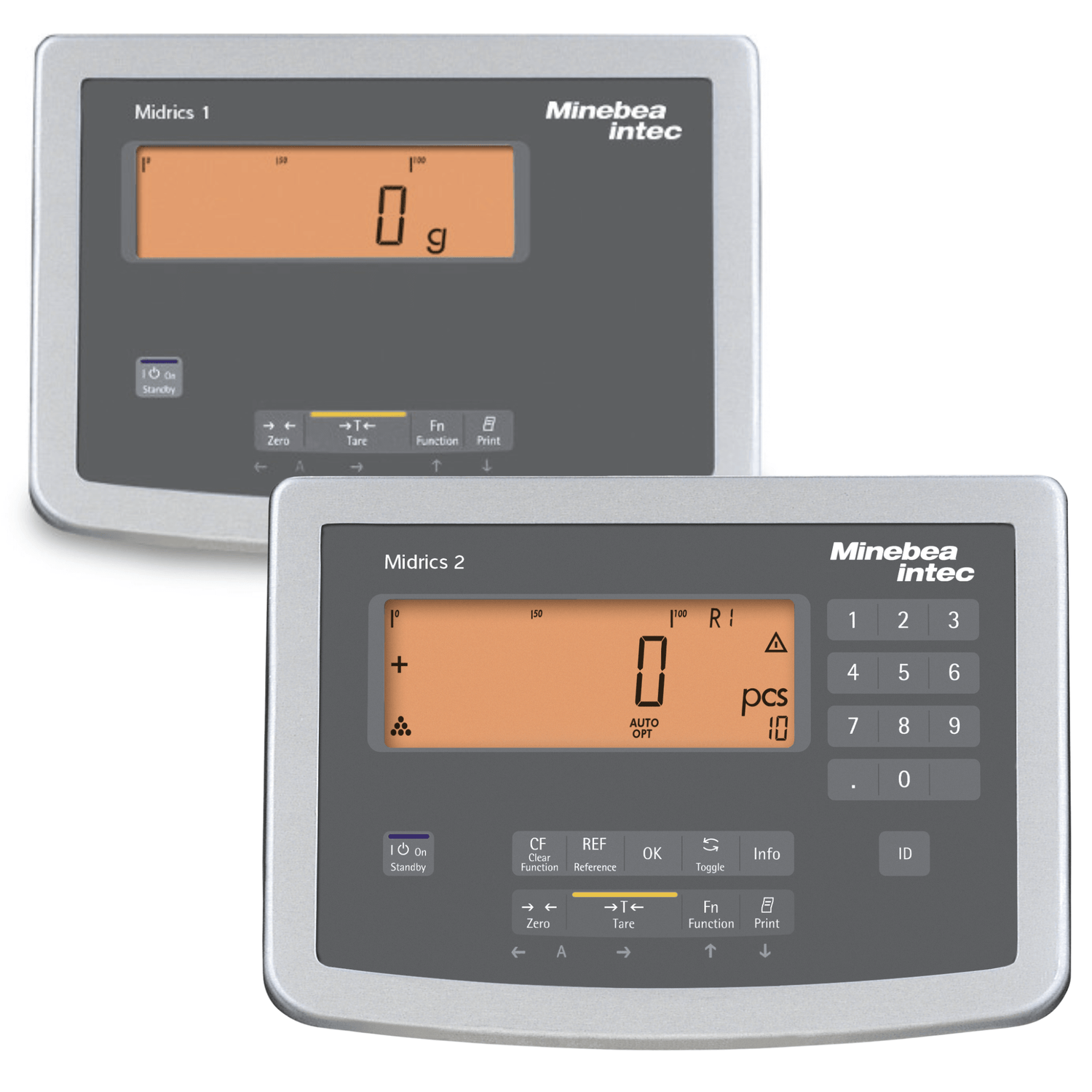

Minebea Midrics Series Weight Indicators
Easy-to-use application software programs for a variety of uses, such as counting, checking and pre-packaging checking, are pre-installed as a standard feature.
Standard Features
- Display: backlit, 14-segment, 20 mm LCD for weight readouts
- Integrated A/D-converter for connecting analog platforms
- Material: AISI 304 stainless steel
- Optional RS-232, RS-485, RS-422, 4-20mA, Digital I/O
Applications
- Classification
- Counting
- Fill quantity control
- Filling & Dosing
- Formulation
- Weighing
Midrics Series Indicators Data Sheet
Specifications
| Models |

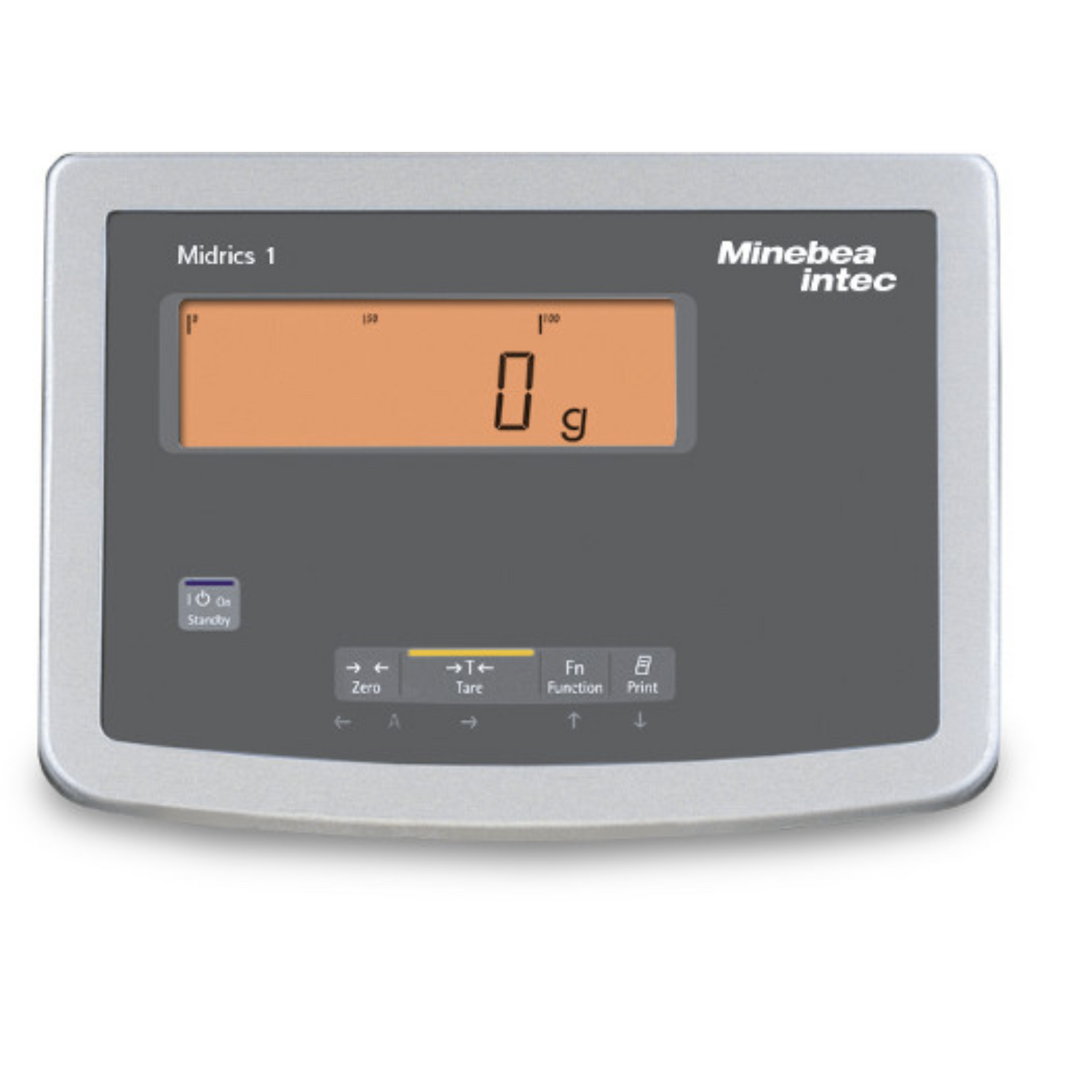

Midrics® Scale Indicator MIS 1 |

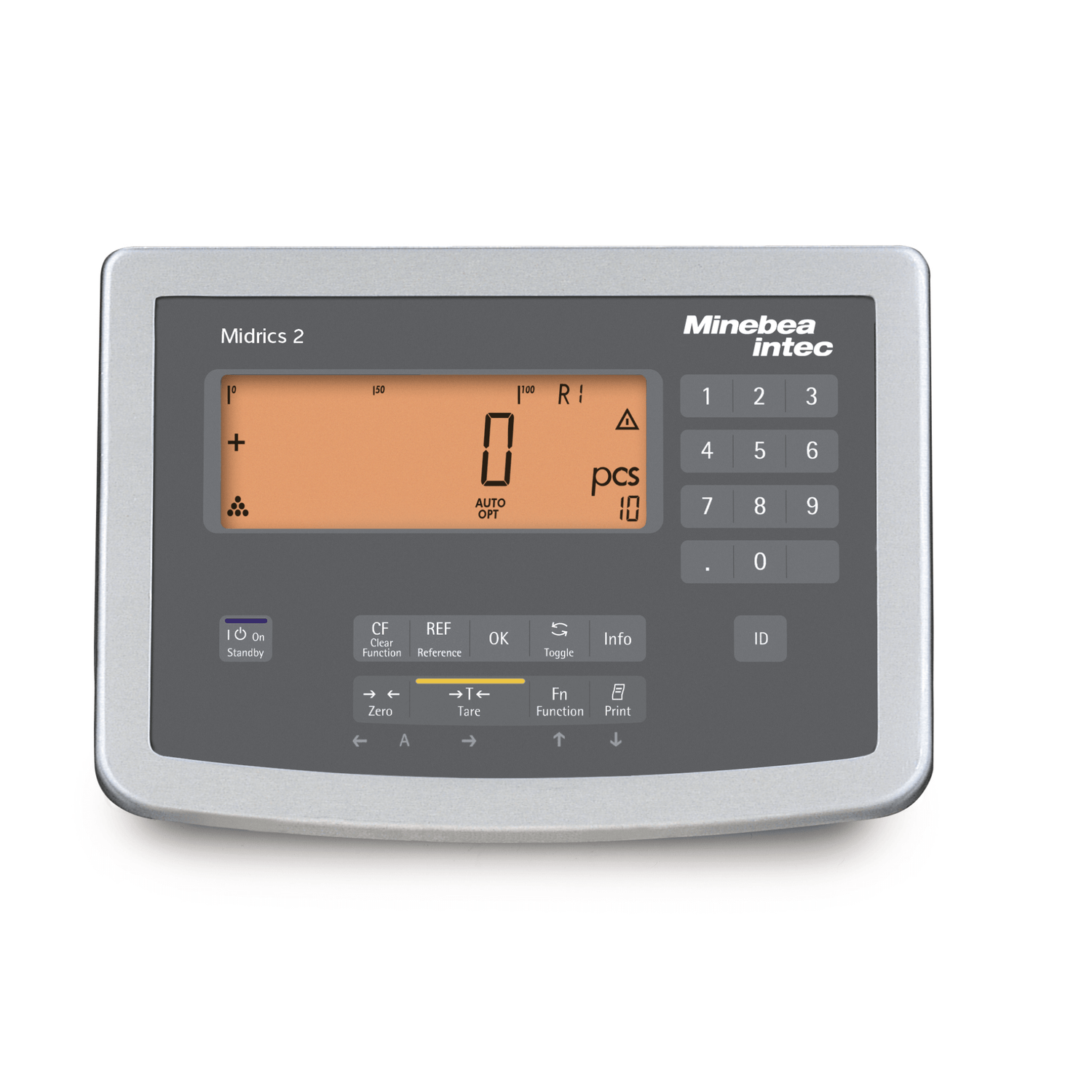

Midrics® Scale Indicator MIS2 |
| Display |
backlit, 14-segment, 20 mm LCD for weight readouts |
backlit, 14-segment, 20 mm LCD for weight readouts, bar graph |
| IP Protection Rating |
IP65 |
IP65 |
| Material |
AISI 304 stainless steel |
AISI 304 stainless steel |
| Optional |
RS-232, RS-485, RS-422, 4-20mA |
RS-232, RS-485, RS-422, 4-20mA, Digital I/O |
