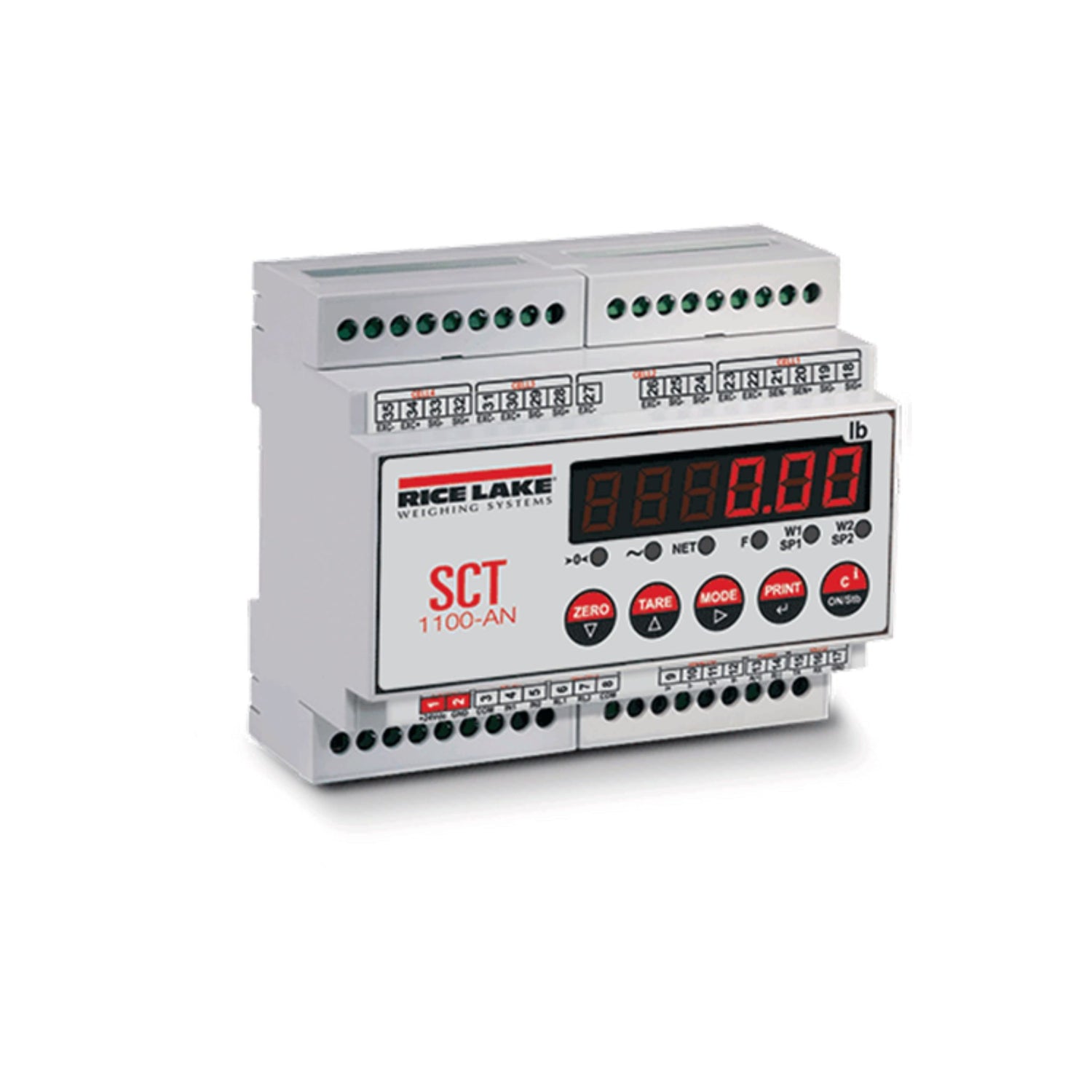

SCT-1100 Signal Conditioning Transmitter
SCT-1100 Signal Conditioning Transmitter is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description
Notable Features
- Up to four independent scales or four load cell inputs
- Quick menu for real and theoretical calibration
- Red LED display
- DIN rail mountable
- Configurable calibration and setup parameters from keyboard
- Calibration using linearization points
- Reading of the net, gross and tare weights, clearing, semi-automatic and pre-settable tare, scale switch, setting of outputs application thresholds
- Diagnostic information via serial port, message display, printing, setting of APW in counting mode, digital input for key press
- Modbus RU or ASCII protocol
- Easy configuration with Rice Lake Tools software
Total Control in a Compact Package
The ideal solution for PLC systems which require weight data from a scale, Rice Lake’s SCT signal transmitters offer maximum control without the additional cost or space required of a traditional weight indicator.
These multi-function transmitters have a compact design while presenting the same signal-conditioning functions.
Utilized as an independent or dependent four-channel digital junction box, the SCT-1100 allows for the direct reading and diagnosis of each individual connected load cell or summed as a whole.
Specifications
|
Power: Power Consumption: Excitation Voltage: Analog Signal Input Range: Analog Signal Sensitivity: A/D Sample Rate: Resolution: |
Digital I/O: Serial Ports: Analog Output (if equipped): Annunciators: Display: Keys/Buttons: |

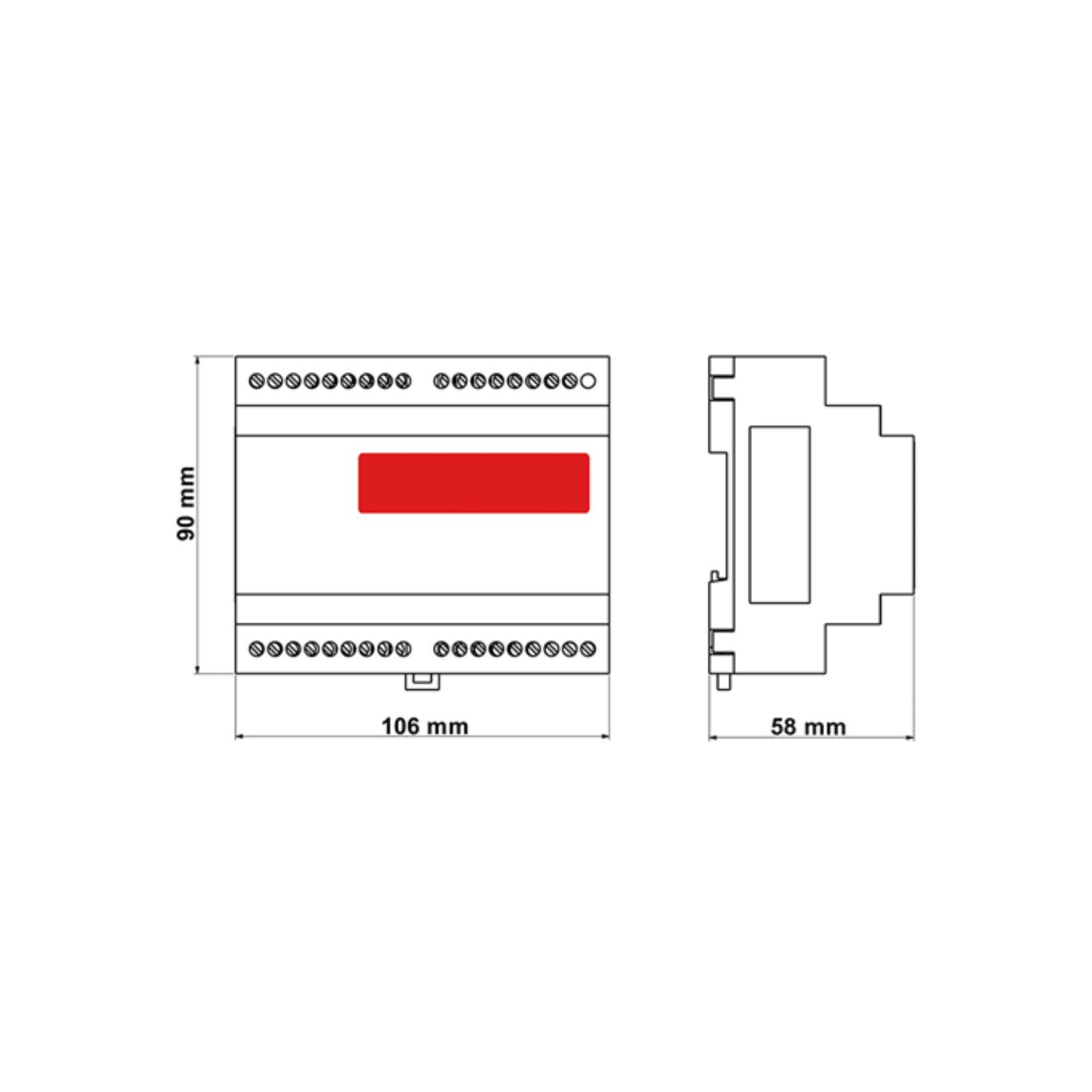

Dimensions: Temperature: Humidity: Rating/Material: Warranty: Approvals: |
