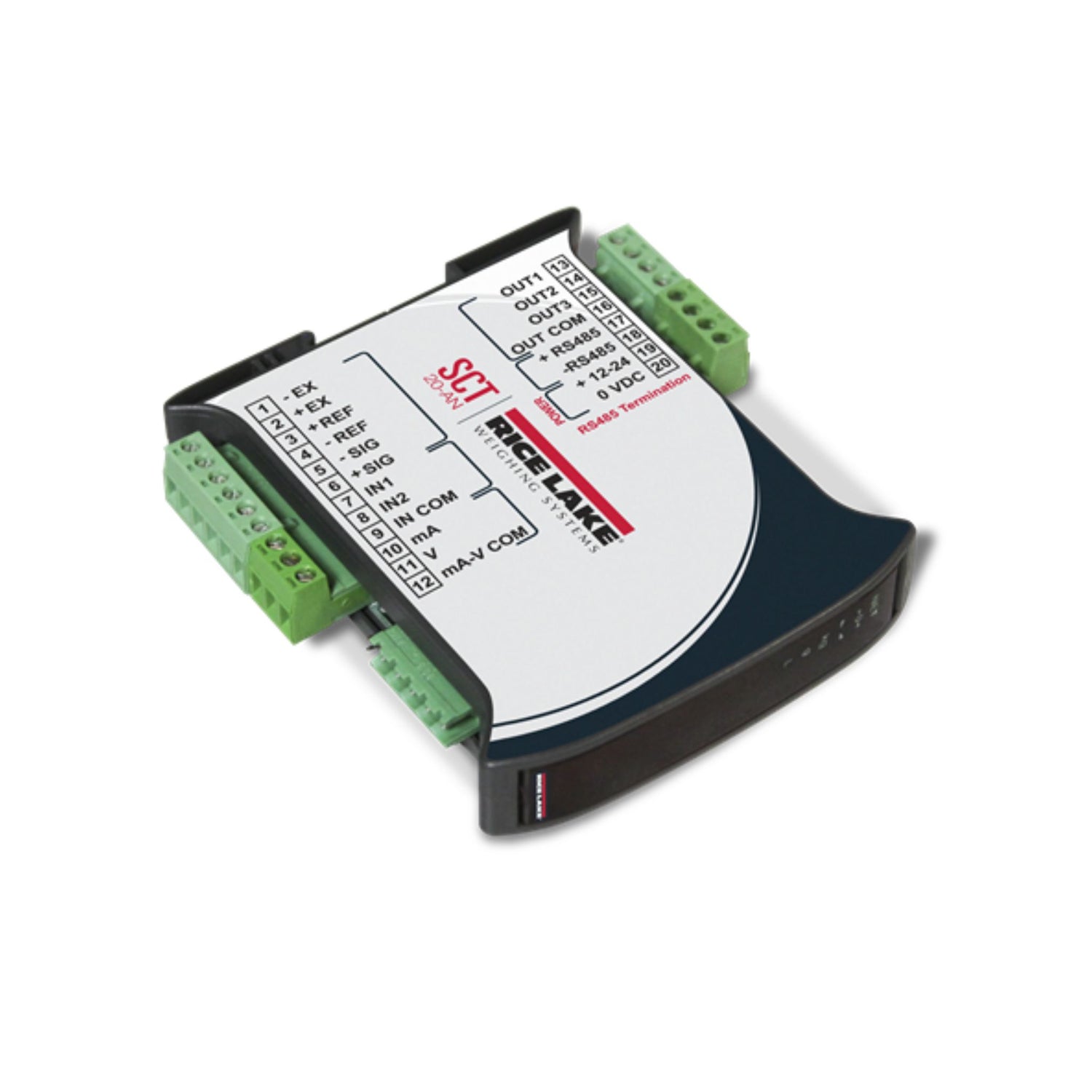

SCT-20 Signal Conditioning Transmitter

Power:
Input: 12 to 24 VDC

Power Consumption:
5 W

Excitation Voltage:
5 VDC, 120 mA, 8 × 350 ohm load cells

Analog Signal Input Range:
± 39 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum
1.0 μV/graduation recommended

A/D Sample Rate:
300 Hz

Resolution:
Internal: 16,000,000 counts
Display: 999,999

System linearity:
± 0.01% full scale

Digital I/O:
2 inputs 5 to 24 VDC, 3 outputs 115 VAC/150 mA
N.O. or N.C. (dry contact)

Communication Ports:
RS-232 transmit only, or RS-485 half duplex
Supports up to 115,200 bps

Analog Output:
Opto isolated, 16 bit
0-20 mA, 4-20 mA (max 300 ohm)
0-10 VDC, 0-5 VDC (min 10 k ohm)

Display:
0.3 in (8 mm), six-digit, seven-segment LED
Annunciators: Net, center of zero, stability, kg, g, lb

Keys/Buttons:
4-key membrane panel, tactile feel
zero, tare, print, menu, escape, left and up navigation, enter

Dimensions
(W × H × D)
4.72 × 4.52 × 0.98 in
(120 × 115 × 25 mm)

Temperature:
Operating: -4 °F to 140 °F (-20 °C to 60 °C)

Humidity:
85% non-condensing

Rating/Material:
Enclosure: NEMA Type 1 plastic pluggable connectors

Weight:
1 lb (0.5 kg)

Warranty:
One-year limited

Approvals:
NTEP CC 14-083
cULus Recognized
