Cost-Effective, Wireless, Overhead Load Management
Download the TL8500™ Tension Link Scales brochure.
Lightweight, Compact Design for Cranes, Riggers, Shipyards, Construction Sites, Surveyors, Inspectors, and Utilities.

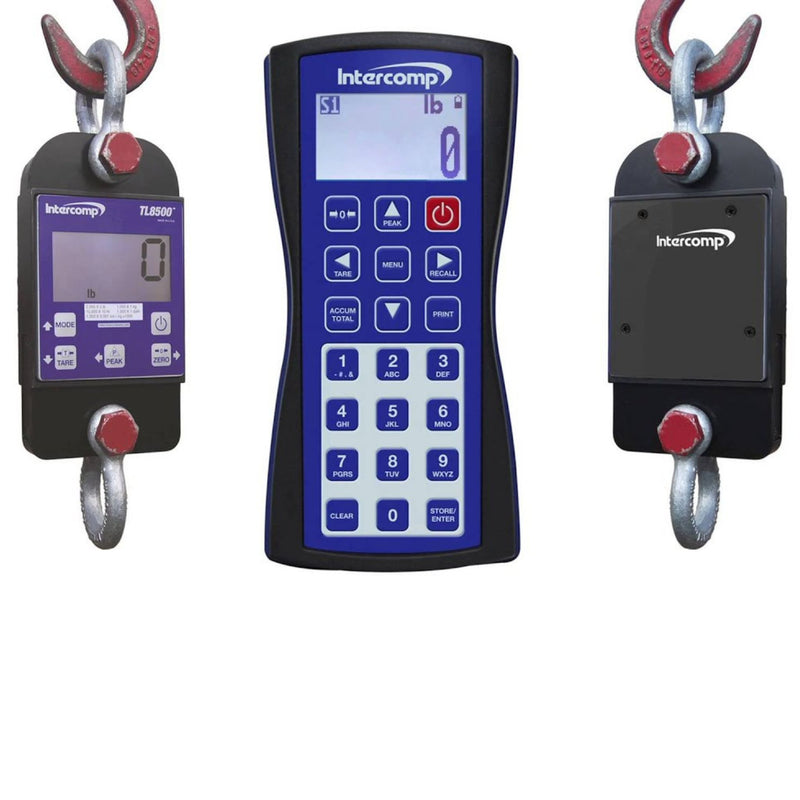

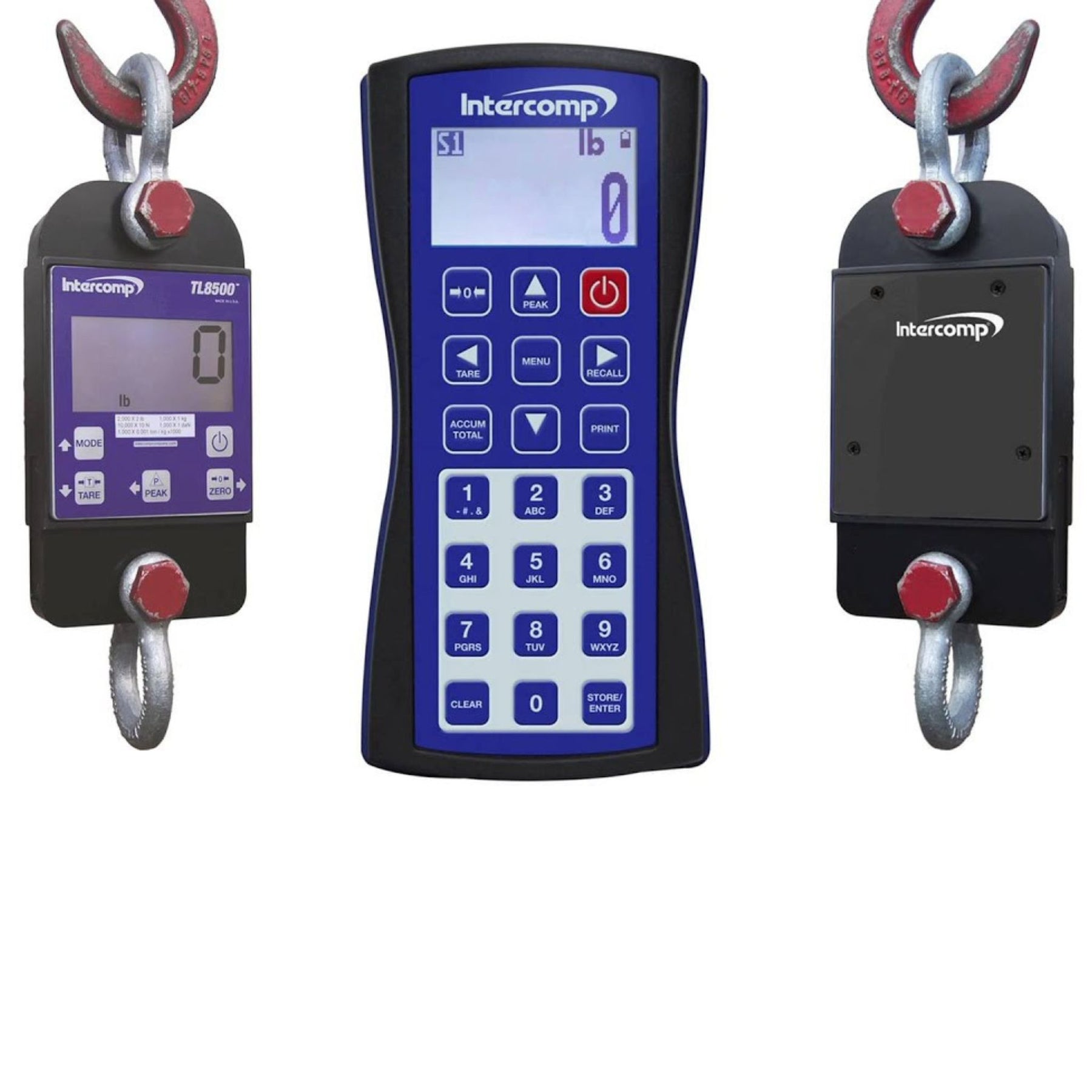

When working around overhead loads or near line tensions, accuracy and safety cannot be compromised. The TL8500™ Series Tension Link scales from Intercomp are the industry standard for verifying, controlling, and monitoring suspended loads and line tension while helping to maintain a safe work environment.

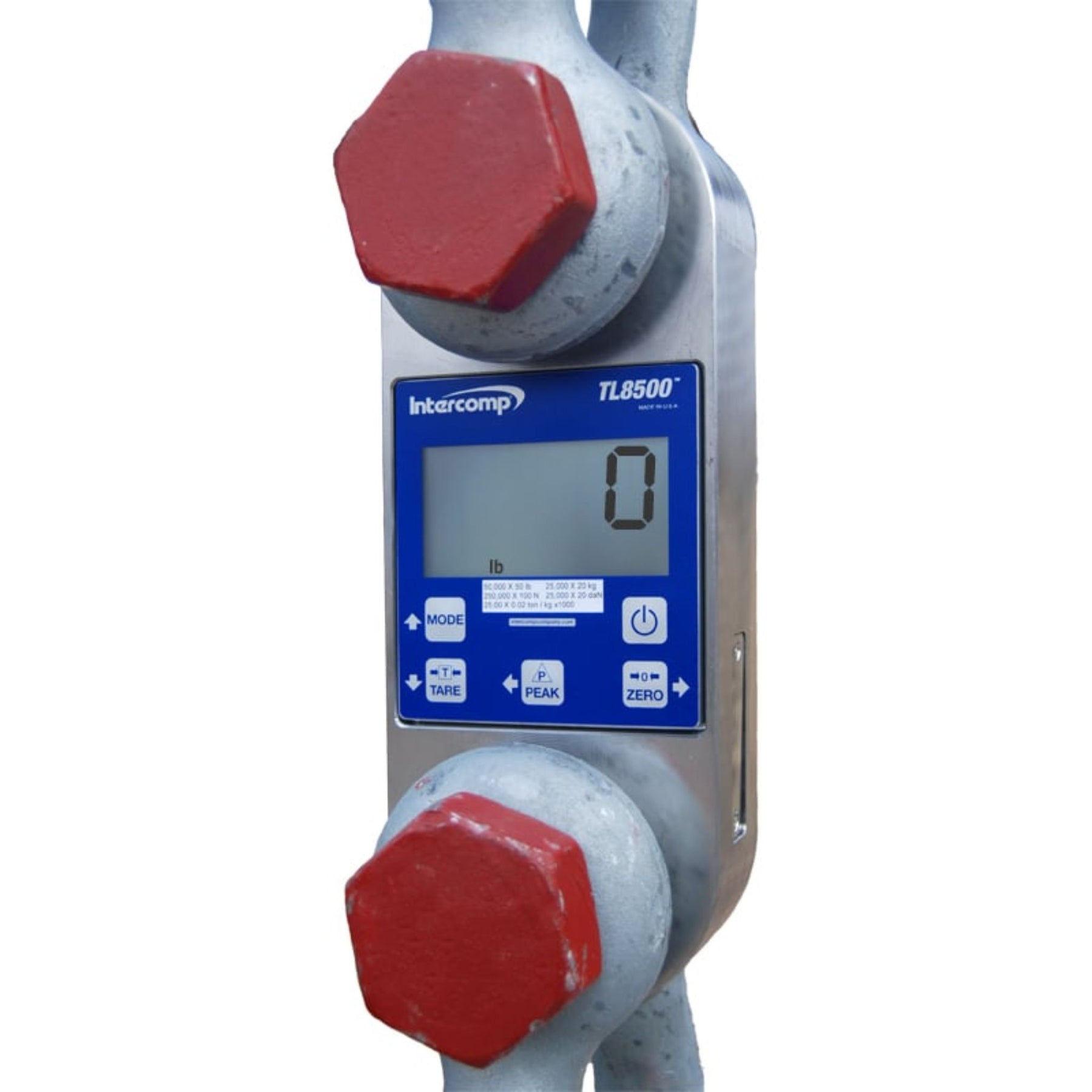

Intercomp manufactures TL8500™ Series Tension Link scales machined from aerospace-grade aluminum with shock-mounted electronics in a NEMA 4x/IP65 weatherproof enclosure, Intercomp’s Tension Link scales are built to last in capacities ranging from 1,000 lb (500 kg) to 160,000 lb (80,000 kg).
Notable Features
Elevate your load tension measurement with the TL8500™ tension link dynamometers, trusted by industry experts worldwide. Standard features include an easy-to-read 1.2" (30 mm) LCD Display with backlight and fully integrated wireless communication, while alkaline batteries provide up to 300 hours of power. Additional TL8500™ Tension Link Scale benefits include:
- Available in Capacities up to 160,000 lb (80,000 kg)
- Standard Wireless Radio with No External Antennas
- Sized to Accommodate Industry Standard Shackles (Sold Separately)
- Dedicated Hard Keys for On/Off & Mode
