Ishida Uni-3
Ishida Uni-3 is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description

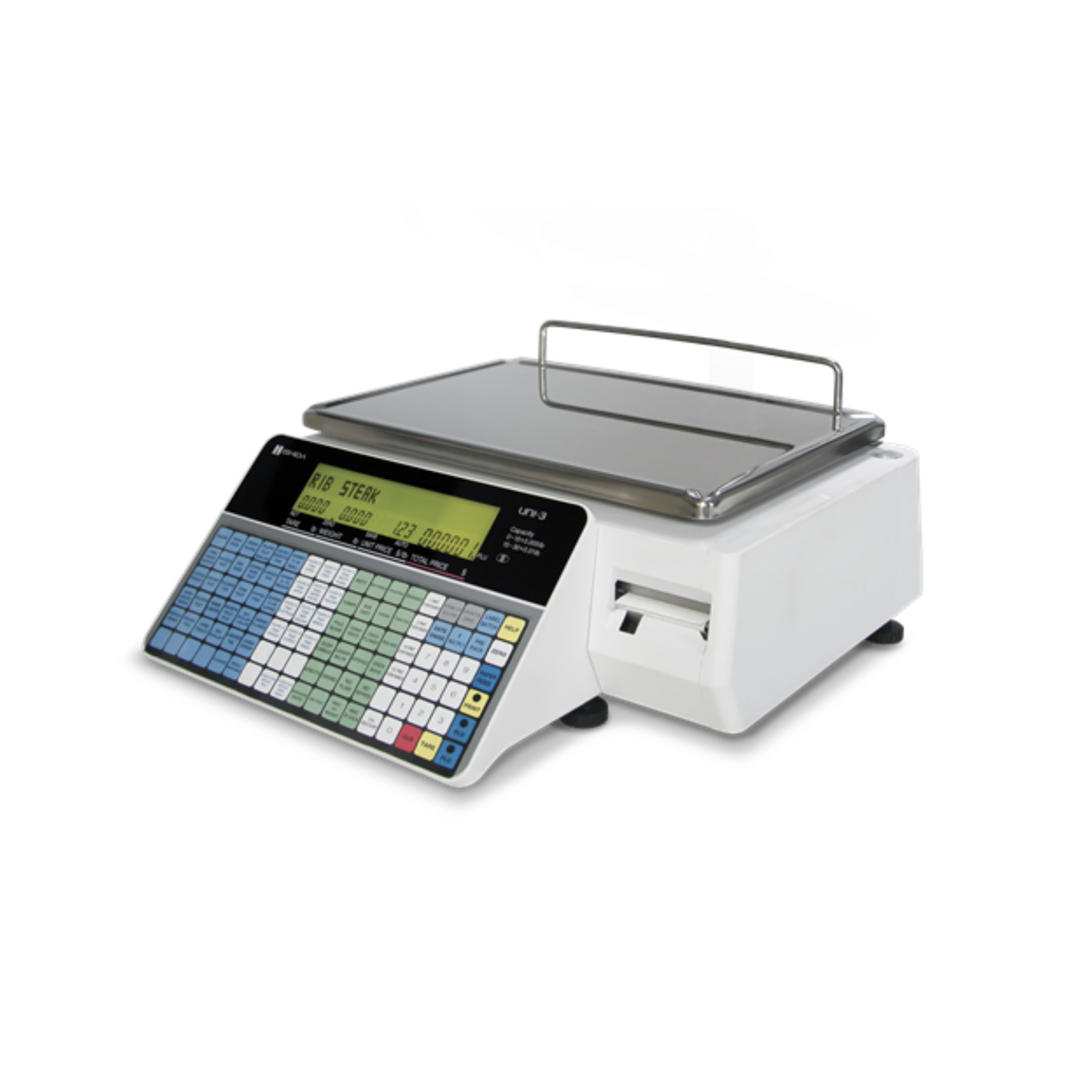

Ishida Uni-3 Retail Scales
The Uni-3 Retail Scale is a price-computing scale printer with premium-class presets, quick print speed and added labelling functions. It provides user flexibility with enhanced features - all for less cost than comparable price computing scales with printers. From simple price computing scales to point-of-sale systems and fully automatic wrapping equipment, you can't go wrong with the Ishida Uni-3 as a retail weighing solution.
Download the Uni-3 Retail Scale brochure here.
Notable Features
- Dual-range weighing (0-15lb x 0.005lb/15-30lb x 0.01lb)
- Static TCP/IP Ethernet communication
- 2 MB standard memory
- Up to 168 function keys assist with intuitive operation
- Fast printing speed
- Meat nutrition labelling
- Multiple label formats for multi-department support
- Powerful batch printing feature
- Flash ROM for remote update of application software
- Proportional tare
- Side-load labels
- Compatible with third-party communication software, including ADC's InterScale, and Invatron's PLUM.
Three Configurations
With three models and two display types to choose from, you can easily find a Uni-3 to fit your specific application needs.
Two Communication Choices
Ethernet or optional wireless communication makes it possible for any Uni-3 to be added to your existing network, ensuring you have consistent control of all scales in your store.
Flexible Presets
The power of the Uni-3 is at your fingertips with flexible preset buttons to represent PLUs, container tare values, label formats, images, and logos.
Two Display Types
The Uni-3 L1 model features a vibrant blue alphanumeric display with a sharp white 16-segment capability. The Uni-3 L2 model features a clear alphanumeric LCD display with one line alphanumeric and one line numeric only. Each model offers a matching customer display.
Retail Scale Applications
- Supermarkets
- Fresh produce markets
- Greengrocers
- Delicatessens
- Butchers
- Fishmongers
- Fresh produce growers
- Fresh produce wholesalers
- Bakeries
| Weighing Capacity | Dual-range: 15 lb x 0.005 lb/15-30 lb x 0.01 lb |
| Weighing Resolution | 3,000 display divisions maximum |
| Display Types | LCD, blue, alphanumeric: L1 (23 digits 16 seg) LCD, backlit, alphanumeric: L2 (192” 16 dot matrix + 23 digits 7 seg) |
| Display Items | Tare: four digits Unit price: five digits Total price: six digits |
| Preset Keys |
Pole model: 84 one-touch preset keys 168 presets (assign two items/key) Hanging model: 94 one-touch preset keys 188 presets (assign two tare/key) |
| Platter | Countertop models: 14.5 in x 10.5 in Hanging model: 14.1 in diameter |
| Memory Capacity | 2 MB |
| Communication | TCP/IP 10/100 Base T Ethernet |
| Printing Speed | 3.9 in (100 mm) per second |
| Label Size | Width: 1.5 in-2.5 in (38 mm-64 mm) Length: 1.2 in-6.9 in (30 mm-175 mm) |
| Label Roll Size | Inside diameter: 1.6 in (40 mm) Outside diameter: 3.9 in (100 mm) |
| Power Supply | AC 100V/120V/220V/240V, 50/60 Hz |
| Power Consumption | Stand-by: 50W. In operation: 100W |
| Printing Method | Direct Thermal |
| Thermal Head | 2.2 in (56 mm) (448 dot, 8 dot/mm) |
