Description
Description

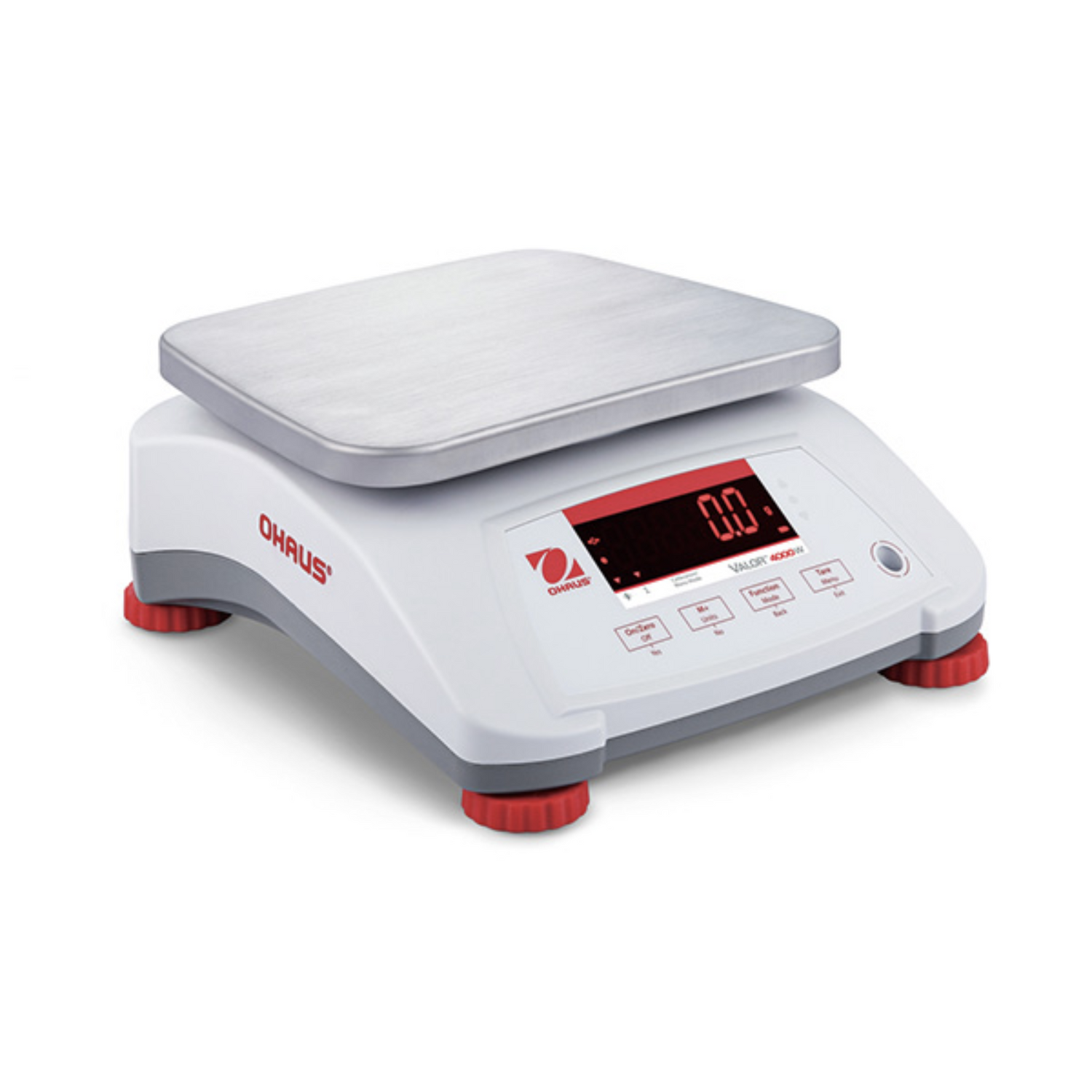

Ohaus Valor 4000 Bench Scale
High-Performance, Legal-for-Trade Food Scale Perfect for Harsh, Wet Workplace Conditions
The OHAUS Valor 4000 water resistant food scale raises the bar and sets a new industry standard with the winning combination of touchless operations, speed, and durability. Available in both stainless steel and plastic housing designs, Valor 4000 offers large LED front and rear displays, food safety and legal for trade approvals and puncture-resistant keypads, making it the premier scale for use in dry or washdown environments.
Standard Features
• Approvals Ensure Operation in the Most Demanding Environments — With Legal for Trade certifications and food-safe washdown design that’s NSF Certified, USDA-AMS Accepted and supports HACCP Certified systems, Valor 4000 meets the needs of the most demanding commercial applications in dry or wet environments.
• Knife Proof Keypad Prevents Damage from Sharp Objects — Valor 4000 has a polycarbonate keypad that can endure contact with knives or sharp instruments used daily in demanding food preparation, processing and portioning applications.
• The Flow-Thru Design Protects Valor® 4000 in Harsh Environments — Safe to use in the weighing of liquids and in wet environments, Valor 4000’s IPX8 flow-thru design ensures the scale remains protected from damage from liquids.
Specifications
| Model | Capacity × Readability | Certified Capacity × Readability |
|
V41PWE1501T V41XWE1501T |
1.5 kg x 0.0002 kg 1500 g x 0.2 g 3 lb x 0.0005 lb 48 oz x 0.01 oz 3 lb x 0.01 oz (lb:oz) |
1.5 kg x 0.0005 kg 1500 g x 0.5 g 3 lb x 0.001 lb 48 oz x 0.02 oz |
|
V41PWE3T V41XWE3T |
3 kg x 0.0005 kg 3000 g x 0.5 g 6 lb x 0.001 lb 96 oz x 0.02 oz 6 lb x 0.02 oz (lb:oz) |
3 kg x 0.001 kg 3000 g x 1 g 6 lb x 0.002 lb 96 oz x 0.05 oz |
|
V41PWE6T V41XWE6T |
6 kg x 0.001 kg 6000 g x 1 g 15 lb x 0.002 lb 240 oz x 0.05 oz 15 lb x 0.05 oz (lb:oz) |
6 kg x 0.002 kg 6000 g x 2 g 15 lb x 0.005 lb 240 oz x 0.1 oz |
|
V41PWE15T V41XWE15T |
15 kg x 0.002 kg 15000 g x 2 g 30 lb x 0.005 lb 480 oz x 0.1 oz 30 lb x 0.1 oz (lb:oz) |
15 kg x 0.005 kg 15000 g x 5 g 30 lb x 0.01 lb 480 oz x 0.2 oz |
| Maximum Displayed Resolution (d) | 1:7,500 | 1:6,000 | 1:6,000 | 1:7,500 |
| Weighing Units | g, kg, lb, oz, lb:oz |
| Application Modes | Weighing, Percent Weighing, Checkweighing, Accumulation |
| Keyboard | Four mechanical switches with polycarbonate overlay |
| Calibration | Digital external span calibration |
| Display |
7 segment, 6 digit, 20.5 mm / 0.8 in high red LED dual display
|
| Display Indicators |
Stability, Center of Zero, Net, Battery Status, IR sensor and Accumulation |
| Checkweighing Indicators | 3 LED (yellow, green,red) with configurable operation |
| IR Sensor |
Rear side for Tare function |
| Tare Range |
To capacity by subtraction |
| Zero Range |
4% - 20% of Capacity |
| Stabilization Time |
≤0.5 second |
| Safe Overload Capacity | 150% of capacity |
| Operating Temperature Range |
-10 º C to 40 º C / 14° F to 104° F, 10% to 90% relative humidity non-condensing
|
| Construction |
V41PW: Stainless steel platform, ABS housing V41XW: Stainless steel top housing and platform, ABS bottom housing |
| Power |
12V DC 0.84A, AC Universal adapter (100 - 220V AC / 50 -60Hz) and built-in internal rechargeable lead acid battery included |
| Battery Operation |
Typically 50 hours of continuous use with 12-hour full charge |
| Ingress Protection |
IPX8 Washdown |
| Platform Size |
190 x 242 mm / 7.5 x 9.5 in |
| Scale Dimensions (W x D x H) |
V41PW: 256 x 280 x 121 mm / 10.1 x 11 x 4.8 in V41XW: 256 x 288 x 124 mm / 10.1 x 11.3 x 4.9 in
|
| Shipping Dimensions (W x D x H) |
410 x 370 x 220mm / 16.1 x 14.6 x 8.7 in |
| Net Weight |
V41PW: 3.0 kg / 6.6 lb V41XW: 3.9 kg / 8.6 lb |
| Shipping Weight |
V41PW: 4.0 kg / 8.8 lb V41XW: 4.9 kg / 10.8 lb |
