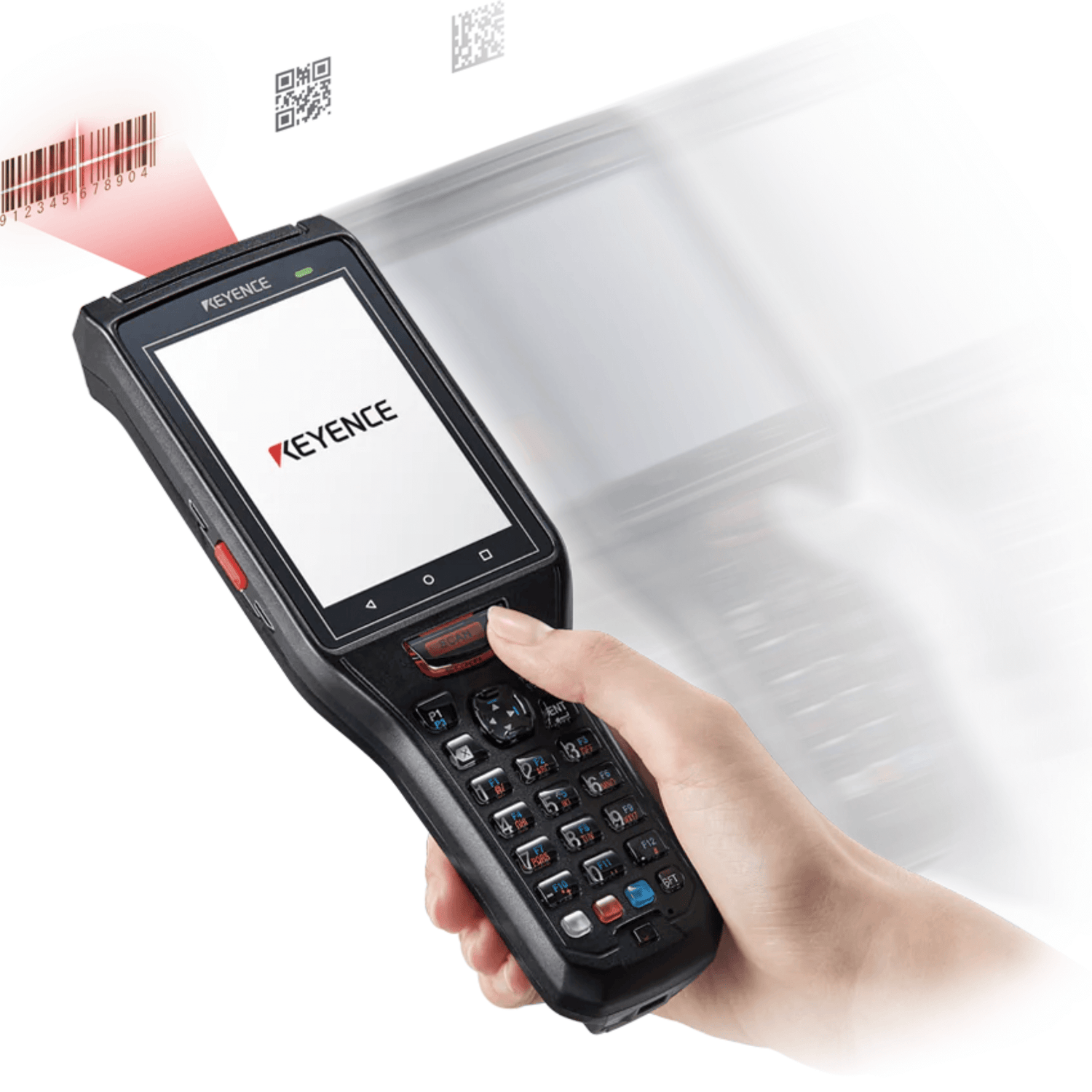

Keyence BT-A500 Series

Handheld Computer

The BT-A500 Series Handheld Mobile Computer with Android™ OS dramatically improves on-site efficiency by boosting the speed of repeated daily tasks. In addition to the ability to instantly read codes under any conditions, the shape of the device is optimized for Android OS performance, allowing for fast, one-handed operation. This model also has excellent durability for tough conditions. The rigid chassis and damper mechanism enables the device to withstand drops from 2 m(6.6 ft) as well as 20000 repeated impacts from 30 cm(0.98 ft). Built-In implementation, maintenance, and support tools are also available. The kitting function allows users to copy settings from a single unit to multiple devices, and the remote access function enables support and troubleshooting of a device independent of its location.



Specifications

Model

BT-A500GA


Controller

CPU

QualcommTM Quad-core

OS

Android 10

Main Memory

RAM

2 GB

ROM

16 GB

Display

LCD

Type

3.5" TFT color LCD

Resolution

320 (H) × 480 (V)

Backlight

High-intensity white LED

Operation Status LED

3-color LED (red, green, blue, yellow, cyan, magenta, white)

Operations

Hard keys

Set of arrow keys × 1 (4 directions), Triggers × 3 (Center key × 1, Side keys × 2), Customization keys × 2 (P1 key, P2 key), Data input keys × 14 (numeric keypad, ENT key, Clear key, Minus key, Symbol key), Function keys × 4 (White key, Orange key, Blue key, SFT key), Power key × 1

Touch Panel

Electrostatic capacitance method (Dragontrail Pro)

Scanner

Reading Specifications

Reading Light Source

High-intensity white LED

Pointer Light Source

Visible semiconductor laser (658 nm),
Output: 1.0 mW,
Class 2 laser product (IEC 60825-1)

Minimum Resolution

2D code: 0.169 mm 0.0067", Barcode: 0.076 mm 0.0030"

Reading Distance

65 to 450 mm 2.56" to 17.72" (CODE39 narrow bar width: 0.254 mm 0.01") *1
100 to 745 mm 3.94" to 29.33" (CODE39 narrow bar width: 0.508 mm 0.02") *1
45 to 235 mm 1.77" to 9.25" (QR cell size: 0.254 mm 0.01") *1
25 to 440 mm 0.98" to 17.32" (QR cell size: 0.508 mm 0.02") *1

Reading Width (Field Range)

178 × 107 mm 7.01" × 4.21" (Reading distance: 200 mm 7.87") *1

Supported Codes

UPC/EAN/JAN (add-on code support), CODE128, GS1-128, CODE39, Codabar (NW-7), CODE93, ITF, COOP 2of5, Industrial 2of5, QR code, Micro QR, DataMatrix (ECC200), PDF417, GS1 DataBar, Composite, Postal

Wireless Communication

Wireless LAN

Wireless Radio

IEEE 802.11a/b/g/n/ac

Frequency Range

2.4 GHz (b, g, n: 1 to 11 ch)
5.2 GHz, 5.3 GHz, 5.6 GHz, 5.8 GHz (a/n/ac)

Security

Security: WEP (64/128 bits), WPA, WPA2
WPA encryption method: TKIP/AES
Authentication: PSK, EAP-TLS, EAP-TTLS, EAP-PWD

Bluetooth®

Wireless Standard

Bluetooth® V4.2 BR/EDR/LE

Supported Profiles

A2DP, AVRCP, BNEP, HID, IOPT, OPP, PAN, SPP

Distance

Approx. 10 m 32.8' (line-of-sight)

External Media

Supported Media

USB memory

Power Source

Main Battery

Type

Dedicated lithium-ion battery pack

Capacity

3250 mAh

Charging Usage Time

Approx. 5.5 hours (room temperature)

Backup Battery

RAM Backup

Electric double-layer capacitors: 3 minutes *2 *1

Others

Audio

Speaker, Microphone

Vibration

Available

Camera

13 megapixels, Auto-focus

Sensor

Accelerometer, Gyroscope, Ambient Light

Environmental Resistance

Enclosure Rating

IP65

Drop Resistance

Onto concrete from 2.0 m 6.6' (from 3.0 m 9.8' with rubber bumper);
Up to 20000 impacts from 30 cm 0.98' *1

Environmental resistance

Ambient temperature

-20 to +50°C -4 to +122°F
Charging: 0 to +40°C 32 to 104°F (No freezing) *3

Storage temperature

-20 to +60°C -4 to +140°F (No freezing)

Relative humidity

20 to 85% RH (No condensation)

Storage relative humidity

Dimensions

204 × 73.2 × 40.5 (30.0) mm 8.03" × 2.88" × 1.59" (1.18") (grip thickness)

Weight

Approx. 265 g (with rechargeable battery pack attached)
