BT-A700 Series

BT-A700 Series

  • Contact Now for Immediate Pricing
  • 1(800)-268-3269
  • inquiry@interweigh.ca

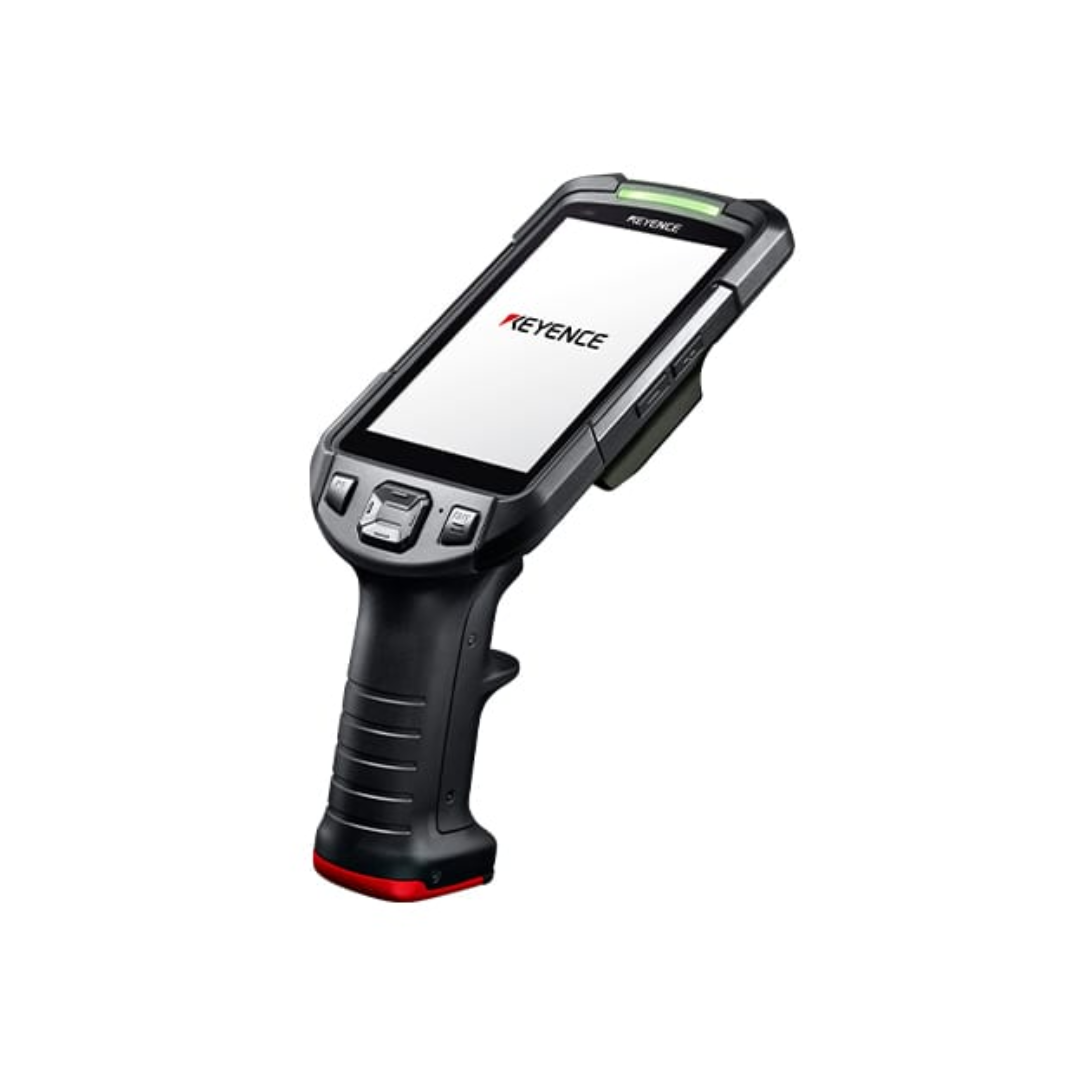

Keyence BT-A700 Series

Handheld Computer

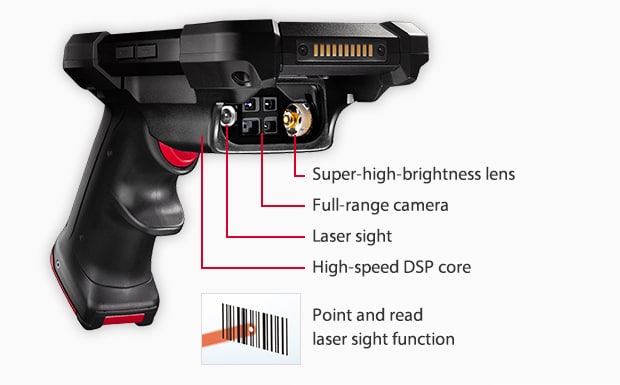

 The BT-A700 Series, is capable of reading codes from a minimum distance of 1 in. to a maximum distance of 10m(30 ft). Its impressive reading range and speed enable users to read codes instantaneously in one hand not only while standing but also while seated in a forklift. This leads to impressive productivity improvements. The combination of the first-in-class full-range camera and ultra-high-speed decoding allows instantaneous reading of barcodes even from an angle. The ease of on-site use has also been greatly enhanced. The compact body with a largest-in-class 5-inch screen offers excellent grip to allow stable one-handed operation. Rugged design with a tempered glass screen withstands drops from heights of 2.4 m (8 ft). The device can also be used continuously for up to 32 hours.



Specifications

Model

BT-A700GA


Controller

CPU

Qualcomm Octa-core

OS

AndroidTM 11

Main memory

RAM

3 GB

ROM

16 GB

Display

LCD

Type

5.0" TFT color LCD, IPS type

Resolution

720 × 1280

Backlight

High-intensity white LED

Operation Status LED

3-colour LED (red, green, blue, yellow, cyan, magenta, white)

Operations

Hard Keys

Type

10 keys

Touch Panel

Electrostatic capacitance method (Gorilla Glass)

Scanner

Reading Specification

Reading Light Source

High-intensity white LED

Pointer Light Source

Visible semiconductor laser (650 nm)
Output 700 μW
Class 2 laser product (IEC 60825-1)

Minimum Resolution

2D code: 0.191 mm 0.008"
Barcode: 0.127 mm 0.005"

Reading Distance

80 to 1550 mm 3.15" to 61.02" (CODE39 narrow bar width: 0.254 mm 0.01")
25 to 4100 mm 0.98" to 161.42" (CODE39 narrow bar width: 0.508 mm 0.02")
100 to 370 mm 3.94" to 14.57" (QR cell size: 0.254 mm 0.01")
0 to 1200 mm 0" to 47.24" (QR cell size: 0.508 mm 0.02")

Reading Width (Field Range)

151 × 94 mm 5.94" × 3.70"
(Reading distance: 300 mm 11.81")

Supported Code

JAN/EAN/UPC (add-on code support), CODE128, GS1-128,
CODE39, NW-7 (Codabar), CODE93, ITF, COOP 2of5, Industrial 2of5,
QR code, Micro QR, DataMatrix (ECC-200), PDF417, GS1 DataBar, Composite, Postal

Wireless Communication

Wireless LAN

Wireless Radio

IEEE 802.11a/b/g/n/ac

Frequency Range

2.4 GHz (b, g, n: 1 to 11ch)
5.2 GHz, 5.3 GHz, 5.6 GHz, 5.8 GHz (a/n/ac)
* W52/W53 can only be used indoors.

Security

Security: WEP (64/128 bit), WPA, WPA2
WPA encryption method: TKIP/AES
Authentication: PSK, PEAP, EAP-TLS, EAP-TTLS, EAP-PWD

Bluetooth®

Wireless Radio

Bluetooth® V5.0 + BR/EDR/LE

Supported Profile

A2DP, AVRCP, BNEP, HID, HSP, IOPT, OPP, PAN, SPP

Distance

Approx. 10 m 32.8' (line-of-sight)

Expansion Slot

Supported Media

micro SD/SDHC/SDXC UHS-I

Power Source

Main Battery

Type

Dedicated lithium-ion battery pack

Capacity

6250 mAh

Continuous Usage Time

Approx. 32 hours *1

Charging Time

Approx. 6 hours (room temperature)

Backup Battery

RAM Data

Electric double-layer capacitors: 3 minutes *2 *3

Others

Audio

Speaker, Microphone

Vibration

Available

Camera

5 MP

Sensor

Accelerometer, Ambient Light, Gyroscope, Digital Compass

Dimensions

88 mm × 134 mm × 235 mm 3.46" × 5.28" × 9.25"

Environmental resistance

Enclosure rating

IP67

Ambient temperature

−20°C to +50°C -4.0°F to 122°F (No freezing) *4

Storage temperature

−20°C to +70°C -4.0°F to 140°F (No freezing)

Relative humidity

20% to 85% RH (No condensation)

Storage relative humidity

Drop resistance

Onto concrete from 1.8 m 6';
Up to 20000 impacts from 30 cm 1' (multiple drops to concrete)

Weight

Approx. 487 g (with rechargeable battery pack attached)

Keyence BT-A700 Series

Handheld Computer

 The BT-A700 Series, is capable of reading codes from a minimum distance of 1 in. to a maximum distance of 10m(30 ft). Its impressive reading range and speed enable users to read codes instantaneously in one hand not only while standing but also while seated in a forklift. This leads to impressive productivity improvements. The combination of the first-in-class full-range camera and ultra-high-speed decoding allows instantaneous reading of barcodes even from an angle. The ease of on-site use has also been greatly enhanced. The compact body with a largest-in-class 5-inch screen offers excellent grip to allow stable one-handed operation. Rugged design with a tempered glass screen withstands drops from heights of 2.4 m (8 ft). The device can also be used continuously for up to 32 hours.



Specifications

Model

BT-A700GA


Controller

CPU

Qualcomm Octa-core

OS

AndroidTM 11

Main memory

RAM

3 GB

ROM

16 GB

Display

LCD

Type

5.0" TFT color LCD, IPS type

Resolution

720 × 1280

Backlight

High-intensity white LED

Operation Status LED

3-colour LED (red, green, blue, yellow, cyan, magenta, white)

Operations

Hard Keys

Type

10 keys

Touch Panel

Electrostatic capacitance method (Gorilla Glass)

Scanner

Reading Specification

Reading Light Source

High-intensity white LED

Pointer Light Source

Visible semiconductor laser (650 nm)
Output 700 μW
Class 2 laser product (IEC 60825-1)

Minimum Resolution

2D code: 0.191 mm 0.008"
Barcode: 0.127 mm 0.005"

Reading Distance

80 to 1550 mm 3.15" to 61.02" (CODE39 narrow bar width: 0.254 mm 0.01")
25 to 4100 mm 0.98" to 161.42" (CODE39 narrow bar width: 0.508 mm 0.02")
100 to 370 mm 3.94" to 14.57" (QR cell size: 0.254 mm 0.01")
0 to 1200 mm 0" to 47.24" (QR cell size: 0.508 mm 0.02")

Reading Width (Field Range)

151 × 94 mm 5.94" × 3.70"
(Reading distance: 300 mm 11.81")

Supported Code

JAN/EAN/UPC (add-on code support), CODE128, GS1-128,
CODE39, NW-7 (Codabar), CODE93, ITF, COOP 2of5, Industrial 2of5,
QR code, Micro QR, DataMatrix (ECC-200), PDF417, GS1 DataBar, Composite, Postal

Wireless Communication

Wireless LAN

Wireless Radio

IEEE 802.11a/b/g/n/ac

Frequency Range

2.4 GHz (b, g, n: 1 to 11ch)
5.2 GHz, 5.3 GHz, 5.6 GHz, 5.8 GHz (a/n/ac)
* W52/W53 can only be used indoors.

Security

Security: WEP (64/128 bit), WPA, WPA2
WPA encryption method: TKIP/AES
Authentication: PSK, PEAP, EAP-TLS, EAP-TTLS, EAP-PWD

Bluetooth®

Wireless Radio

Bluetooth® V5.0 + BR/EDR/LE

Supported Profile

A2DP, AVRCP, BNEP, HID, HSP, IOPT, OPP, PAN, SPP

Distance

Approx. 10 m 32.8' (line-of-sight)

Expansion Slot

Supported Media

micro SD/SDHC/SDXC UHS-I

Power Source

Main Battery

Type

Dedicated lithium-ion battery pack

Capacity

6250 mAh

Continuous Usage Time

Approx. 32 hours *1

Charging Time

Approx. 6 hours (room temperature)

Backup Battery

RAM Data

Electric double-layer capacitors: 3 minutes *2 *3

Others

Audio

Speaker, Microphone

Vibration

Available

Camera

5 MP

Sensor

Accelerometer, Ambient Light, Gyroscope, Digital Compass

Dimensions

88 mm × 134 mm × 235 mm 3.46" × 5.28" × 9.25"

Environmental resistance

Enclosure rating

IP67

Ambient temperature

−20°C to +50°C -4.0°F to 122°F (No freezing) *4

Storage temperature

−20°C to +70°C -4.0°F to 140°F (No freezing)

Relative humidity

20% to 85% RH (No condensation)

Storage relative humidity

Drop resistance

Onto concrete from 1.8 m 6';
Up to 20000 impacts from 30 cm 1' (multiple drops to concrete)

Weight

Approx. 487 g (with rechargeable battery pack attached)
