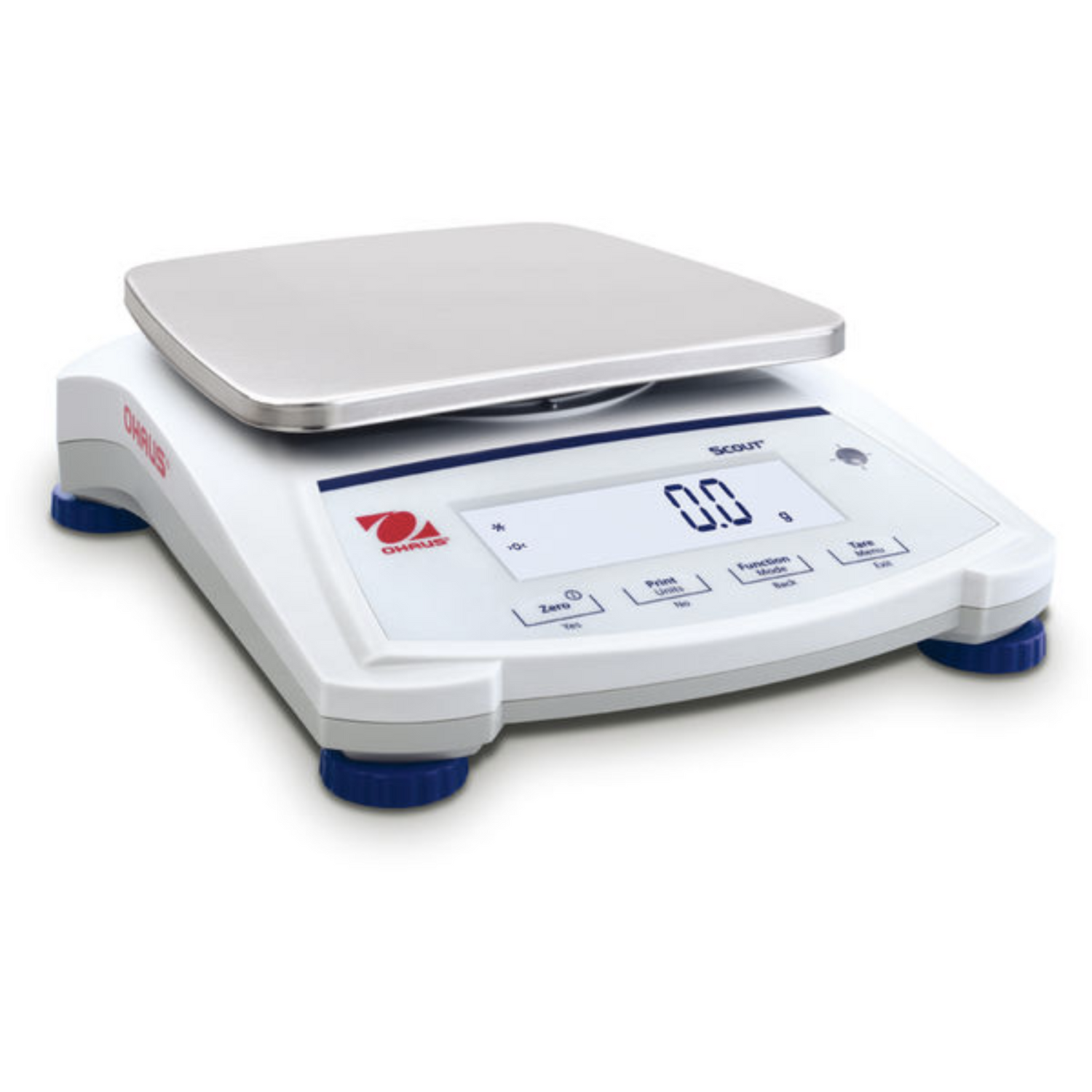

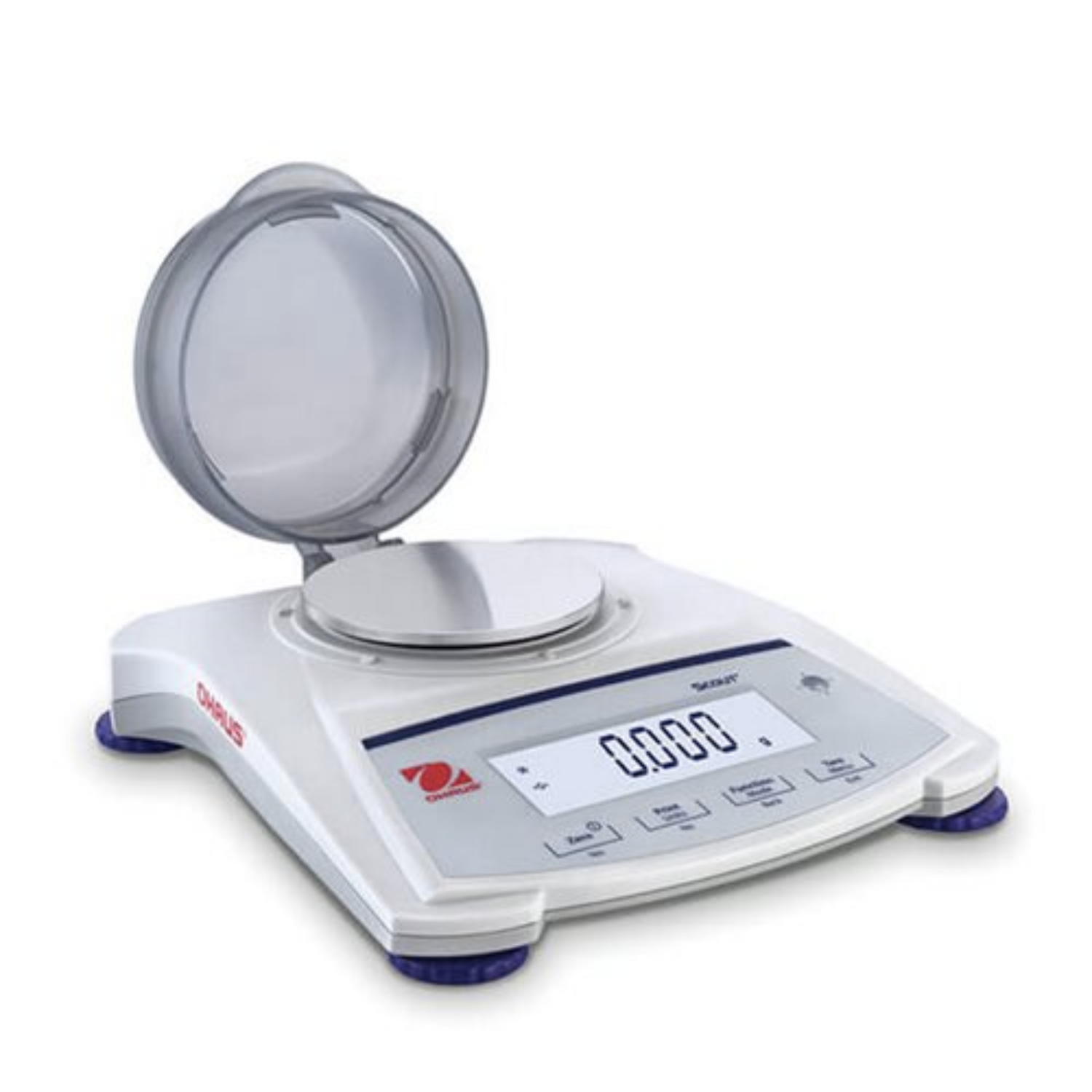

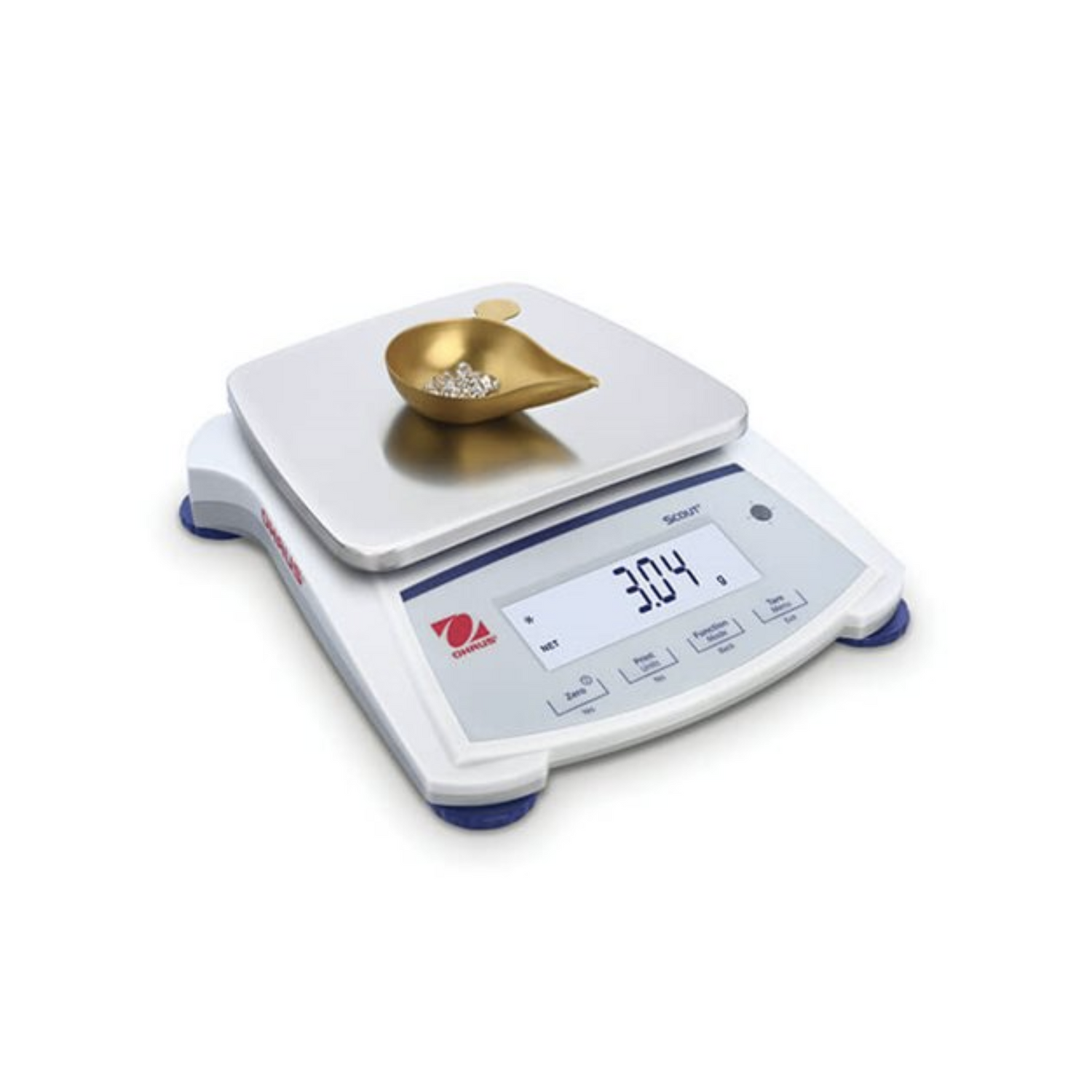

Ohaus Scout SJX/E Jewellery Scales

Class II Legal-for-Trade Portable Balances Ideal for Jewelry Weighing

Designed for a wide range of Legal-for-Trade applications, the Class ll and Class III certified SJX Carat and Gold balances are ideal for weighing jewelry, precious metals and gemstones. Equipped with superior overload protection, large backlit display, fast stabilization time, multiple weighing units, application modes and connectivity options, these slim balances offer a truly user-friendly weighing experience.

Standard Features

• Class ll Legal-for-Trade compliant balances are suitable for countertop retail applications. Manual internal settings allow for easy calibration.

• Expanded connectivity options including RS232, USB host, USB device, and Ethernet allow for convenient data logging and communication.

• Advanced weighing technology ensures reliable, repeatable weighing results.



Specifications

Scout SJX/E Brochure

 Model SJX323N/E SJX622N/E SJX1502N/E SJX6201N/E
Capacity  320 ct (64g) 620g 1500g 6200g
Readability  0.01 ct (0.001 g) 0.1 g 0.1 g 1 g
Stabilization time(s) 1.5 1 1.5 1
 Construction  ABS housing & stainless steel pan
Draftshield  Yes              | No
Calibration  User-selectable external span or linearity calibration
Tare range  Full capacity by subtraction
Weighing units g, kg, ct, oz, ozt, dwt, lb, grn
Application modes  Weighing, Parts Counting, Percent Weighing, Check Weighing, Totalization, Density Determination, Display Hold
Typical battery life  80 hours
Power requirement  AC adapter (included) or 4 AA batteries (not included)
Specified temperature range  Class II: 10 °C (50 °F) to 30 °C (86 °F) at 10% to 80% relative humidity, non-condensing Class III: 10 °C (50 °F) to 40 °C (104 °F) at 10% to 80% relative humidity, non-condensing
Storage conditions  -20 °C (-4 °F) to 55 °C (131 °F) at 10% to 90% relative humidity, non-condensing
Communication  RS232, USB Host, USB Device, Ethernet or Bluetooth (available as accessories)
Display type  Backlit LCD: 6-digit 7-segment with white LED backlight
Display size  0.78 in / 20 mm digits
Pan size (W X D) Ø 3.7 in / Ø 93 mm    |  Ø 4.7 in / Ø 120 mm  | 6.7 × 5.5 in / 170 × 140 mm
Balance dimensions (W x D x H)

8 × 8.7 × 4.1 in

202 × 222 × 103 mm   |       8 × 8.8 × 2.1 in

                                               202 × 224 × 54 mm

Shipping dimensions (W x D x H) 11.8 × 9.8 × 5.1 in 300 × 250 × 129 mm  | 11.8 × 9.8 × 3.4 in 300 × 250 × 86 mm
Net weight  2.2 lb / 1 kg
Shipping weight  3.3 lb / 1.5 kg
