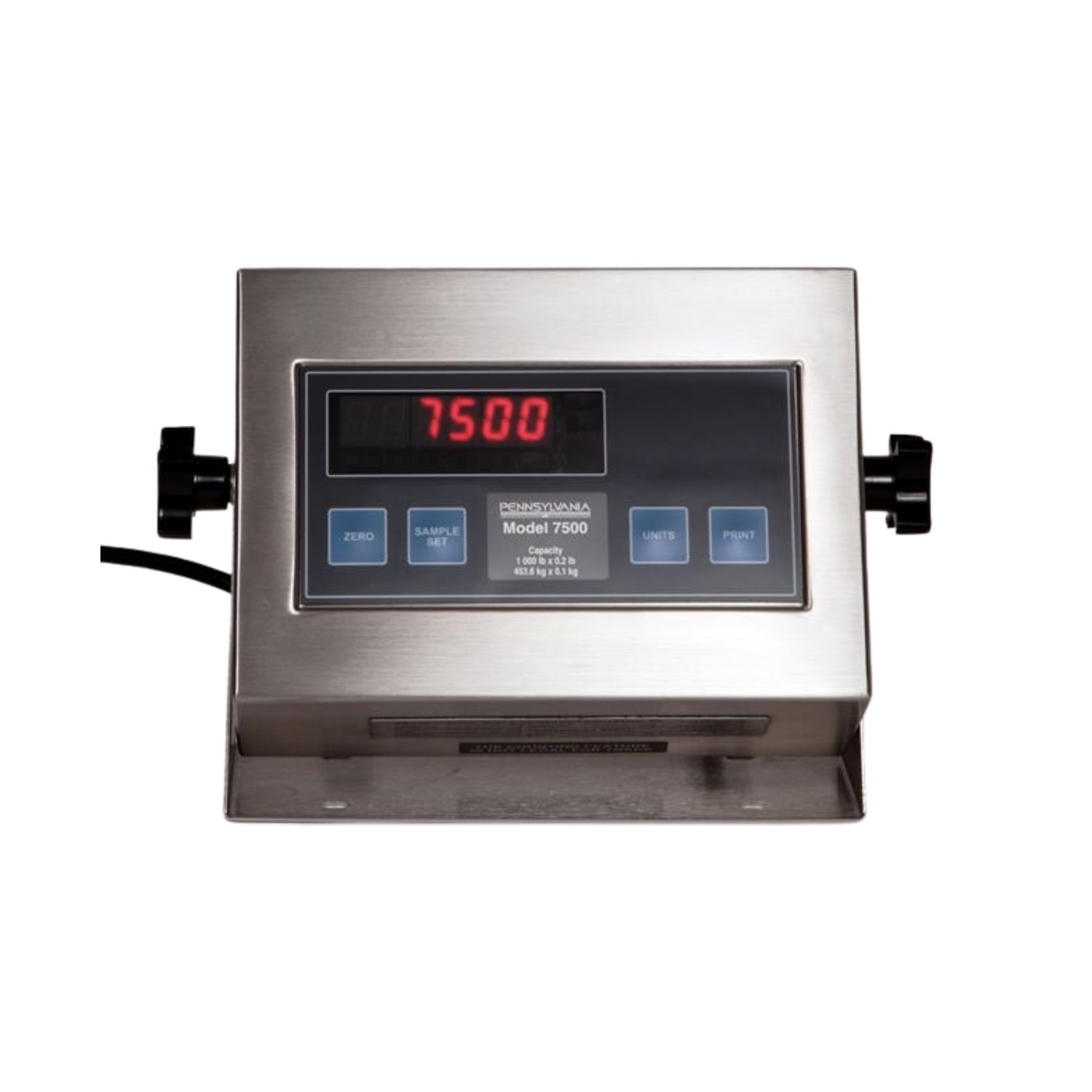

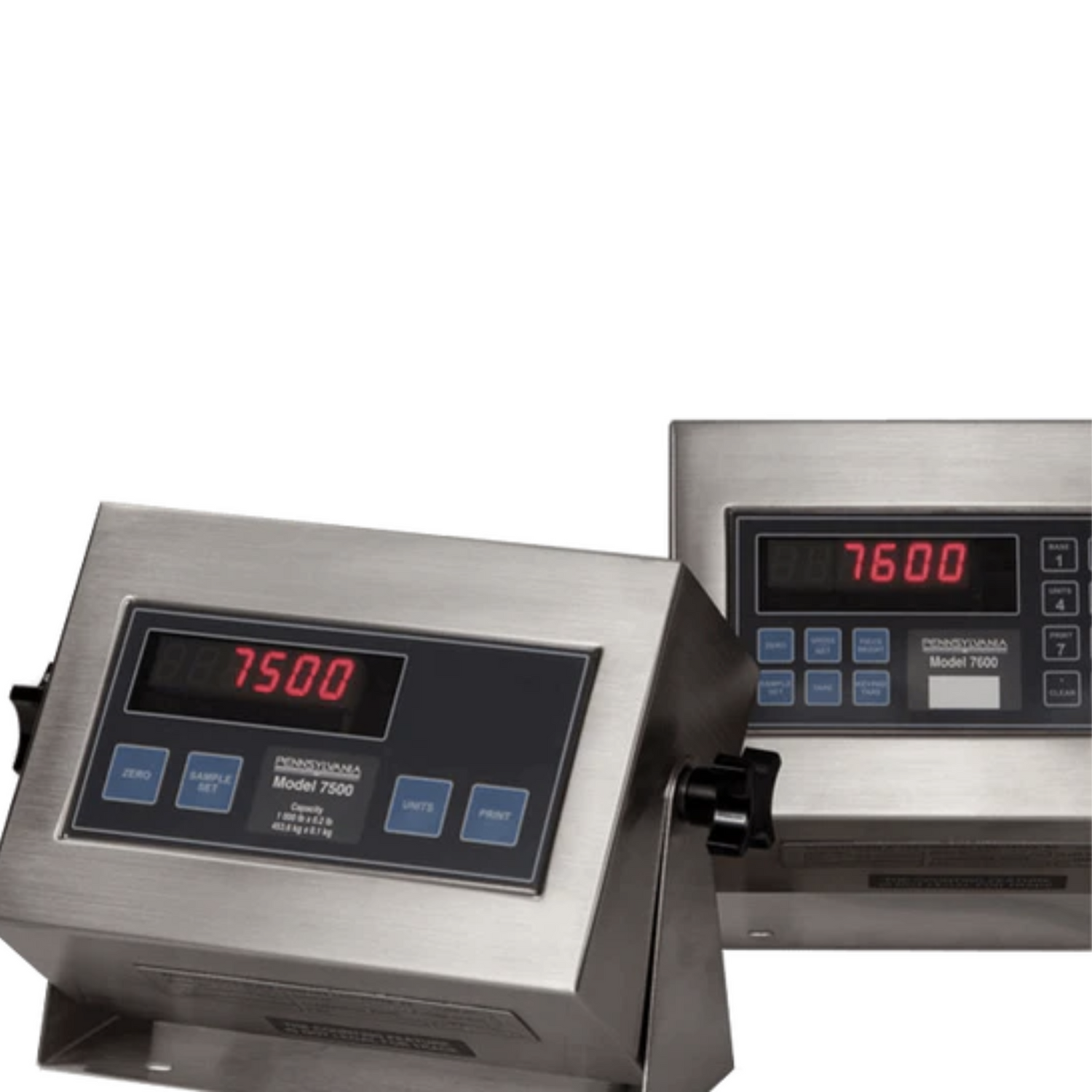

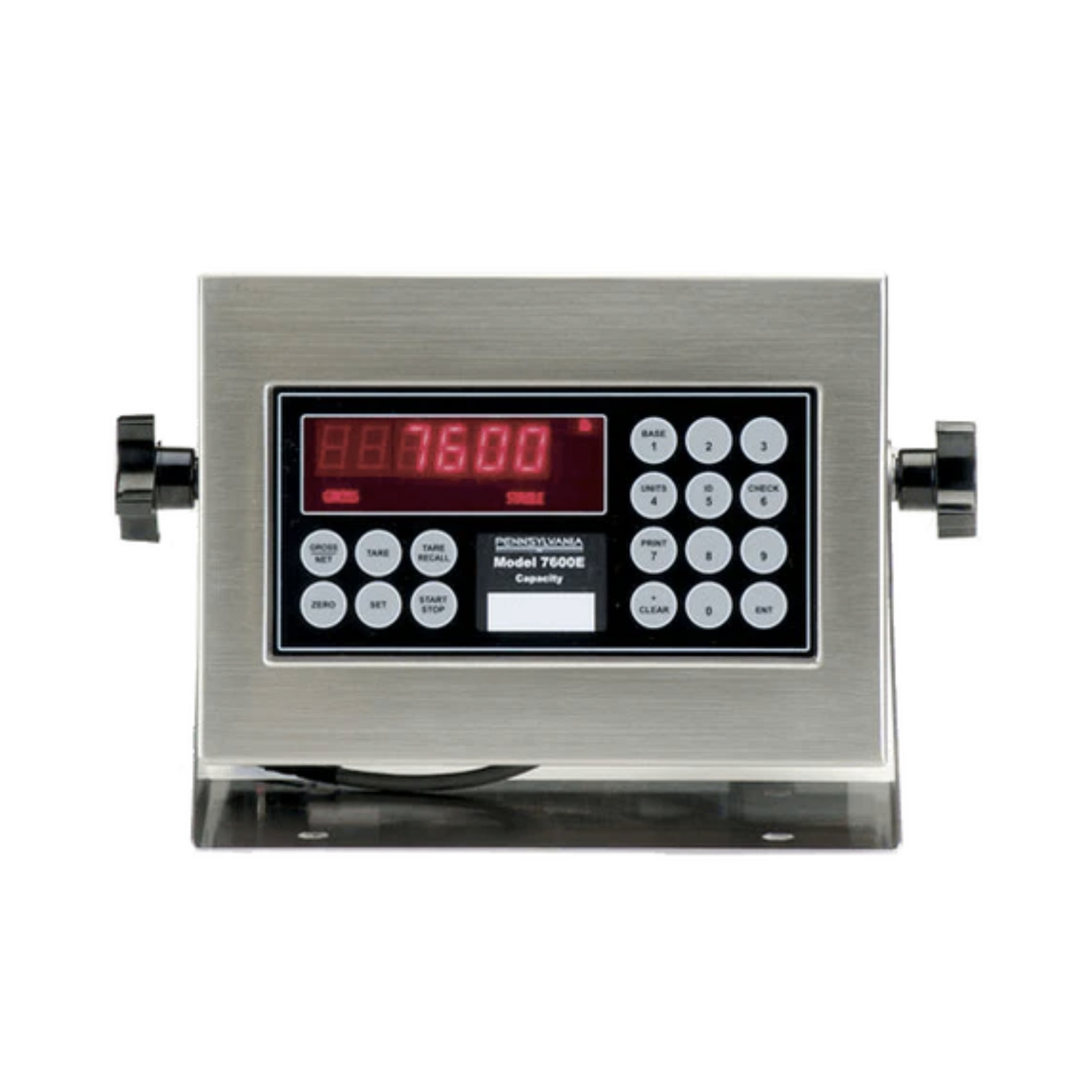

Pennsylvania Scale 7500 & 7600 Count & Weigh Indicator

Flexible, Easy to Use, Accurate

Outstanding flexibility and performance with many standard features; ideal universal replacement indicators for whatever you weigh or count. Technician-friendly set-up and Sustained Accuracy™ make these ideal for new installations or field replacement using existing platforms or load cells. Wide range of standard optional features.

Ship pre-matched when ordered with any Pennsylvania base or platform. Whatever you count or weigh, a new, technologically-advanced 7500 or 7600 series digital weight indicator will exceed your expectations.

Practical Technology Breakthrough

16,777,216 INTERNAL COUNTS + 60 Updates/Second
PLUS+ Series universal main board for direct interchange
Calibration protected by Access Code to prevent unauthorized access
True HD power cord for industrial applications
Quick disconnect OR sealed cable entry for load cell wiring
Part of a family of indicators designed for batching, heavy capacity, weight or count

System Data Communications

Programmable addressable RS-232 Option ETHERNET Option Analog Output 0-10 VDC or 4-20 mA jumper selected Option Solid State Relays (AC or specify DC) for batching (7600) Option REMOTE DISPLAY with or without button functions, menu selected as Master or Slave via RS-232 Option UPS Worldship, FedEx, and other emulated strings, option setting Programmable data string, option setting Label printing, option settings for Eltron/Zebra label printers Time/Date (7600) optional 7500

Technical Specifications

System-friendly design for integrated applications Display: Red 0.56″ high intensity LED Impedance 87-2000 Ohms, Sensitivity 0.1 microvolt/grad; Excitation 5 VDC 140ma (optional 240ma)

Physical Dimensions

9″w x 6.44″h x 4″d without U-bracket 11″w x 7″h x 4″d on U-bracket stand with knobs (allow 1″ space behind for cable fittings) Optional Panel Mount (contact factory) or uncased versions

Approvals

National Type Evaluation Program, NTEP: 97-009A31 to 10,000 divisions Canadian Weights & Measures: AM-5647 4869, Rev. 3

Warranty

The parts and components of this Pennsylvania Scale product are warranted for four years from date of retail delivery against defects in materials or workmanship, subject to the terms and conditions of our standard warranty.
