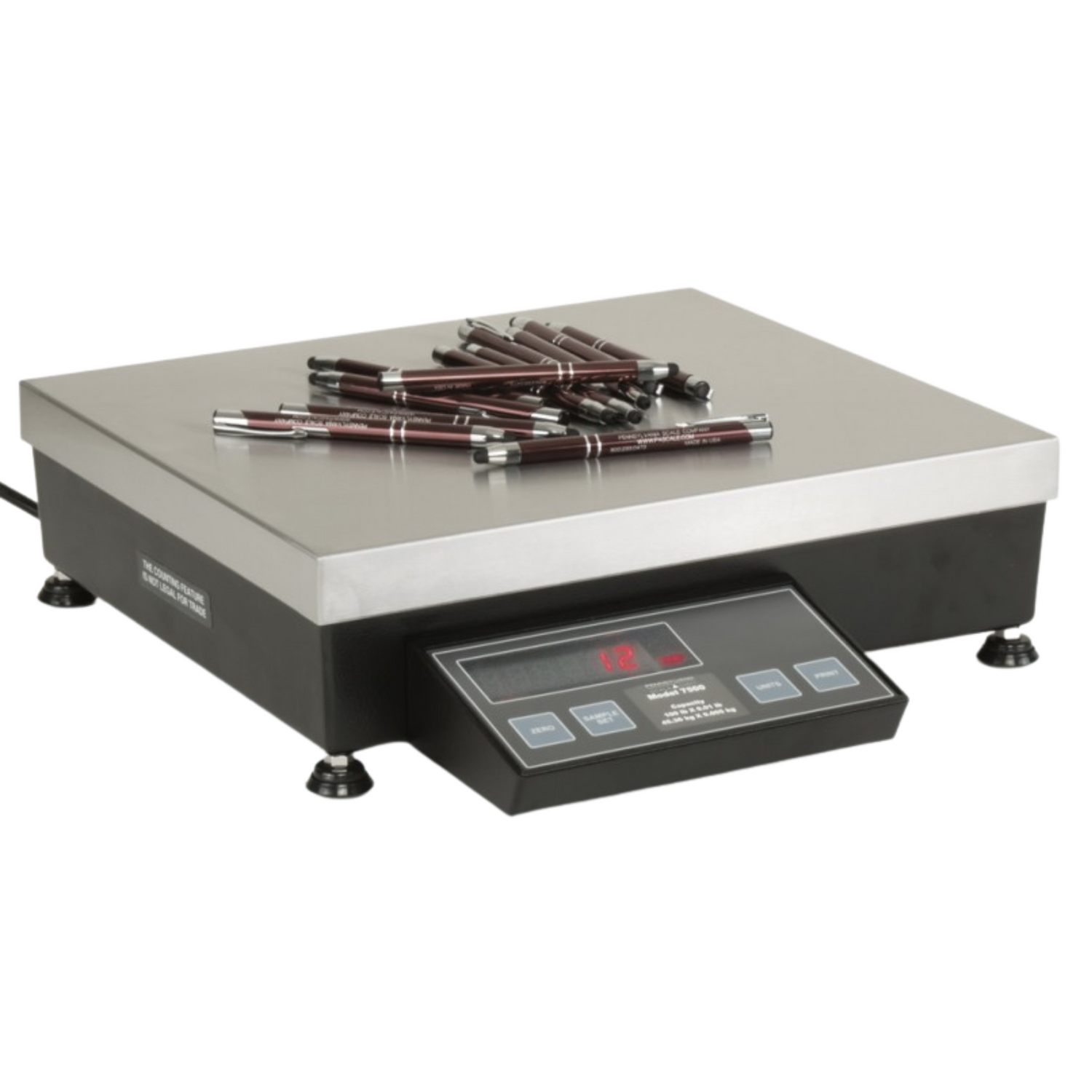

Pennsylvania Scale 7500 Bench Count & Weigh Scale
Fast, Accurate, and Dependable
Designed for speed and exceptional accuracy, the 7500 series is the heart of any inventory control requirement.
Standard Features
- Fast, one button counting
- Auto Sample Update (TM) for improved accuracy
- 1 part in 1 million internal resolution
- Powerful and flexible RS-232 data link for printers, data collection, or manifest systems
- Weight displayed in two different units of measure
- Heavy duty cast construction
Specifications
|
Weight Capacities |
Capacity lb/kg 2 lb x 0.0002 lb – 907.2 g x 0.1 g 5 lb x 0.0005 lb – 2268 g x 0.5 g 10 lb x 0.001 lb – 4536 g x 0.5 g 20 lb x 0.002 lb – 9.072 kg x 0.001 kg 50 lb x 0.005 lb – 22.68 kg x 0.005 kg 100 lb x 0.01 lb – 45.36 kg x 0.005 kg 150 lb x 0.02 lb – 68.04 kg x 0.01 kg 200 lb x 0.02 lb – 90.72 kg x 0.01 kg Platform 8 x 8” – 203 x 203 mm 8 x 8” – 203 x 203 mm 12 x 14” – 305 x 356 mm |
| Display Module |
Stable, 0.56” 6-digit, 7 segment, bright green LED display Zero; hold for Zero/Sample Set Unit (choose 2 weight units and count) Print |
| Count Features |
Auto Sample Update (TM) for improved accuracy (4) pre-set sample sizes, 10-20-50-100 pieces (can be programmed for any sample sizes) Fast, one-button operation |
| Data Communications |
Bi-directional RS-232 data output; flexible & powerful Programmable data stream for easy custom formats Network Addressable Compatible with a wide range of serial input printers Fast, easy set-up |
| Physical Dimensions |
14” (L) x 15.5” (W) x 5.25” (H); 15.25 lb. 356 mm (L) x 394 mm (W) x 133 mm (H); 6.92 kg |
| Options |
|
