Description

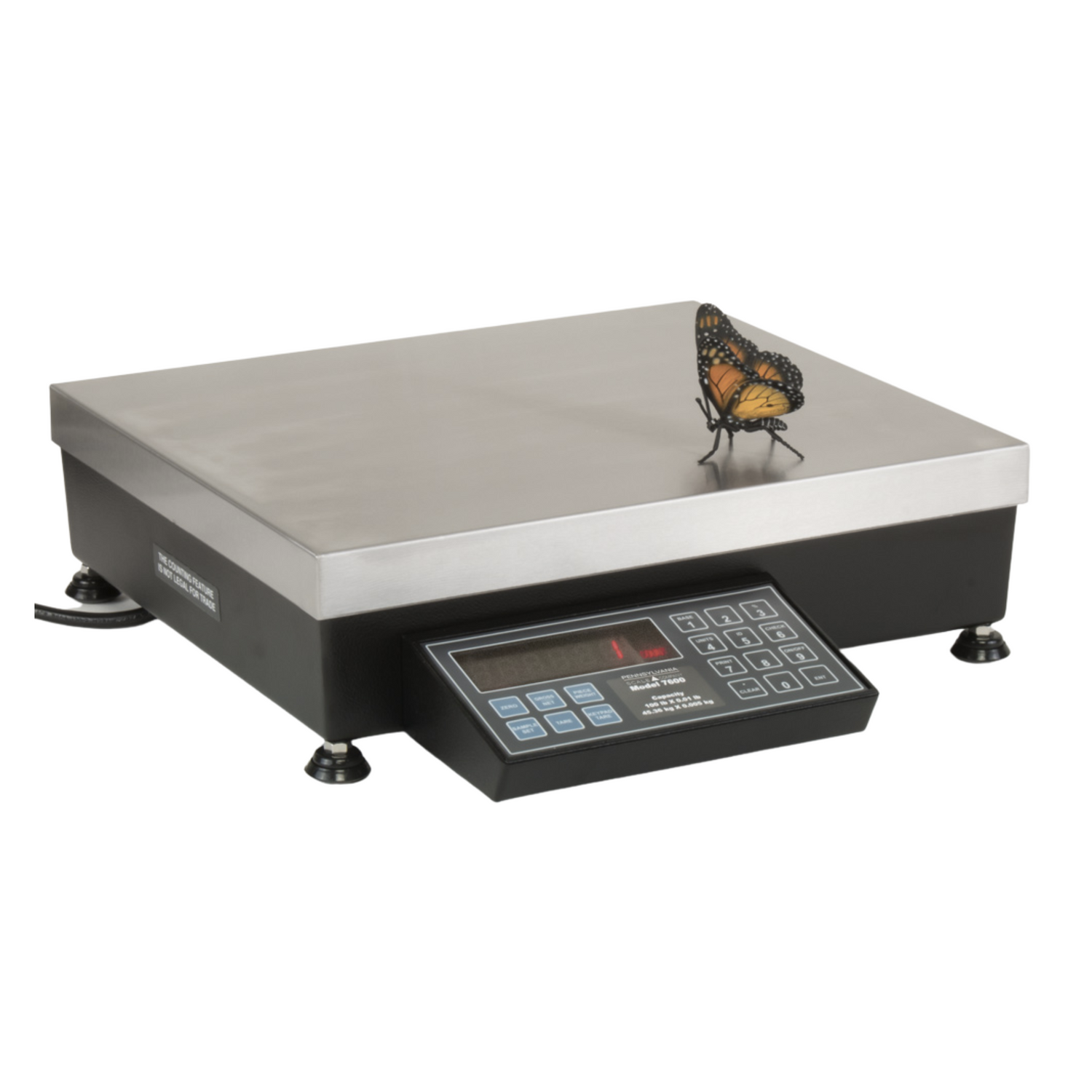

Pennsylvania Scale 7600 Bench Count and Weigh Scale

From simple one-button counting to sophisticated inventory control systems, the 7600 Series bench counting scales have a long list of features designed to adapt to your changing needs. Single or dual base counting. Rugged cast construction. Clean, efficient design means impressive accuracy and stable counting and weighing in a wide range of requirements.

Standard Features

Heavy duty cast construction
Clean, convenient design–bright, stable display
Full numeric keyboard for entry of Tare Weights, 6-digit I.D., Sample Quantity, and Average Piece Weight
1 part in 1 million; high resolution
Optional Battery/AC power for portability
Automatic Sample UpdateTM
Weight displayed in (2) units of measure plus count

Specifications

Applications	Shipping or receiving verifications Checking quantities for production or inventory Rental Scales for short term use: single or dual platform Bench or portable weighing and counting Shipping manifest systems or SPC/SQC Quality control
Weight Capacities	Capacity lb/kg 2 lb x 0.0002 lb – 907.2 g x 0.1 g 5 lb x 0.0005 lb – 2268 g x 0.5 g 10 lb x 0.001 lb – 4536 g x 0.5 g 20 lb x 0.002 lb – 9.072 kg x 0.001 kg 50 lb x 0.005 lb – 22.68 kg x 0.005 kg 100 lb x 0.01 lb – 45.36 kg x 0.005 kg 150 lb x 0.02 lb – 68.04 kg x 0.01 kg 200 lb x 0.02 lb – 90.72 kg x 0.01 kg Platform 8 x 8” – 203 x 203 mm 8 x 8” – 203 x 203 mm 12 x 14” – 305 x 356 mm 12 x 14” – 305 x 356 mm 12 x 14” – 305 x 356 mm 12 x 14” – 305 x 356 mm 12 x 14” – 305 x 356 mm 12 x 14” – 305 x 356 mm
Display Module	Stable, 0.56” 6-digit, 7 segment, bright green LED display Sealed, rugged, touch panel display Major functions are highlighted for ease of use
Remote Base/Load Cell Compatibility (optional)	Suitable for a wide range of bases and load cells Excitation: 10 V Impedance: 87 to 2,000 ohms Sensitivity: 1, 2, or 3 mv/V
Count Features	Auto Sample Update™ for accuracy enhancement (4) Pre-set sample sizes plus keyboard entry Display of Percent of Error or Accuracy when sampling Display/Key entry of Piece Weight (or Piece Weight per thousand) Sample and Sample-to-bulk counting with 2nd optional platform
Weighing Functions	Pushbutton or keyboard Tare entry Display of Gross/Net /Tare weights (2) standard metrological weight units
Data Communications	Bidirectional RS-232 standard. Communication options include: USB Virtual Comport, USB HID Keyboard Emulation, Wired Ethernet, WiFi, Analog Output, selectable 0-10VDC or 4-20m
Physical Dimensions	14” (L) x 15.5” (W) x 5.25” (H); 15.25 lb 356 mm (L) x 394 mm (W) x 133 mm (H); 6.92 kg
Options	Battery/AC power for portability, Dual base for scale AND remote base counting and weighing, Setpoint/Relays for process control, Analog output 0-10 VDC or 4-20ma, barcode label printing and scanning, stack alarm lights, roller conveyor and custom designs.
