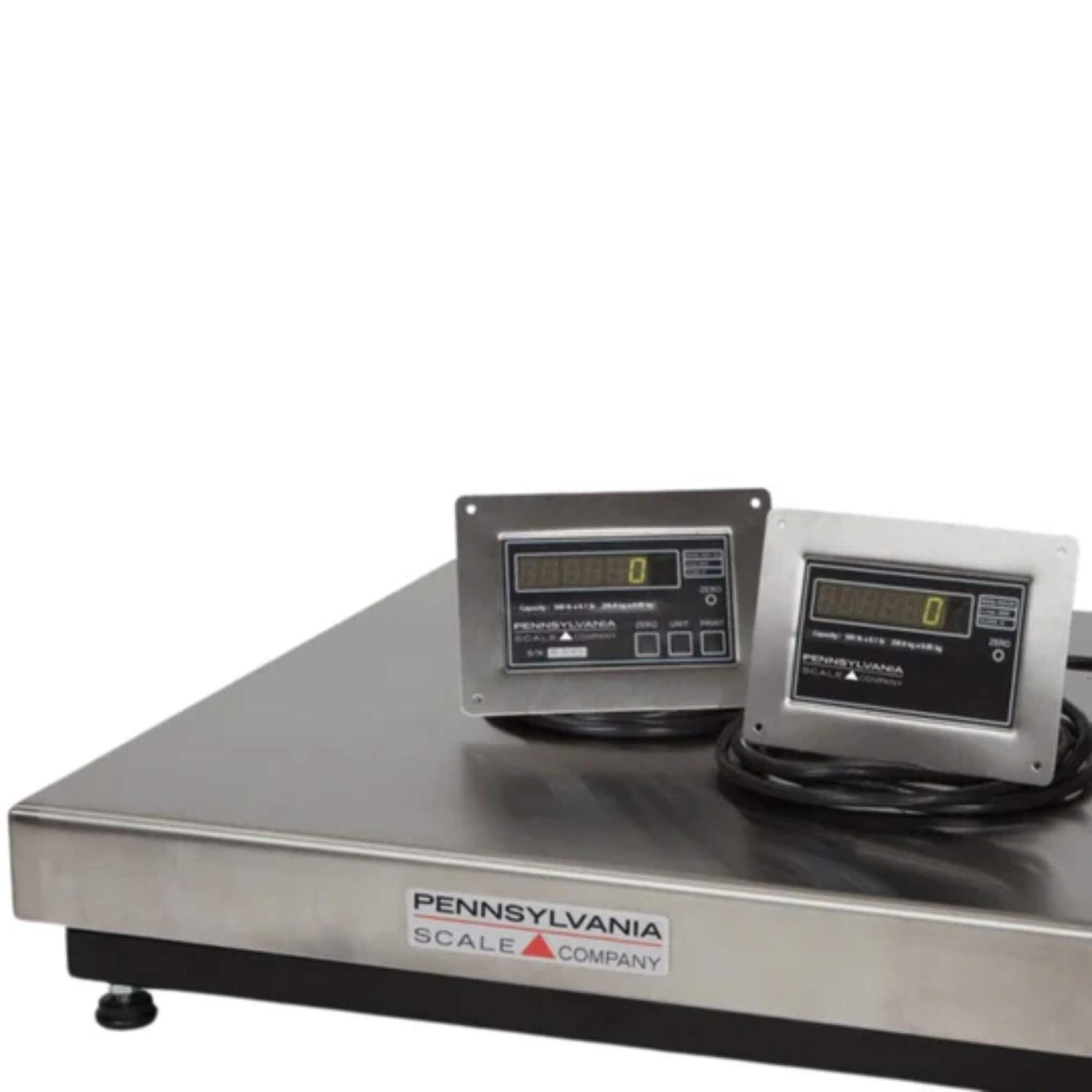

Pennsylvania Scale M64 Airline Baggage Scale
Rugged designs conform to a wide range of architectural installations. Heavy duty stainless steel top plate; durable powder-coated finish; exceptional reliability and Sustained Accuracy. Extra rugged construction for long life and hard use. Up to four displays per scale with designs for curbside check-in or shared check-in stations. Join the many airports worldwide that have increased accuracy and reduced maintenance costs with the 64 Series rugged baggage scale designed for baggage check-in operations.
Standard Features
- Superb performance and Sustained Accuracy
- Up to (4) four remote displays with/without buttons
- SS flush panel mount displays or custom surface mount
- Standard green or high intensity red LED displays
- Weighing 5000 divisions in two units of measure, typically lbs/kgs
- Capacity either 500 x 0.1 lbs or 1000 x 0.2 lbs (or specify)
- Suitable for commercial applications
- Fully supported designs back to 1991; modular interchangeable parts
- Platform sizes 18″ x 18″, 18″ x 24″, 24″ x 24″ at 5″ profile; larger custom sizes at 3″ profile
- Easy installation and attachment for bagwell or kiosk
- Simple calibration and maintenance
Specifications
- Universal PLUS+ series Main Board is interchangeable and retrofits existing scales
- Power 110/115 VAC 50/60 Hz or specify 220/240 VAC or DC power 12/24 VDC
- HD power cord to main controller and Y-cable to remote displays standard 10′ (or specify longer length)
- Optional solid state relays or 12 VDC relay outputs for operator alerts
- Standard RS-232 output is versatile and programmable
- Sizes > 24″ x 24″ use (4) HD industrial SESB load cells for extra heavy duty performance, 3″ nominal height with height adjustment and anchor plates
- Sizes < 24″ x 24″ use proven single point HD load cell and standard anchor brackets
- Buttons ZERO, UNITS, PRINT or no buttons as per application
- Electronics Conversion Kit Package for Existing Platforms
-
Wide range of capacities and resolutions; suitable for Commercial Applications up to 10,000 divisions Aluminum enclosure with (1), (2), (3), or (4) remote displays with 10′ cables Remote displays with/without buttons ZERO, UNITS, PRINT AC power via HD power cord to CPU unit only Fast, easy calibration to existing platforms for remodeling situations Opening requirement for flush mount display: 5-3/4″ x 3-1/2″
-
Data Communication
Standard fully programmable RS-232 communication DB9 connector or screw terminals for Send/Receive/Ground
