Description
Description

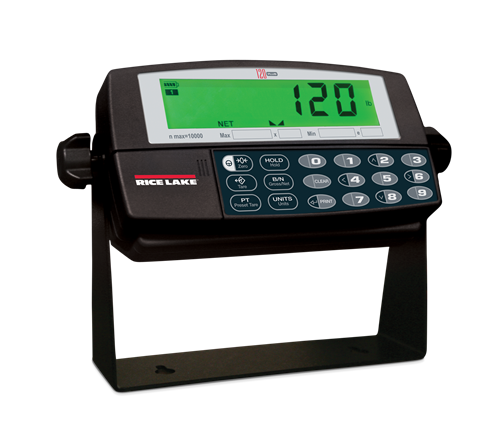

Rice Lake 120 Plus Weight Indicators
120 Plus Weight Indicators provide plenty of function for everyday weighing, whether in the office or on a dry workbench in a warehouse. Ideal for scales and balances, 120 Plus weight indicators feature a durable plastic enclosure showcasing the attractive and easy-to-read backlit LCD display along with a full keypad for quick configuration. Two internal setpoints, battery operation and time & date function round out the 120 Plus's impressive set of features.
Download the 120 Plus Brochure.
Notable Features
- Large .8" LCD display with backlight
- Powered with rechargeable battery or wall adapter
- Power save feature for 700 hours of battery life
- Two setpoints with delay and timer selections
- Three digital inputs
- Ten stored tare values
- Display hold (based on 3-second average)
- Body mass index (BMI) function
- Time and date (volatile)
| Excitation Voltage | 5 VDC, 4 x 350 Ω or 8 x 700 Ω load cells |
| Analog Signal Input Range | -0.6 mV/V - 3.0 mV/V |
| Analog Signal Sensitivity | 0.3 μV/graduation minimum, 1.5 μV/grad recommended |
| Measurement Rate | 120: 30, 15, 7, 3 per second 120 Plus: 30 per second |
| System Linearity | Within 0.01% of the full scale |
| Resolution | Internal resolution: 1 million internal graduations Display resolution: 10,000 displayed graduations |
| Display | 0.8 in (20 mm) 6-digit LCD with backlight 7-segment digits |
| Status Annunciators | Designators for: center of zero, stand still, gross, net, lb, kg, oz, g |
| Keyboard | Zero, tare, preset tare, hold, gross/net, units, numeric 0-9, clear, enter/print |
| Circuit Protection | RFI, EMI, and ESD protected |
| Serial Output | EDP port: Full duplex RS-232 Printer port: Output-only RS-232 or active 20 mA current loop Both ports: 9600, 4800, 2400, 1200, 600, 300 bps; 7 or 8 data bits; even, odd or no parity |
| Power | Line voltages: 115 or 230 VAC Frequency: 50 or 60 Hz |
| Digital Inputs | 120 Plus: Requires option card 24-volt source 3 digital inputs 2 digital outputs |
| Load Cell Connection | Cord grip entry Detachable plug (optional) |
| Operating Temperature | -10 °C to 40 °C/14 °F to 104 °F (legal) -10 °C to 50 °C/14 °F to 122 °F (industrial) |
| Rating/Material | Enclosure: heavy gauge ABS |
| Weight | 2.6 lb (1.2 kg) |
| Approvals | NTEP -10,000 Divisions, Class III/IIIL, CC# 03-059A1, Measurement Canada AM-5517, Class III/IIIHD at 10,000 Divisions; OIML approved, TC 7028, TC7628; T 5692 at 10,000 Divisions CE marked |
| Warranty | 1 year limited warranty |
