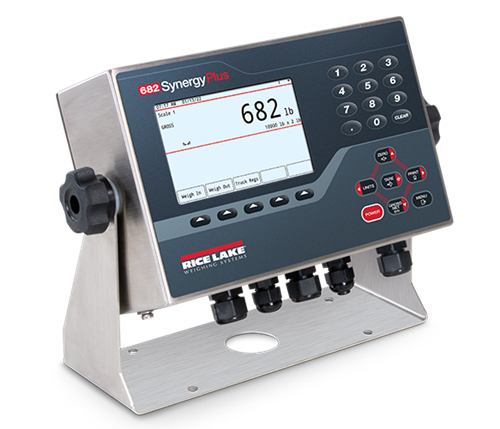

682 Synergy Series Weight Indicator

Name: 682 Synergy Series Weight Indicator
Brand: Rice Lake
Availability: InStock

Service & Calibration Support

Interweigh Systems provides calibration, service, and technical support for all equipment we sell.

Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.

Certified test weights are also available to support quality control programs and internal verification procedures.

Ordering & Configurations

Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.

To receive pricing or discuss availability, contact our team with details about your application and environment.

Contact Now for Immediate Pricing

Description

RiceLake 682 Synergy Series Weight Indicator

Standard Features

constructed with 304 stainless steel and has an IP69 ingress rating to stand up to high-pressure, high-temperature washdowns found in food processing and other environments.
Graphical, LCD colour display with configurable softkeys
Numeric, tactile keypad for scale operations, numeric entry and navigation
Multi-language operation and text entry
Formattable tickets
Battery backed time and date
Multiple communication options
Fieldbus communication using Rice Lake’s SCT-2200 modules and RS-485 port
Built-in web server for remote access, systems integration and data monitoring
Built-in Truck In/Out application
Stainless steel IP69 enclosure
Four onboard configurable digital I/O points, TTL logic
Local/Remote

Specifications

Power:
Line Voltage: 100 to 240 VAC, 50 to 60Hz
Optional: 9 to 23 VDC

Power Consumption:
~3.2W (AC) with one 350 ohm load cell, 15W max;
4W with four 350 ohm load cells or eight 700 ohm load cells

Excitation Voltage:
10 VDC (± 5 VDC), 8 × 350 ohm or 16 × 700 ohm load cells

Analog Signal Input Range:
-5 mV to +70 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum
1 μV/graduation recommended

A/D Sample Rate:
6.25 to 120 Hz, software selectable

Resolution:
Internal: 8,000,000
Display: 1,000,000

System Linearity:
Within 0.01% full scale

Digital I/O:
Four configurable I/O, 5V logic

Communication Ports:
Two RS-232 (three-wire)
RS-485/422 (two-wire or four-wire)
Micro USB (device)
Ethernet TCP/IP (10/100)
Wi-Fi
Bluetooth®

Status Annunciators:
Zero, Gross/Net, Tare, Wi-Fi, Bluetooth®

Display:
Five-inch LCD, 800 × 480 pixel, 500 NIT

Keys/Buttons:
Flat membrane panel, tactile feel
18 buttons plus 5 softkeys and power

Temperature Range:
Legal: 14 °F to 104 °F (-10 °C to 40 °C)
Industrial: 14 °F to 122 °F (-10 °C to 50 °C)

Dimensions:
(W x H x D)
11.6 × 8.6 × 4.0 in (29.47 × 21.85 × 10.16 cm)
With RJ45 option: 11.6 × 8.6 × 4.5 in (29.47 × 21.85 × 11.43 cm)

Weight:
6.25 lb (2.84 kg)

Rating/Material:
IP69 (IP66 with RJ45 option)
AISI 304 Stainless Steel

Warranty:
Two-year limited

Approvals:
NTEP CC 19-021, Class III/IIIL, 10,000d
Measurement Canada AM-6121, Class III/IIIHD,
10,000d
OIML pending
EU-NAWI pending
cULus
CE
UKCA
