Rice Lake

880/880 Plus Performance Series Programmable Weight Indicator/Controller

Name: 880/880 Plus Performance Series Programmable Weight Indicator/Controller
Brand: Rice Lake
Availability: InStock

Service & Calibration Support

Interweigh Systems provides calibration, service, and technical support for all equipment we sell.

Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.

Certified test weights are also available to support quality control programs and internal verification procedures.

Ordering & Configurations

Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.

To receive pricing or discuss availability, contact our team with details about your application and environment.

Contact Now for Immediate Pricing

Description

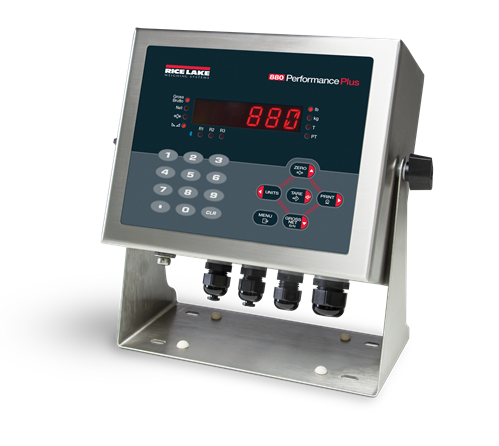

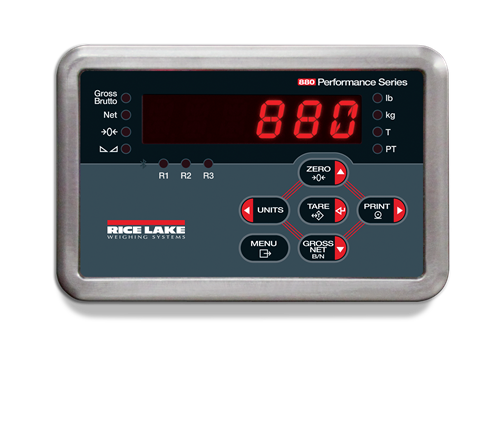

Rice Lake 880/880 Plus Performance Series Programmable Weight Indicator/Controller

Standard Features

LED display, 0.56 in (14 mm), six-digit, 14-segment
RS-232 or RS-485 serial port
USB device port connects directly to a PC
USB host port for connecting keyboard or flash drive (v4.00 or newer)
Ethernet TCP/IP polled or continuous
AC or DC models
Built-in DIN-rail clips on controller box (panel mount)
Display and controller can be separated up to 250 ft (panel mount)
Hardware slot for one option card
Operator functions through menu key for audit trail, preset tare, accumulator, time & date and setpoints
Audit trail tracking for configuration and calibration changes. Password protection for user and configuration changes.
20 setpoints with latched batch engine or unlatched outputs
Four onboard digital I/O channels
Programmable ticket formats up to 1,000 characters for header text, gross, net, accumulator and setpoints
Five-point linearization calibration
Local/remote operation
Multi-range or multi-interval weighing
Filter settings for light, medium and heavy noise
NEMA Type 4X/IP69K-rated gasket effectively keeps internal components out of harm’s way

Specifications

Power:
Line voltages: 100 to 240 VAC
Frequency: 50 to 60 Hz
DC voltages: 12 to 24 VDC
Power consumption: AC: 15 W, DC: 20 W

Excitation Voltage:
10 VDC, 16 × 350 ohm or 32 × 700 ohm load cells

Analog Signal Input Range:
-45 mV to 45 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum at 7.5 Hz;
1.0 μV/graduation recommended

A/D Sample Rate:
7.5 to 960 Hz, software selectable

Resolution:
Internal: 8 million counts/8,000,000 23 bit
Display: 999,999

System Linearity:
± 0.01% full scale

Digital I/O:
Four I/O onboard (max), primary keys, pseudo
functions, batching functions

Communication Ports:
RS-232 full-duplex or RS-485 half-duplex;
USB type-A connector, USB micro A/B connector 2.0; Ethernet TCP/IP

Status Annunciators:
Gross, net, center of zero, standstill, lb, kg, tare, preset tare, multi-range/interval 1/2/3

Display:
LED, 0.56 in (14 mm), six-digit, 14-segment with decimal or comma

Keys/Buttons:
Membrane panel, tactile feel

Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 14 °F to 122 °F (-10 °C to 50 °C)

Dimensions:
(W × H × D)
Panel: 6 × 4 × 4.95 in
(152 × 102 × 126 mm)
Universal: 9.87 × 9.38 × 4.33 in
(251 × 238 × 110 mm)

Weight:
Panel: 2.5 lb (1.2 kg);
Universal: 12 lb (5.4 kg)

Rating/Material:
Panel display: stainless steel, NEMA Type 4X, Type 12 and IP69K
Panel Mount Controller: Aluminum
Universal: stainless steel, IP69K

Warranty:
Two-year limited

EMC Immunity:
EN 50082 Part 2 IEC
EN 61000-4-2, 3, 4, 5, 6, 8, 11, 10 V/m

Approvals:
NTEP CC 13-080 Class III/IIIL, 10,000d
Measurement Canada AM-5931C
Class III/IIIHD, 10,000d
OIML R76/1992-GB1-04.02 Class III, 10,000d
EU Test Certificate TC8463
UL/cUL Listed (universal)
UL/cUL Recognized (panel mount)
CE Marked
