RiceLake CLS Series Forklift Scale

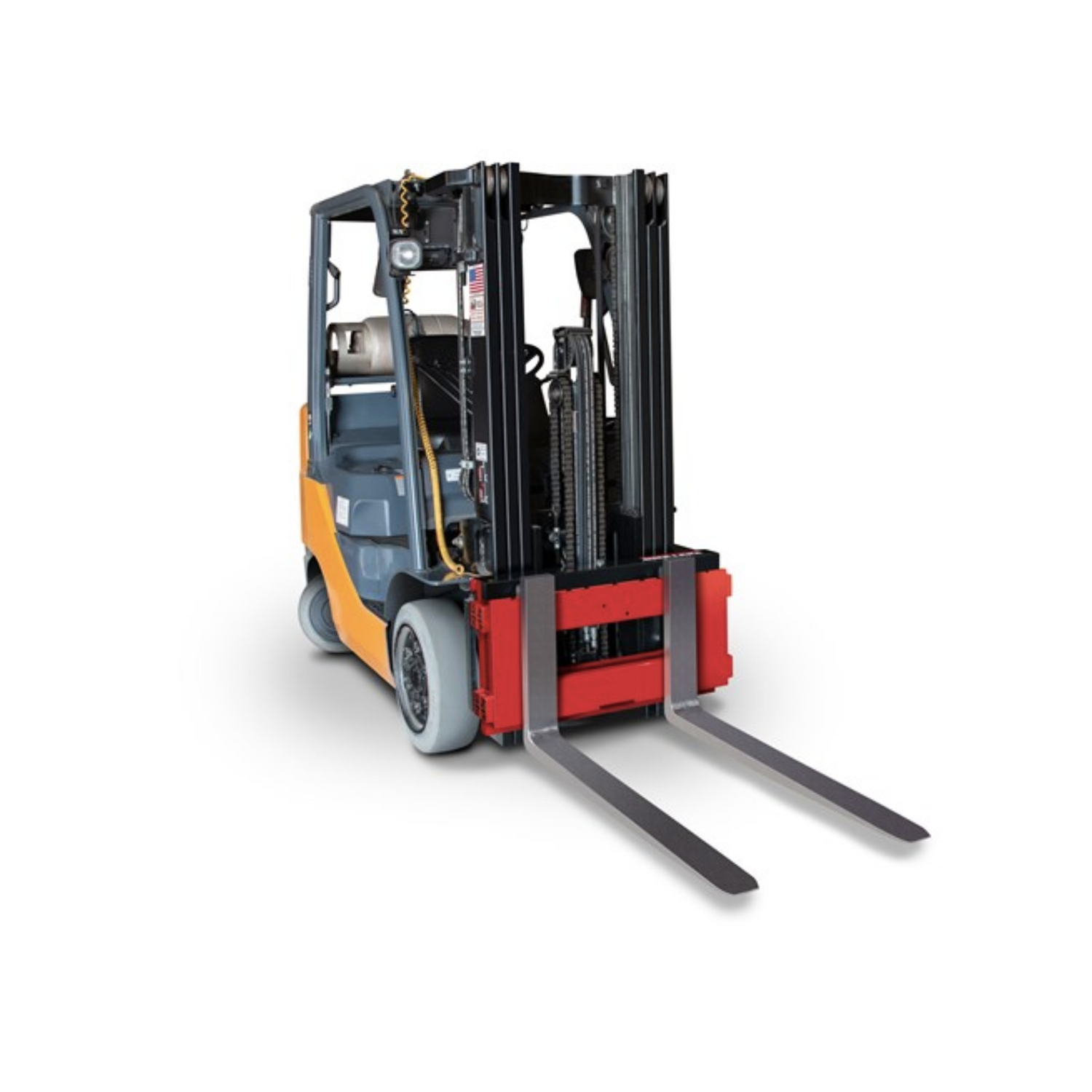

The CLS Series forklift scale mounts directly to most Class II and Class III forklifts, saving material handling processes time and money. The CLS can be paired with a device for weight display through a cable or cableless connection.
Scale Carriage
- 28 in (Class II), 5,000 × 5 lbs, NTEP Certified
- 34 in (Class II), 5,000 × 5 lbs, NTEP Certified
- 38 in (Class III), 8,000 × 5 lbs, non-NTEP
- 1-1/2 in thick front and back painted steel plates coupled by four flexures
- Top cleats are welded, pinned and bolted
- Welded centering pin
- Two 5,000 lb s-beam load cells
- Molded coiled cable, up to 15 ft uncoiled

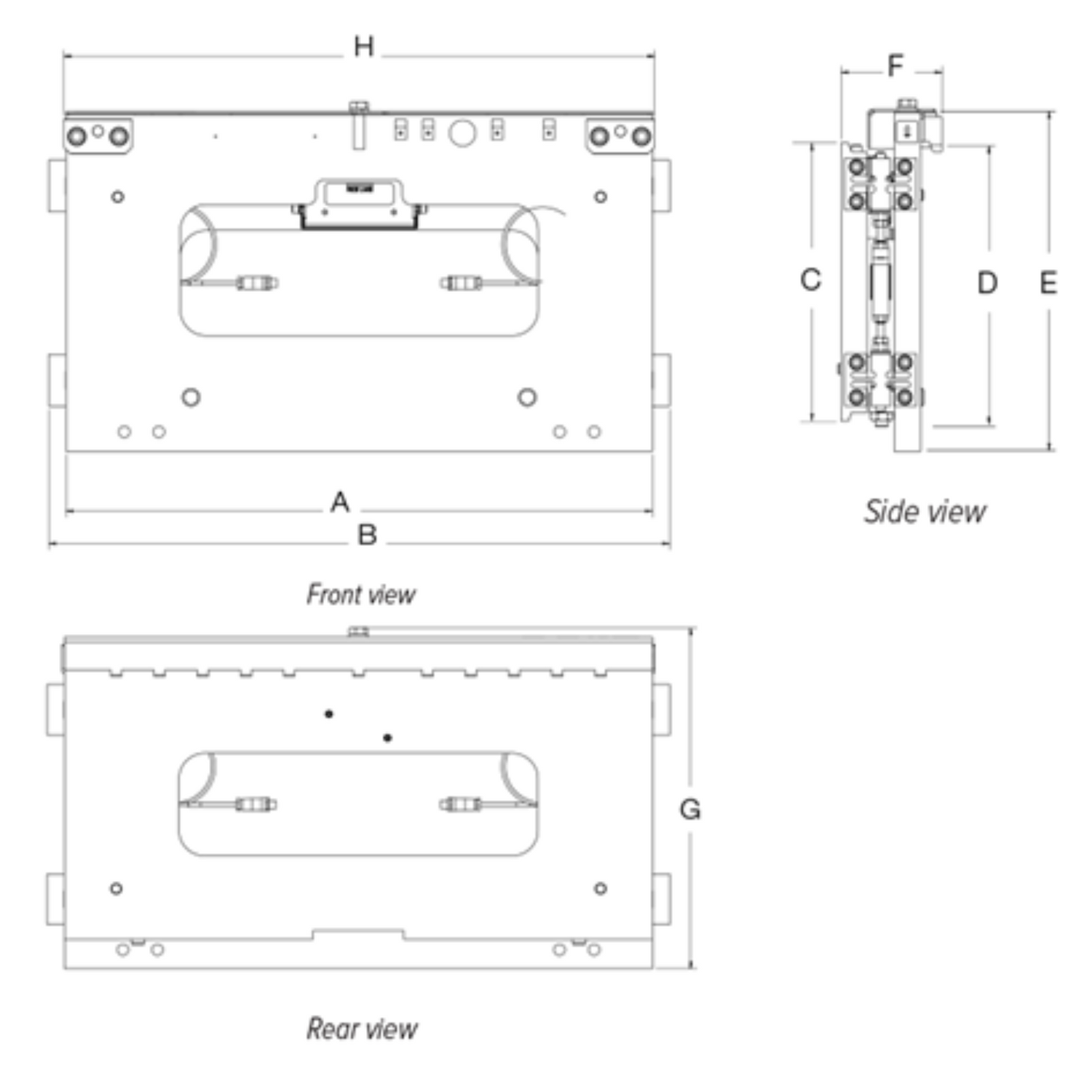

| CLS Dimensions Class II | |||
|---|---|---|---|
| 28 in, 5,000 lb | |||
| A | 28.00 in (711 mm) | E | 19.50 in (495 mm) |
| B | 30.00 in (762 mm) | F | 4.49 in (114 mm) |
| C | 16.00 in (406 mm) | G | 21.80 in (554 mm) |
| D | 16.29 in (414 mm) | H | 28.24 in (717 mm) |
| 34 in, 5,000 lb | |||
|---|---|---|---|
| A | 34.00 in (864 mm) | E | 19.50 in (495 mm) |
| B | 36.00 in (914 mm) | F | 4.49 in (114 mm) |
| C | 16.00 in (406 mm) | G | 21.80 in (556 mm) |
| D | 16.29 in (413 mm) | H | 34.24 in (870 mm) |
| CLS Dimensions Class III | |||
|---|---|---|---|
| 38 in, 8,000 lb | |||
| A | 38.00 in (965 mm) | E | 24.50 in (622 mm) |
| B | 40.00 in (622 mm) | F | 6.04 in (153 mm) |
| C | 20.00 in (508 mm) | G | 26.68 in (678 mm) |
| D | 20.15 in (512 mm) | H | 38.00 in (965 mm) |
