Rice Lake

CW-90 and CW-90X Checkweigh Indicator

Name: CW-90 and CW-90X Checkweigh Indicator
Brand: Rice Lake
Availability: InStock

Service & Calibration Support

Interweigh Systems provides calibration, service, and technical support for all equipment we sell.

Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.

Certified test weights are also available to support quality control programs and internal verification procedures.

Ordering & Configurations

Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.

To receive pricing or discuss availability, contact our team with details about your application and environment.

Contact Now for Immediate Pricing

Description

RiceLake CW-90 and CW-90X Checkweigh Indicator

The Bench Checkweigher of Choice

Ease of use, real-time data collection and rugged, stainless steel construction make the CW-90 digital weight indicator the equipment of choice for operators, quality control and maintenance departments.

The configuration menu of the CW-90 is accessible through the front keypad, eliminating the need to open the back of the indicator and expose the unit to moisture or contaminants. Access to these keypad controls can be limited to meet the operator’s needs. The CW-90 will store detailed information for up to 50 separate IDs, allowing for easy recall of previously saved information. An adjustable contrast display is visible in any environment.

Standard Features

PreVent™ breather vent
Storage for up to 50 IDs
Unit of measure: kg, gm, lb, oz, lb/oz
LED display, 0.8 in, six-digit, 14-segment
Two full duplex serial ports
Configurable print formats
Audit trail tracking
Optional communications: Ethernet, USB or fiber optic
Four configurable digital I/O
Reflash memory to upgrade firmware
Auto print capability
Battery backed up time and date
Accumulator

CW-90

Membrane keypad consisting of zero, units, print, tare, over, under, ID, target, 0 to 9, clear, decimal, enter, menu, power
304 stainless steel, IP66 rated

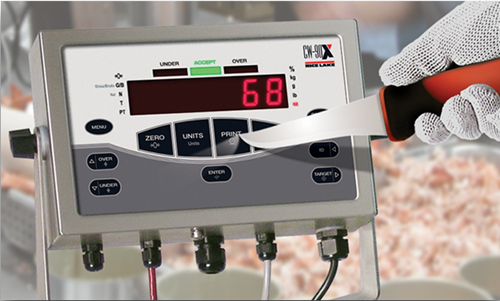

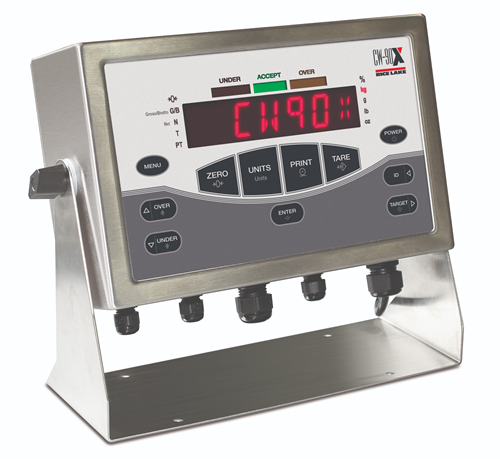

CW-90X

Piezo keypad consisting of zero, units, print, tare, over, under, ID, target, enter, menu, power
304 stainless steel, IP69K rated

Specifications

Power:
Line voltages: 115 to 230 VAC
Frequency: 50 to 60 Hz

Power Consumption:
1.5 A at 115 VAC (8 W)
0.75 A at 230 VAC (8 W)

Excitation Voltage:
+5 VDC 8 × 350 ohm or 16 × 700 ohm load cells

Analog Signal Input Range:
-0.5 mV/V to 4.5 mV/V

Analog Signal Sensitivity:
0.3 uV/graduation minimum
1.5 uV/graduation recommended

A/D Sample Rate:
7.5 to 960 Hz software selectable

Resolution:
Display: 100,000 graduations maximum

System Linearity:
± 0.01% full scale

Digital I/O:
Four channels on CPU board

Circuit Protection:
RFI, EMI, ESD protection

Status Annunciators:
Designators for percent, kg, gm, lb, oz, center of zero, G/B, N, T, PT, neg, motion

Display:
Large 0.8 in 14-segment, six-digit high-intensity red LED display

Keys/Buttons:
CW-90: Membrane keypad, 23 keys with international symbols
CW-90X: Piezo keypad, 11 keys with international symbols

Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)

Rating/Material:
CW-90: IP66, stainless steel
CW-90X: IP69K, stainless steel

Warranty:
CW-90: Two-year limited
CW-90X: Three-year limited

Approvals:
CW-90: NTEP CC 08-092,
CW-90X: NTEP CC 08-092, Class III/IIIL 10,000d
Measurement Canada AM-5710
OIML R76/2006-GBI-10.02
EU Test Certificate GB-1385
UL/cUL Listed
CE marked
