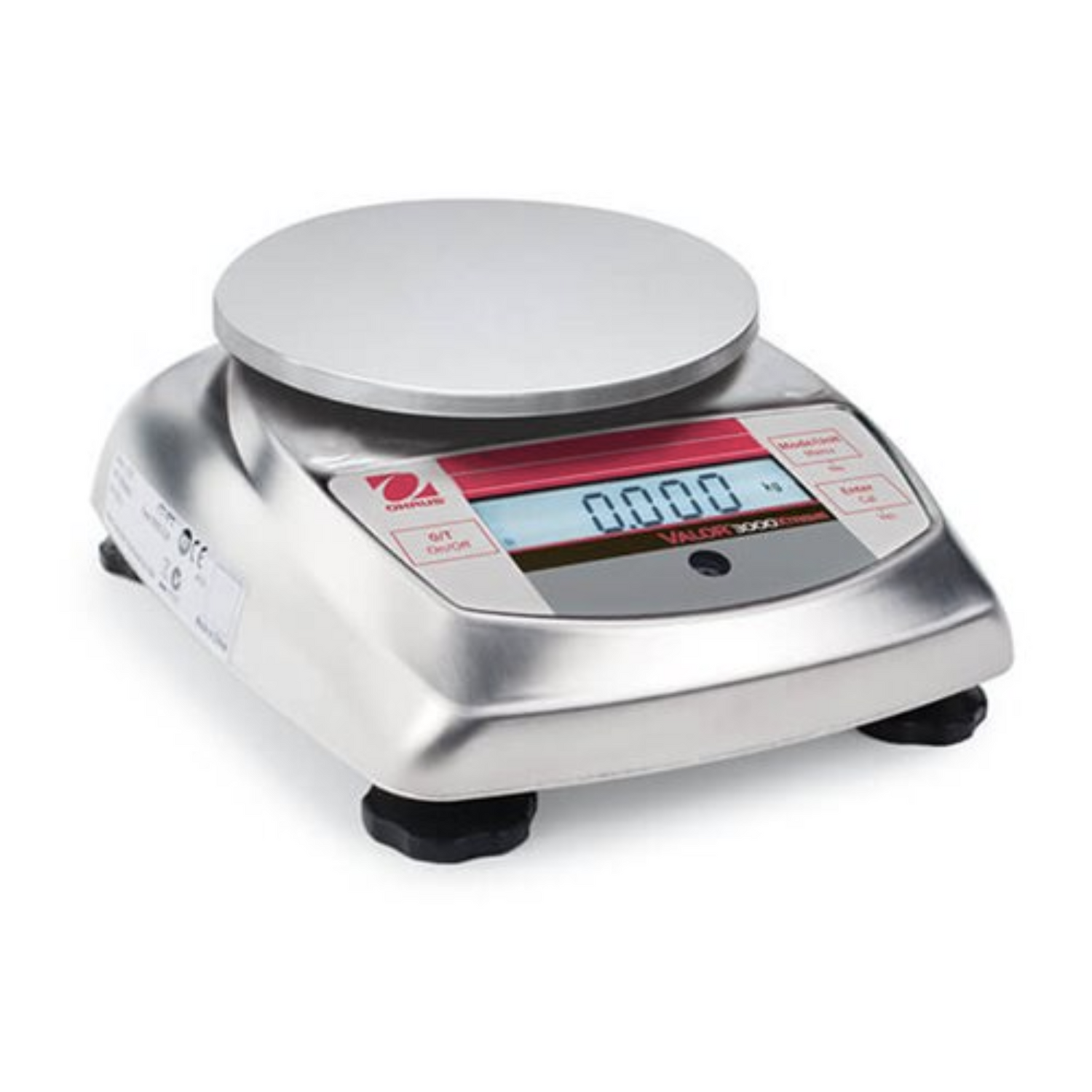

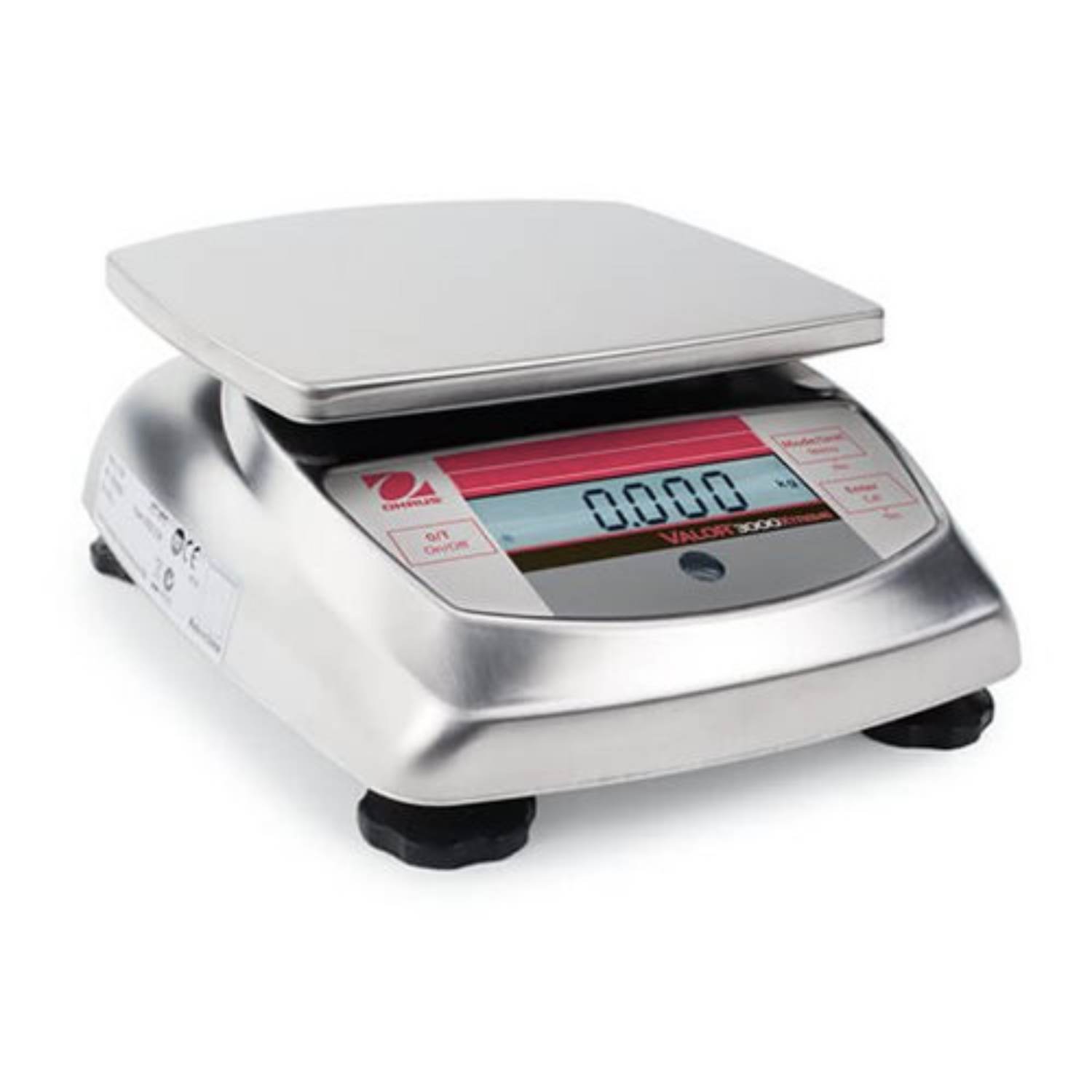

Ohaus Valor 3000 Xtreme

Rugged, Full Stainless Steel Design in a High Performance, Portable Scale.
The Valor 3000 Xtreme Compact Precision Scales are high-quality, durable products that are easy to use and hard to beat. The Valor 3000 Xtreme offers high precision 40,000d readability, durability, and ease-of-use, encased in a sleek and fully stainless steel compact housing. Washdown versions ensure that the Valor 3000 Xtreme meets the needs of even the most demanding environments.

Standard Features

• Extreme Design — Full stainless steel housing with added chemical resistance and removable stainless steel weighing pan are durable and easy to clean (NEMA 4X/IP65 water resistant models available).

• Extreme Protection — Technically advanced overload protection rated at 10x capacity is ideal for tough environments where capacity is frequently exceeded

• Extreme Performance — The Valor 3000 Xtreme offers resolutions up to 40,000d and 0.01g, providing precise measurements in demanding environments. User adjustable filtering and stability settings allow the Valor 3000 Xtreme to operate accurately in drafty and unstable conditions

• Extremely Friendly — OHAUS’ SmarText™ user interface utilizes a bright backlit LCD and simple text prompts to guide users through application use and scale setup, making the Valor 3000 Xtreme very easy to use

Specifications

 Valor 3000 Xtreme Brochure

 Models Capacity x Readability Capacity x Readability (*NTEP certified)
V31XH202

0.4409 x 0.00005 lb

7.055 x 0.0005 oz

7 x 1/8 oz

N/A

N/A

0.2 x 0.00001 kg

200 x 0.01 g

6.763 x 0.0005 fl oz

N/A
V31XH402

0.88185 x 0.00005 lb

14.1095 x 0.0005 oz

14 1/8 x 1/8 oz

N/A

N/A

0.4 x 0.00001 kg

400 x 0.01 g

13.5255 x 0.0005 fl oz

N/A
V31X501

1.1025 x 0.0005 lb

17.635 x 0.005 oz

17 5/8 x 1/8 oz

1lb:1.64 oz x 0.01 oz

1lb:1 5/8 oz x 1/8 oz

0.5 x 0.0001 kg

500 x 0.1 g

16.905 x 0.005 fl oz

N/A
V31XH2

4.409 x 0.0005 lb

70.55 x 0.005 oz

70 ½ x 1/8 oz

4 lb: 6.55 oz x 0.01 oz

4 lb : 6 ½ oz x 1/8 oz

2 x 0.0001 kg

2000 x 0.1 g

67.63 x 0.005 fl oz

N/A
V31XH4

8.8185 x 0.0005 lb

141.095 x 0.005 oz

141 1/8 x 1/8 oz

8lb:13.1 oz x 0.01 oz

8lb:13 1/8 x 1/8 oz

4 x 0.0001 kg

4000x 0.1 g

135.255 x 0.005 fl oz

N/A
V31X3

6.615 x 0.005 lb

105.8 x 0.05 oz

105 ½ x 1/8 oz

6 lb : 9.8 oz x 0.05 oz

6 lb : 9 ½ oz x 1/8 oz

3 x 0.0001 kg

3000 x 1 g

101.44 x 0.05 fl oz

N/A
V31X6

13.225 x 0.005 lb

211.65 x 0.05 oz

211 ½ x 1/8 oz

13 lb: 3.6 oz x 0.05 oz

13 lb : 3 ½ oz x 1/8 oz

6 x 0.001 kg

6000 x 1 g

202.9 x 0.05 fl oz

N/A
V31XW301

0.6615 x 0.0005 lb

10.585 x 0.005 oz

10 ½ x 1/8 oz

N/A

N/A

0.3 x 0.0001 kg

300 x 0.1 g

10.14 x 0.005 fl oz

N/A

V31XW3

V31X3N*

6.615 x 0.002 lb

105.80 x 0.02 oz

105 ½ x 1/8 oz

6 lb : 9.80 oz x 0.02 oz

6 lb : 9 ½ oz x 1/8 oz

3 x 0.0005 kg

3000x 0.5 g

101.44 x 0.02 fl oz

6.6 x 0.005 lb 105.8 x 0.05 oz 3 x 0.001 kg 3000 x 1 g

V31XW6

V31X6N*

13.225 x 0.005 lb

211.6 x 0.05 oz

211 ½ x 1/8 oz

13 lb: 3.6 oz x 0.05 oz

13 lb : 3 ½ oz x 1/8 oz

6 x 0.001 kg

6000 x 1 g

202.9 x 0.05 fl oz

13.225 x 0.005 lb 211.6 x 0.1 oz 6 x 0.002 kg 6000 x 2 g



 Weighing Units lb, decimal or fractional oz, lb:oz, fluid oz (of water), kg, g
Modes  Simple weighing, percent weighing, combined zero/tare, specific gravity (S)
Keyboard Three mechanical switches (1 left; 2 right)
Calibration Digital external span calibration
Display 7 segment, 6 digit, 0.78in / 20mm high LCD with white LED backlight
Display Indicators Center of zero, stability, over/under load, weighing unit and battery status
Tare Range  Full capacity by subtraction
Stabilization Time  3 seconds or less
Auto-Zero Tracking  Off, 0.5, 1 or 3 divisions
Operating Temp./humidity  32°F to 104°F (0°C to 40°C) at 10% to 95% relative humidity Non-condensing, up to 2.5 miles / 4000m above sea level
Power 9 – 12 VDC 0.5A AC wall adapter 100-120V AC, 50.60 Hz (included) or four 1.5 volt “C” batteries (not included)
Battery Life 50 hours  |  120 hours   | 50 hours.     | 120 hours        | 50 hours
Dimensions L x W x H 8.5 x 7.3 x 3 in / 218 x 186 x 77 mm
Pan Size L x W

4.7 in /120 mm dia.  | 5.8 x 6.2 in / 146 x 158 mm   | 5.8 x 6.2 in / 146 x 158 mm

Carton Dimensions L x W x H  12.79 x 9.92 x 5.51 in / 325 x 252 x 140 mm
Net Weight  2.6 lb / 1.2 kg   | 2.9 lb / 1.3 kg   | 3.1 lb / 1.4 kg
Shipping Weight  4.3 lb / 2 kg    |    4.6 lb / 2.1 kg   |    4.8 lb / 2.2 kg
Ingress Protection (battery power only)      -          |         -        |      -      |    -      |      -    |     -     |    -     | NEMA 4X/IP65**
