Valor 7000
Valor 7000 is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description

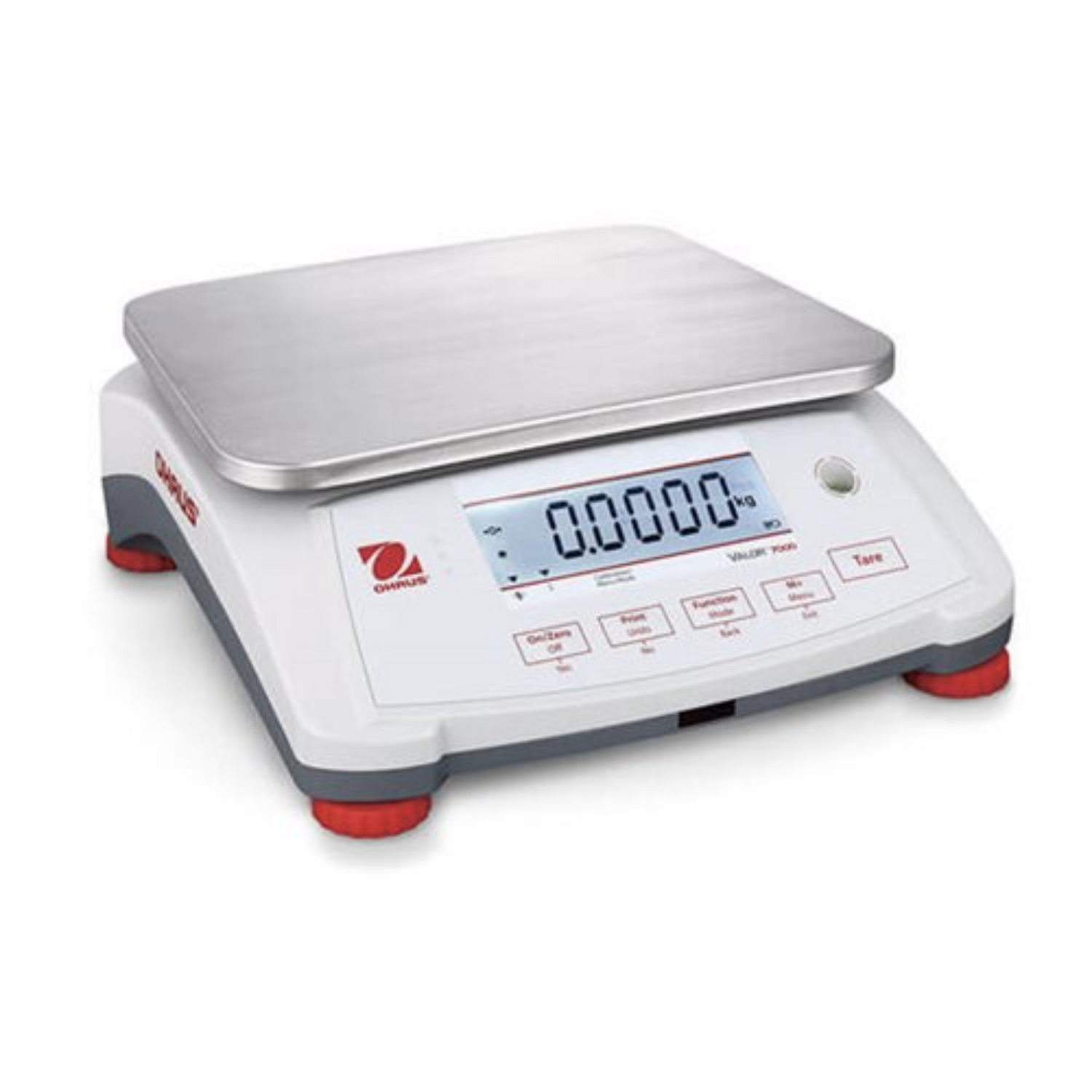

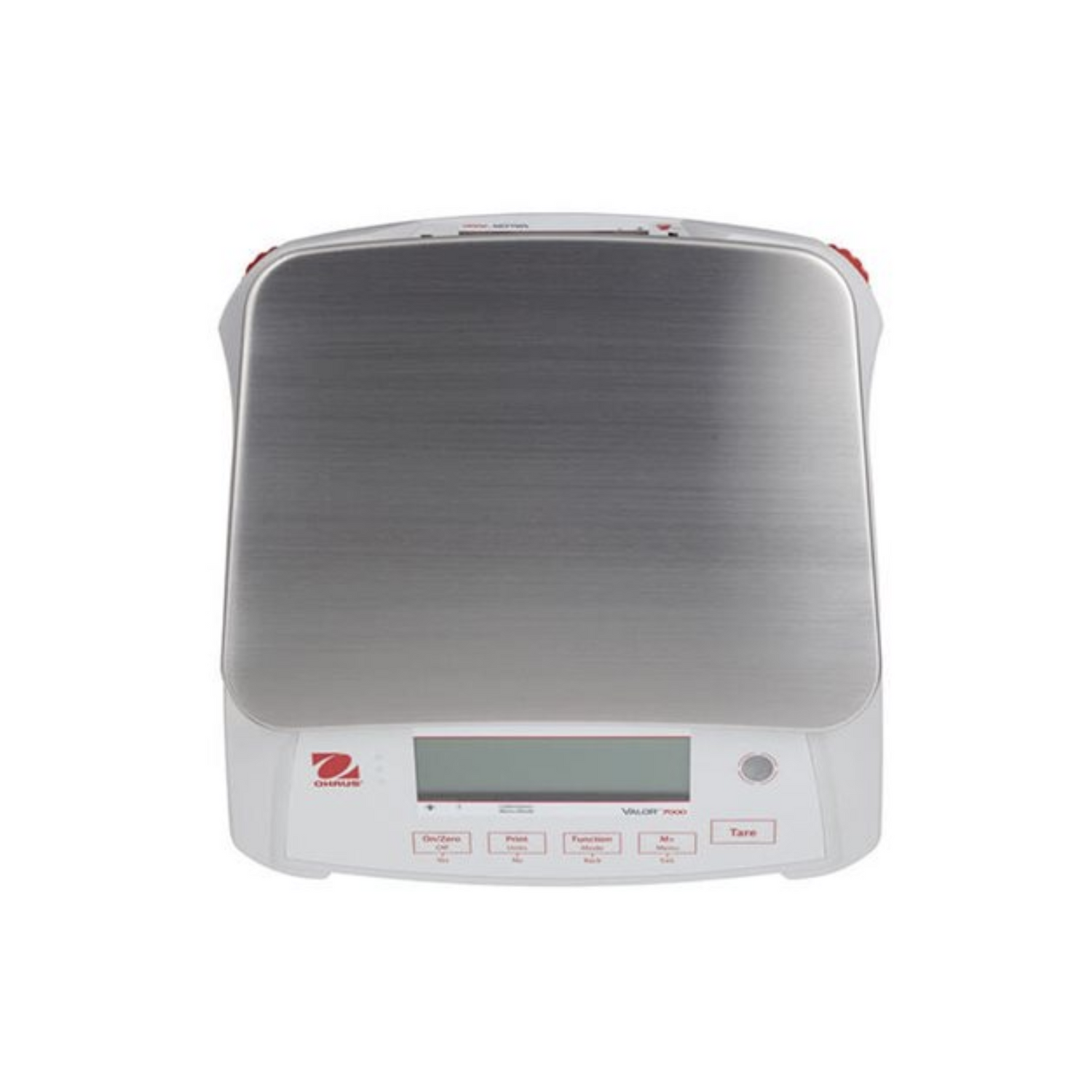

Ohaus Valor 7000 Bench Scale
Standard Features
Specifications
| Model |
V71P1502T |
V71P3T |
V71P6T |
V71P15T |
V71P30T |
|
Default capacity x readability |
1.5 kg × 0.00005 kg 3 lb x 0.0001 lb 1,500 g × 0.05 g 48 oz x 0.002 oz
|
3 kg × 0.0001 kg 6 lb x 0.0002 lb 3,000 g × 0.1 g 96 oz x 0.005 oz
|
6 kg × 0.0002 kg 15 lb x 0.0005 lb 6,000 g × 0.2 g 240 oz x 0.01 oz |
15 kg × 0.0005 kg 30 lb x 0.001 lb 15,000 g × 0.5 g 480 oz x 0.02 oz |
30 kg × 0.001 kg 60 lb x 0.002 lb 30,000 g × 1 g 960 oz x 0.05 oz |
|
Certified capacity x readability |
1.5 kg × 0.0005 kg 3 lb x 0.001 lb 1,500 g × 0.5 g 48 oz x 0.02 oz |
3 kg × 0.001 kg 6 lb x 0.002 lb 3,000 g × 1 g 96 oz x 0.05 oz |
6 kg × 0.002 kg 15 lb x 0.005 lb 6,000 g × 2 g 240 oz x 0.1 oz |
15 kg × 0.005 kg 30 lb x 0.01 lb 15,000 g × 5 g 480 oz x 0.2 oz |
30 kg × 0.01 kg 60 lb x 0.02 lb 30,000 g × 10 g 960 oz x 0.5 oz |
|
Maximum displayed resolution |
1:30,000 |
1:30,000 |
1:30,000 |
1:30,000 |
1:30,000 |
|
Certified/Approved Resolution |
1:3,000 |
1:3,000 |
1:3,000 |
1:3,000 |
1:3,000 |
|
Construction |
Stainless steel platform, ABS plastic housing | Stainless steel platform, ABS plastic housing | Stainless steel platform, ABS plastic housing | Stainless steel platform, ABS plastic housing | Stainless steel platform, ABS plastic housing |
| Weighing Units | kg, g, lb, oz, lb:oz kg, g, lb, oz (certified) |
| Application Modes | Weighing, Checkweighing, Checkpercent, Percent Weighing, Accumulation |
| Display | Front: 1.5 in / 40 mm high LCD display with white backlight, 6-digit, 7-segment Rear: 1 in / 26 mm high LCD display with white backlight, 6-digit, 7-segment |
| Checkweighing Indicators | 3 LED (yellow, green, red) with configurable operation and alert beeper |
| Operation | 5 mechanical keys plus two touchless sensors |
| Zero Range | 2% or 10% of full scale capacity |
| Tare Range | Full capacity by subtraction |
| Stabilization Time | 1 second |
| Auto-Zero Tracking | Off, 0.5, 1 or 3 divisions |
| Safe Overload Capacity | 150% of capacity |
| Power | 100-240 VAC / 50-60 Hz internal universal power supply, internal rechargeable lead acid battery |
| Battery Operation | 210 hours continuous use between recharges with 12 hour recharge time |
| Calibration | External, with user-selectable calibration weight value |

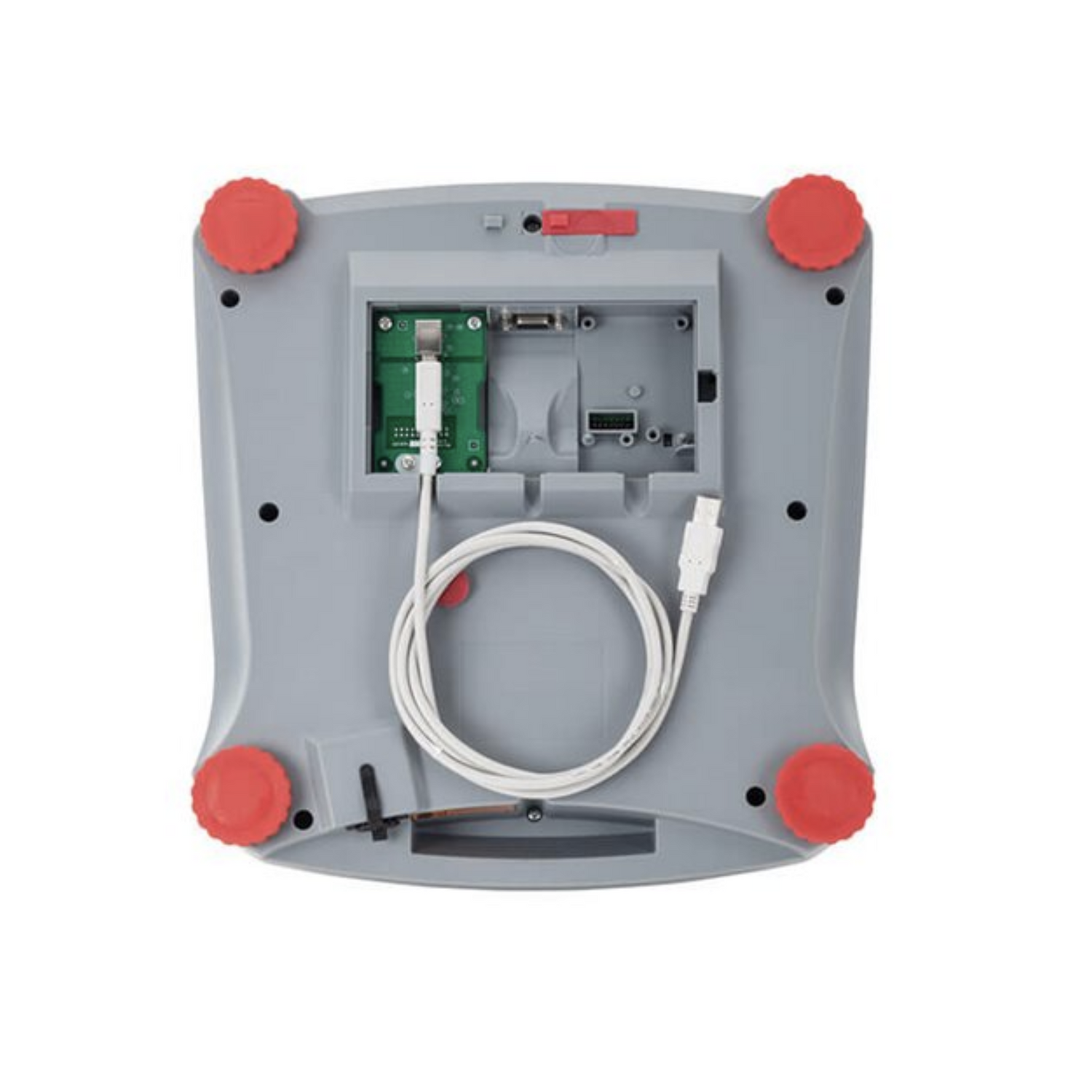

| Interface | Built-in RS232, optional 2nd RS232, USB, Ethernet |
| Operating Temperature Range | 14°F to 104°F / -10° C to 40° C |
| Ingress Protection | IP43 |
| Platform Size (W x L) | 11.8 × 8.9 in. / 300 × 225 mm |
| Scale Dimensions (W x L x H) | 12.2 × 12.9 × 4.6 in. / 311 × 327 × 117 mm |
| Shipping Dimensions (W x L x H) | 15.6 × 17.6 × 7.7 in. / 397 × 447 × 195 mm |
| Net Weight | 9.2 lb / 4.2 kg |
| Shipping Weight | 12 lb / 5.45 kg |
