Description
Description

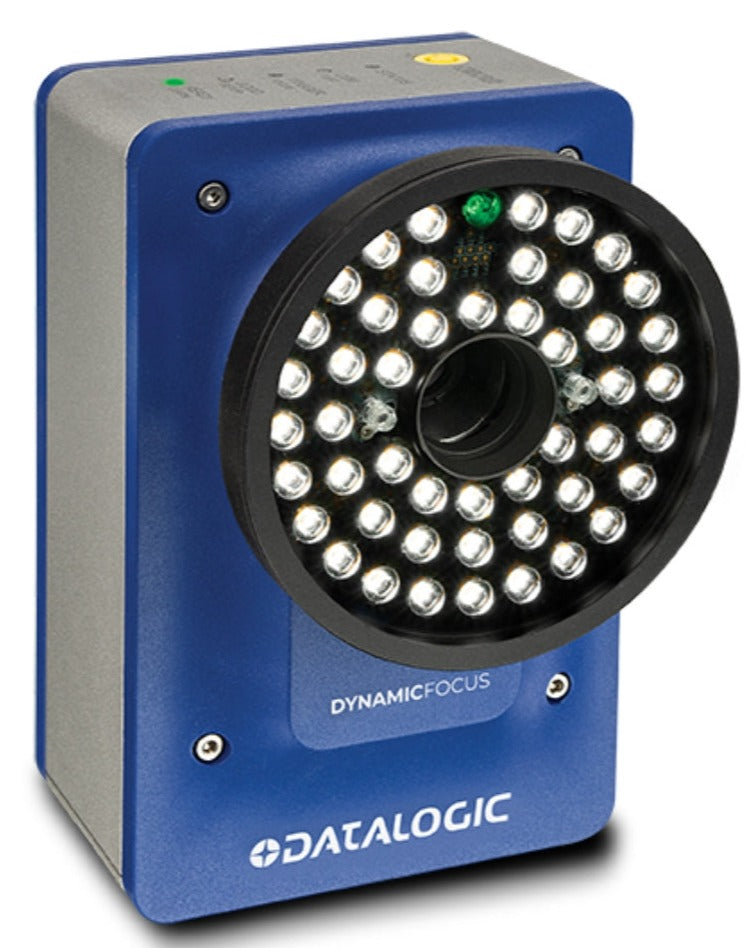

Datalogic AV900
High Performace 2D Reader
Standard Features
-9 MP image sensor, up to 32 FPS
-Patented dynamic or adjustable focus system offering extended depth of field
-Continuous, no-flashing white or red illumination
-Region Of Interest Windowing for higher frame rate
-Next generation decode algorithm for outstanding decoding capability on 1D, 2D, Stacked, or Postal symbologies
-Gigabyte Ethernet and SyncNet high-speed connectivity
-PackTrack capability for closer item spacing
-Multiple format image saving from full definition to a highly compressed .jpg
-Dual laser aiming for ease of installation
-e-GENIUS browser based interface compatible with any kind of operating system and hardware platform including PC’s and Tablet
-Extreme Industrial grade: IP65 for harsh environments with 0 to 50 °C / 32 to 122 ºF operating temperatures
Specifications
AV900
|
OPTICAL FEATURES |
|
|
Sensor Type |
CMOS, 9 MPixels |
|
Frame Rate |
Up to 32 frames/sec |
|
Optical Lens |
25 mm, 35 mm C-Mount lens |
|
Focus System |
Dynamic, Sequential, SW Adjustable |
|
Illumination |
Integrated Red or White |
|
DECODING CAPABILITY |
|
|
1D and Stacked Codes |
Code 128 (GS1-128); Code 39 (Standard and Full ASCII); Code 32 · MSI; Standard 2 of 5; Matrix 2 of 5; Interleaved 2 of 5; Codabar; Code 93 · Pharmacode; EAN-8/13 - UPC-A/E (including Addon 2 and Addon 5); GS1 DataBar Family; PDF417 (Standard and Micro PDF417) |
|
2D Codes |
Data Matrix ECC 200 (Standard,GS1 and Direct Marking); QR Code (Standard and Direct Marking); MicroQR Code; Maxicode |
|
Postal Codes |
Aztec Code Postal; Australia Post; Royal Mail 4 State Customer; Kix Code; Japan Post; PLANET; POSTNET; POSTNET (+BB); Intelligent Mail; Swedish Post |
|
SYSTEM |
|
|
Memory |
System RAM: 8 GB; eMMC Flash: 32 GB |
|
Microprocessor |
Intel Pentium Quad-core |
|
Operating System |
Linux |
|
Real-Time Clock |
Time and date stamping under software control or can be synchronized with time server |
|
COMMUNICATIONS INTERFACE |
|
|
Communication Interfaces |
2 Ethernet TCP/IP, 2 serial communication interfaces |
|
Internal Communication System |
SyncNet Technology |
|
Connectivity Modes |
Master/Slave, Ethernet Point to Point |
|
Programming Method |
e-GENIUS multi-language, browser based, on board HTML web server interface |
|
ELECTRICAL |
|
|
Supply Voltage |
24 VDC +/- 20% |
|
Power Consumption |
2A |
|
PHYSICAL CHARACTERISTICS |
|
|
Dimensions |
20.0 x 12.6 x 13.0 cm / 7.8 x 4.9 x 5.1 in |
|
Weight |
2,900 g / 6.4 pounds |
|
Chassis Material |
A380 Die Cast Aluminum |
|
ENVIRONMENTAL |
|
|
Humidity |
95% non condensing |
|
Protection Class |
IP65 |
|
Vibration Resistance |
SINE vibration as per EN60068-2-6 10-50 Hz: 0.4mm / 50-500 Hz: 2g 2h on all axis |
|
Shock Resistance |
EN60068-2-27, 15 g / 11 ms /3 times up and 3 times down on the primary axis. |
|
Fan Life |
L10 @ 40 degrees C: 50,000 hours |
|
Temperature |
Operating: 0 to 50 ºC / 32 to 122 ºF Storage/Transport: -20 to 70 ºC / -4 to 158 ºF |
