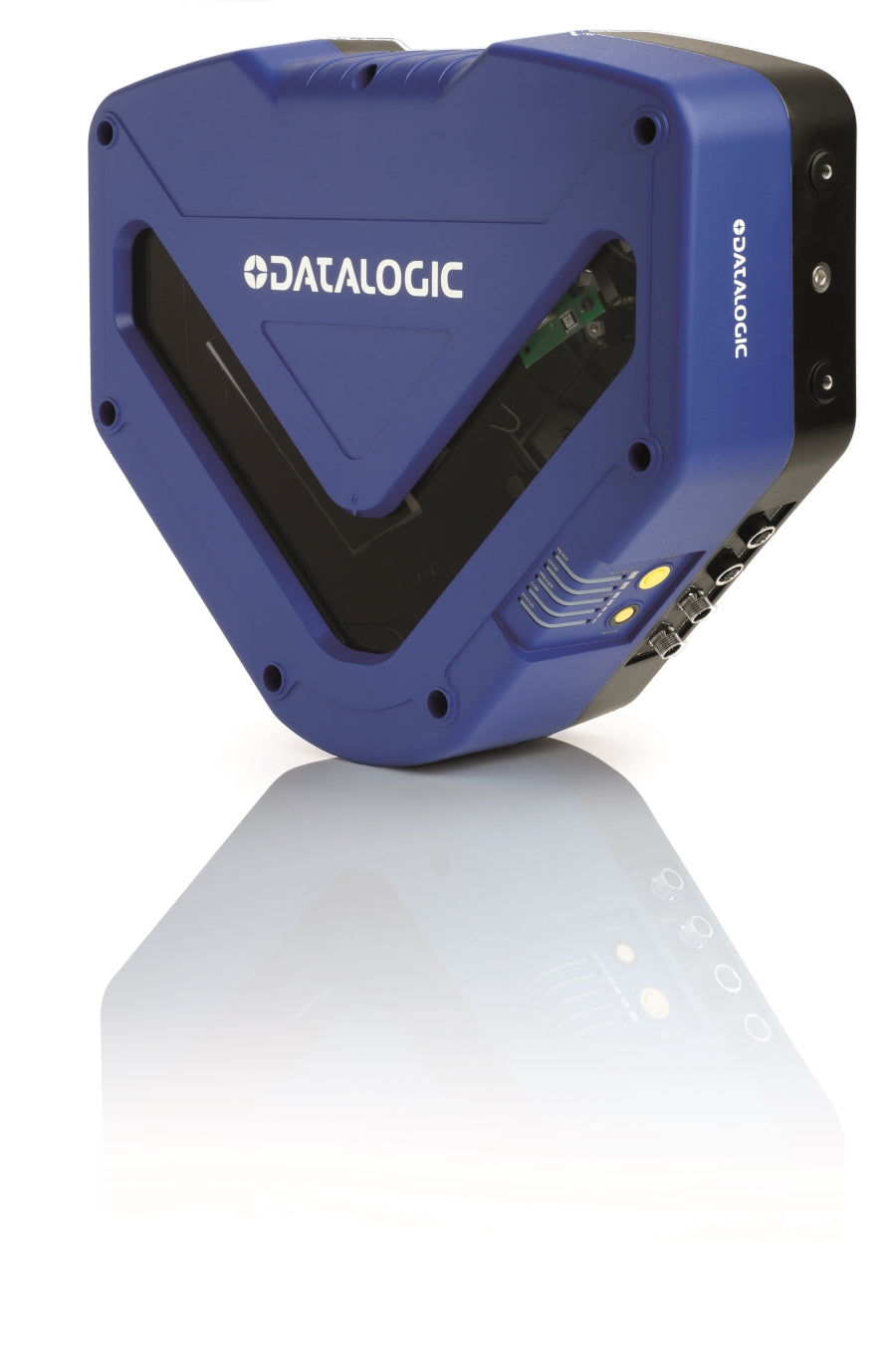

Datalogic DX8210
Laser Barcode Reader

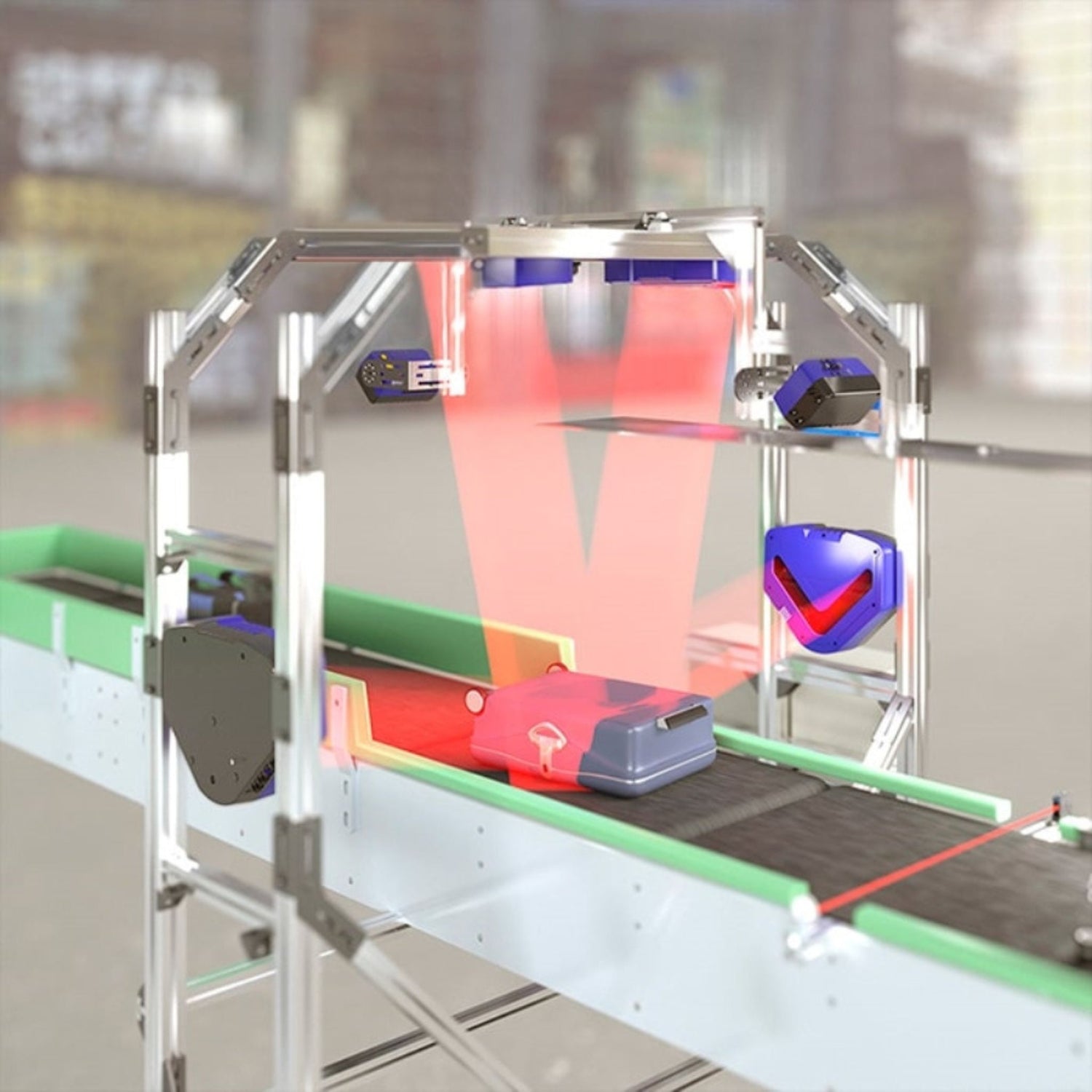

DX8210 is Datalogic’s new high-performance laser bar code reader purpose-built to offer top reading performance combined and ease of use to End User and System Integrators specialized in the Transport and Logistics market. Thanks to its unique design, DX8210 offers an ALL-IN-ONE solution for omnidirectional reading stations. This single device is capable of reading codes at any orientation on the conveyor. With the benefits of state-of-the-art technology and innovative optic design, DX8210 can cover a wide conveyor and large depth of field to satisfy demanding applications. A high scan rate (2000 scans/sec) allows DX8210 to work perfectly on high-speed conveyors for mass production.
HIGHLIGHTS
• ALL-IN-ONE architecture offering outstanding ease of use and ease of installation
• Single device offering 900x900 mm (36x36 in) omnidirectional reading area
• High scan rate (2000 scans/sec) provides top results on high-speed conveyors and in mass production environments
• Excellent performance on low-quality code and unpredictable reading conditions
• Unmatchable ease of use and ease of installation
• DST (Digital Signal Technology) offering stable and constant performance under any operative conditions
• ASTRA G3 technology offering superior DoF and FoV without mechanical autofocus
• Ethernet Bus Connections (EBC) for high-speed data transmission and real-time synchronization
• Fully redundant configuration and no single point of failure
• Ease of maintenance and automatic replacement
Specifications
Reading Distance- (Min/Max) 600-1850 mm (23-72 in)
Max Resolution- Min:0.25mm (10mils)/Max: 1.0mm (40mils)
Scan Rate- Typ: 1000scans/s/ Max
Scan Pattern- Type- X-Pattern
Aperture Angle- 60 degrees
Multilabel Reading- Up to 10 different symbologies during the same reading phase
Optic Architecture/Technology- ASTRA G3
Bar Code Assignment Technology- PackTrack™ G2
Reconstruction Code Technology- ACR G5
Readable Codes- 22 symbologies including 2/5 family, Code39,Code93,Code128,EAN/UPC,EAN128,ISBN128
Case Material- Aluminum alloy
Dimensions- (Typical Value) 381 x 328 x 92.5 mm [15 x 13 x 3.6 in]
Weight- 7.7 kg (17 lb)
Temperature Range- 0° - 50° C
Power Supply / Consumption- 20 to 30 VDC; 20 W
IP rating- IP65
Ethernet- 2 x Ethernet TCP/IP
Serial Interfaces- Main Port: RS232 / RS422 up to 115.2 Kbit/s Auxiliary Port: RS232 up to 115.2 Kbit/s
Internal Communication System- EBC Technology
Fieldbus- Embedded EtherNet/IP; PROFINET-IO and PROFIBUS-DP supported
Digital Inputs- 3 x Inputs (2 + 1 x “Encoder”), optocoupled, NPN/PNP
Digital Outputs- 2 x Outputs SW programmable, optocoupled, event-driven, NPN
Device Programming- Multilanguage, browser-based, onboard HTML web server interface
